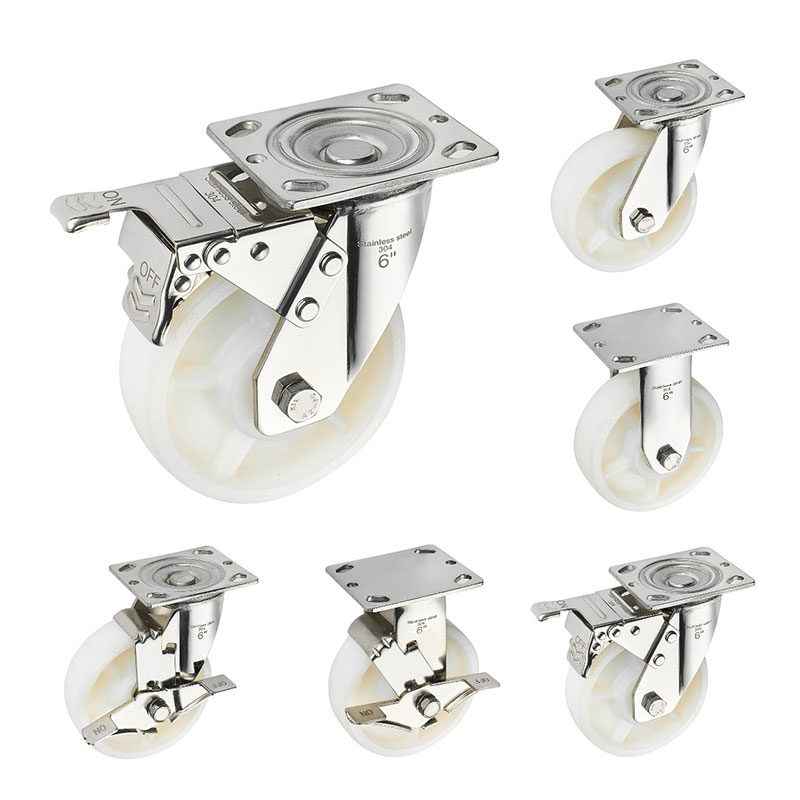

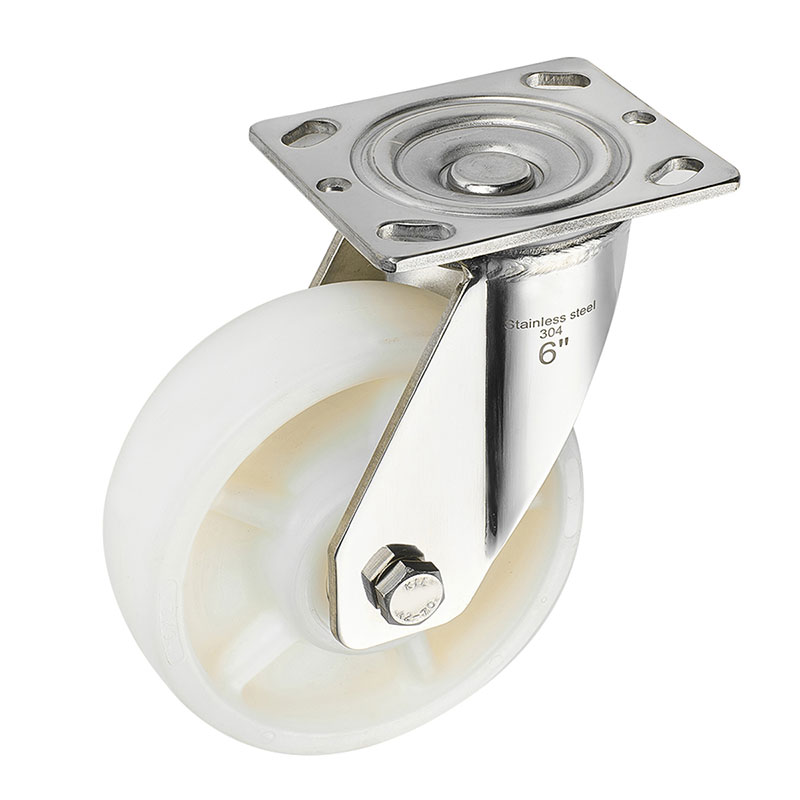

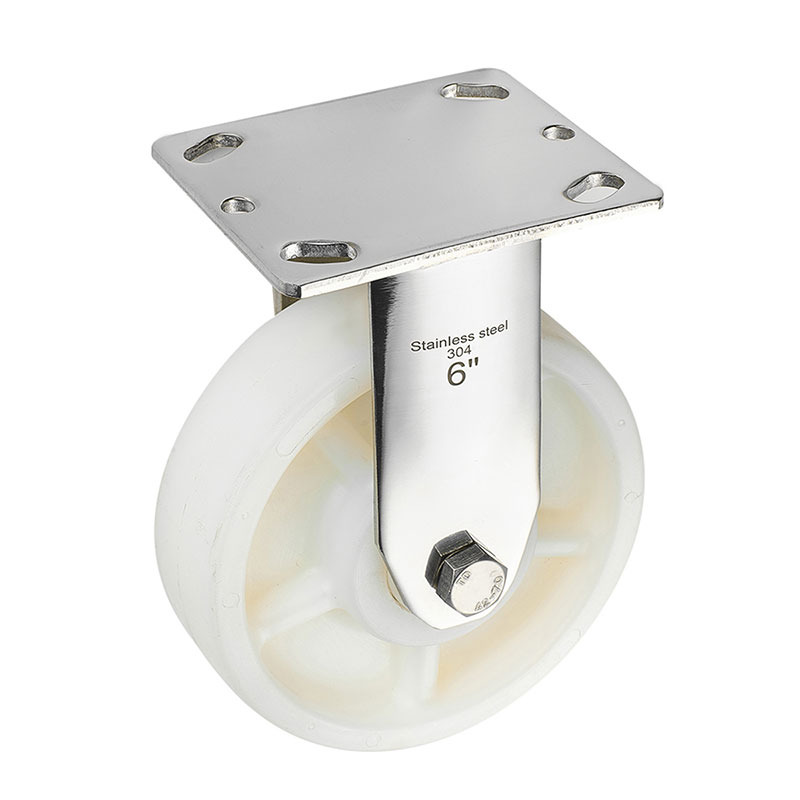

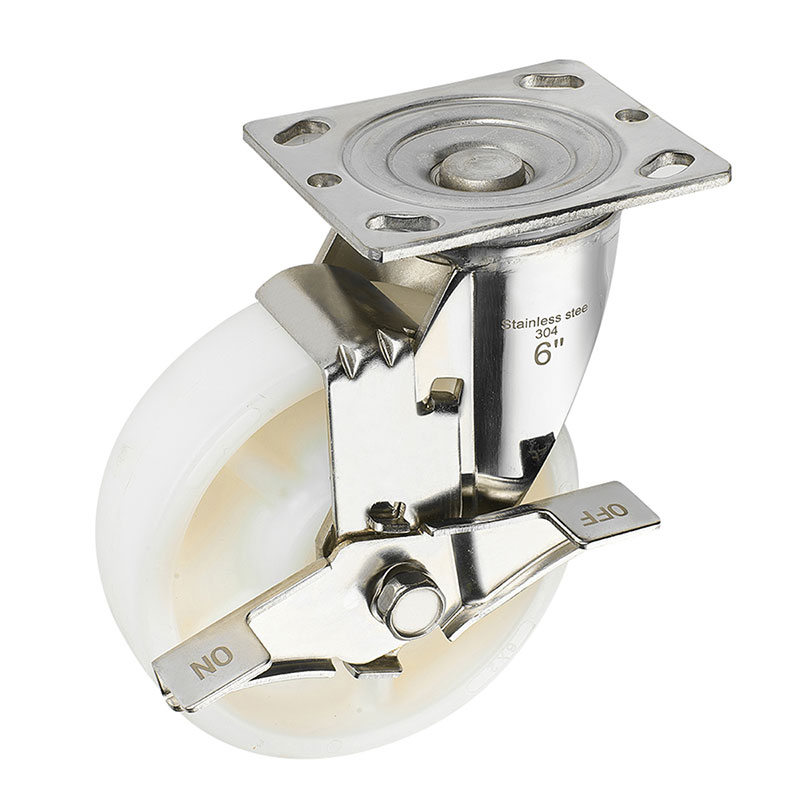

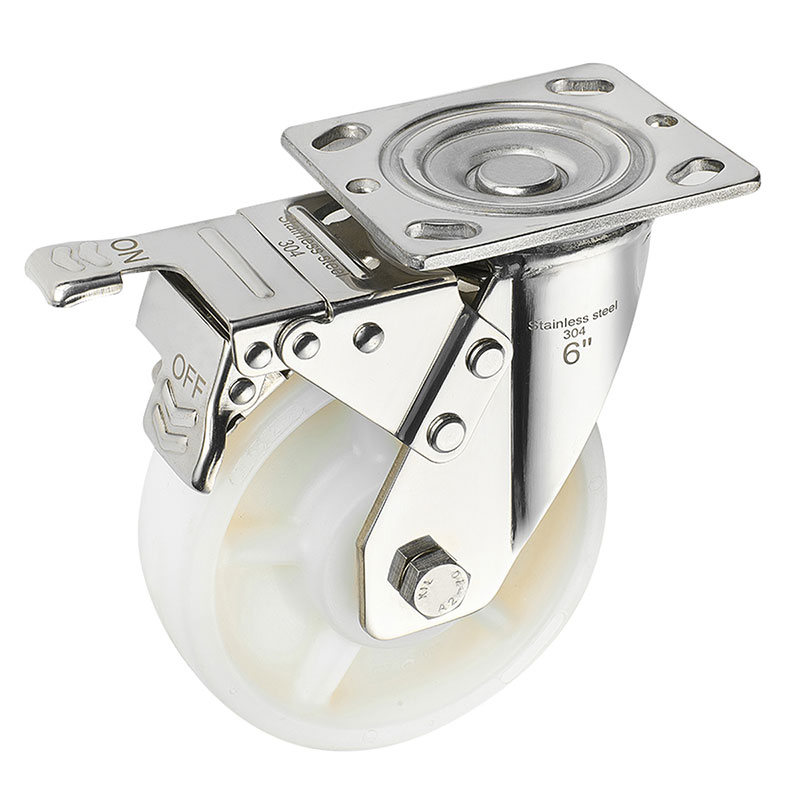

SUS304 Heavy Casters Polyamide Wheels

Style: Swivel / Rigid / Swivel with Brake
Size Options: 4 inch 5 inch 6 inch and 8 inch
Load Capicity: 300kg / 350kg / 400kg and 450kg

Product Origin: Guangdong, China ;
MOQ: 100 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

Manufactured from Type 304 stainless steel, this series provides critical defense to applications exposed to washdowns, cleaning agents, steam, caustic solutions, and other environmental conditions that eventually cause oxidation and failure in standard casters. Polyamide wheels are highly valued in many industries due to their versatile properties and advantages over other materials, such as High Load Capacity, Low Rolling Resistance, Chemical Resistance, Low Weight.

Technical Specifications for SUS304 Heavy Casters Polyamide Wheels

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	300
	5"	125x45	165	113x100	84x71	350
	6"	150x45	192	113x100	84x71	400
	8"	200x45	242	113x100	84x71	450

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	300
	5"	125x45	165	113x100	84x71	350
	6"	150x45	192	113x100	84x71	400
	8"	200x45	242	113x100	84x71	450

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	300
	5"	125x45	165	113x100	84x71	350
	6"	150x45	192	113x100	84x71	400
	8"	200x45	242	113x100	84x71	450

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	300
	5"	125x45	165	113x100	84x71	350
	6"	150x45	192	113x100	84x71	400
	8"	200x45	242	113x100	84x71	450
