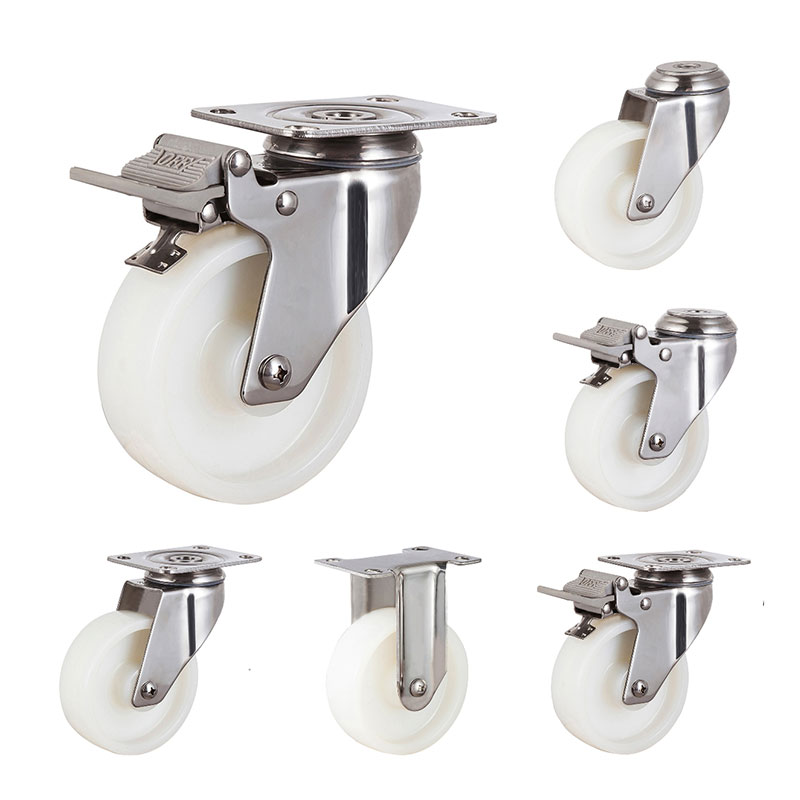

SUS304 Medium Duty Medical Casters PA

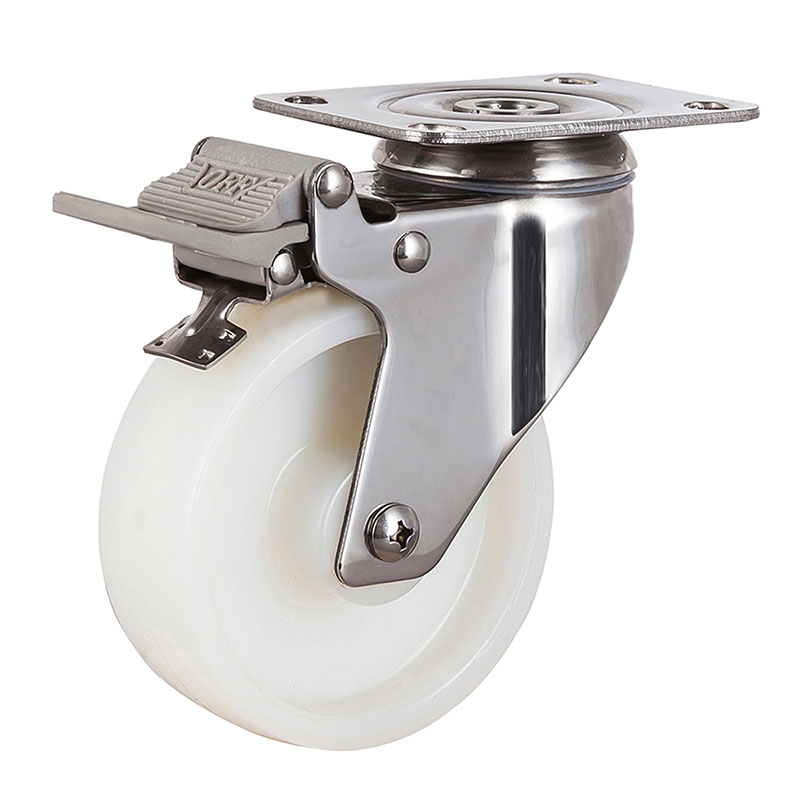

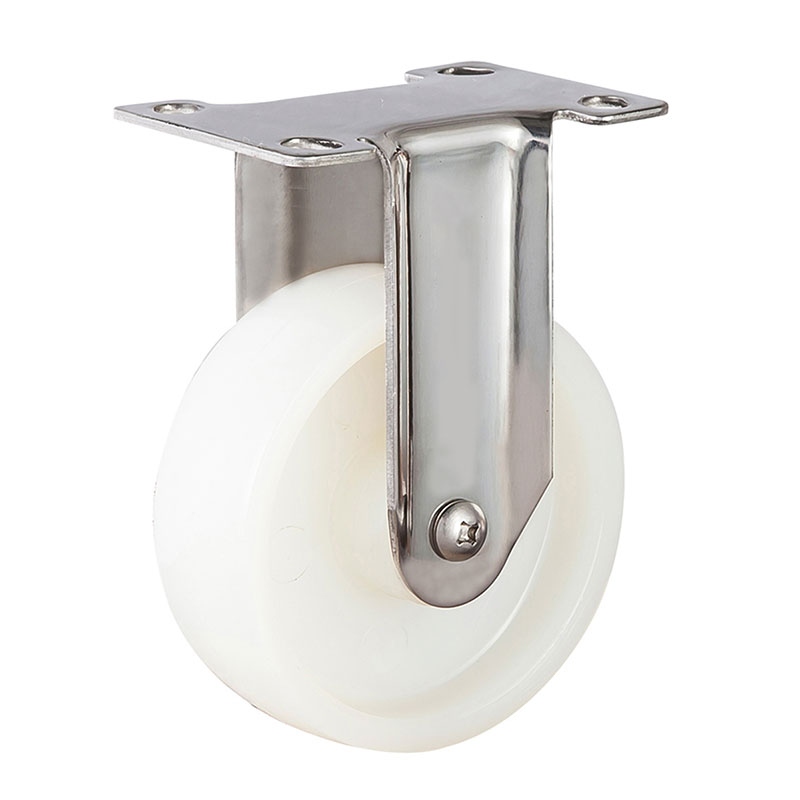

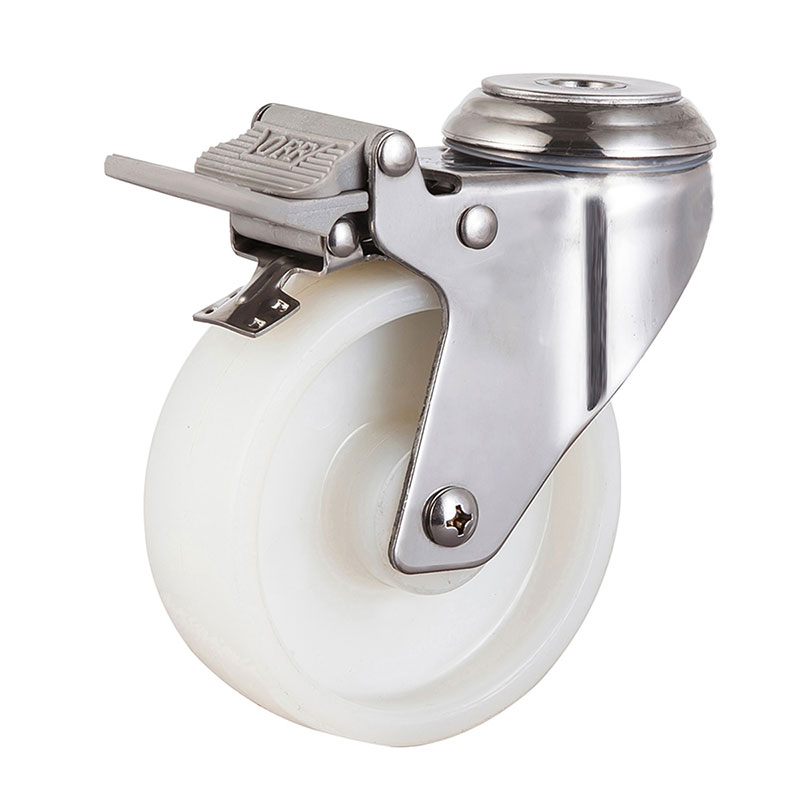

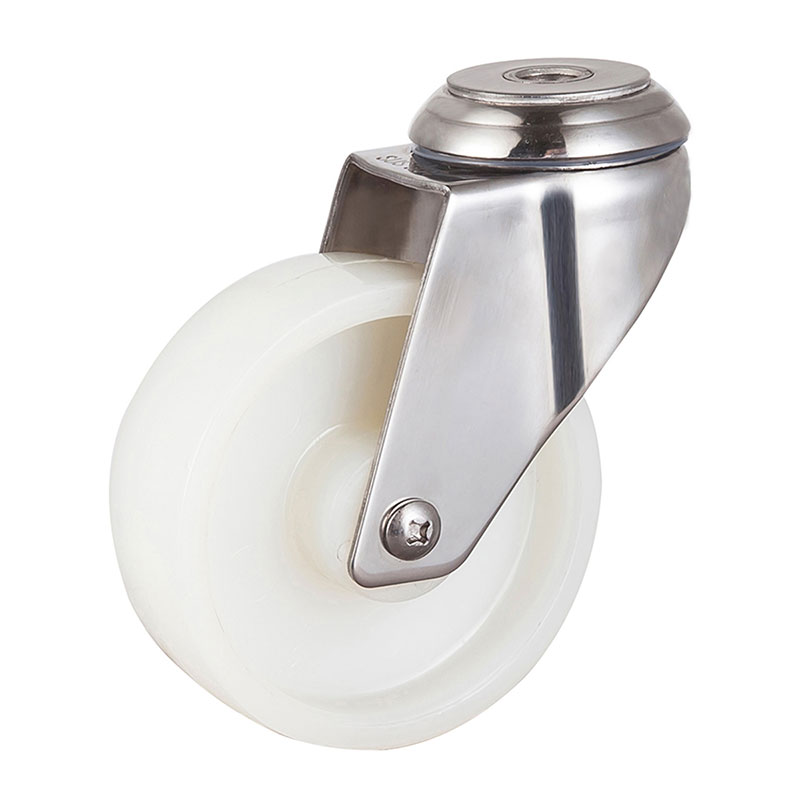

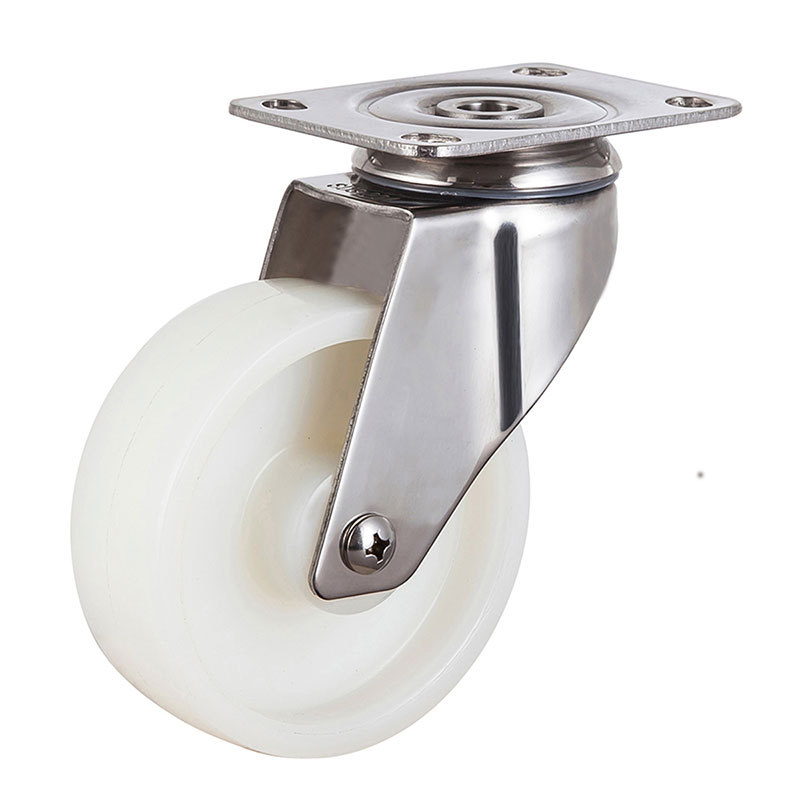

Style: Swivel / Rigid / Swivel with Brake / Threaded Stem swivel / Threaded Stem with brake
Size Options: 2.5 inch 3 inch 4 inch and 5 inch
Load Capicity: 70kg / 80kg / 110kg and 130kg

Product Origin: Guangdong, China;
MOQ: 200 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

Over the years, thanks to the support and love of new and old customers at home and abroad, our products are exported to Europe and America, Southeast Asia and other dozens and regions, creating a good corporate image and reputation.

Technical Specifications for SUS304 Medium Duty Medical Casters PA

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	95	95x70	75/72x52/45	70
	3"	75x32	113	95x70	75/72x52/45	80
	4"	100x32	137	95x70	75/72x52/45	110
	5"	125x32	163	95x70	75/72x52/45	130

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	95	95x70	75/72x52/45	70
	3"	75x32	113	95x70	75/72x52/45	80
	4"	100x32	137	95x70	75/72x52/45	110
	5"	125x32	163	95x70	75/72x52/45	130

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	95	95x70	75/72x52/45	70
	3"	75x32	113	95x70	75/72x52/45	80
	4"	100x32	137	95x70	75/72x52/45	110
	5"	125x32	163	95x70	75/72x52/45	130

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	95	M12x30	70
	3"	75x32	113	M12x30	80
	4"	100x32	137	M12x30	110
	5"	125x32	163	M12x30	130

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	95	M12x30	70
	3"	75x32	113	M12x30	80
	4"	100x32	137	M12x30	110
	5"	125x32	163	M12x30	130

Raw Materials + Molds + Stamping

Assembly Workshop

Warehouse

Laboratory
