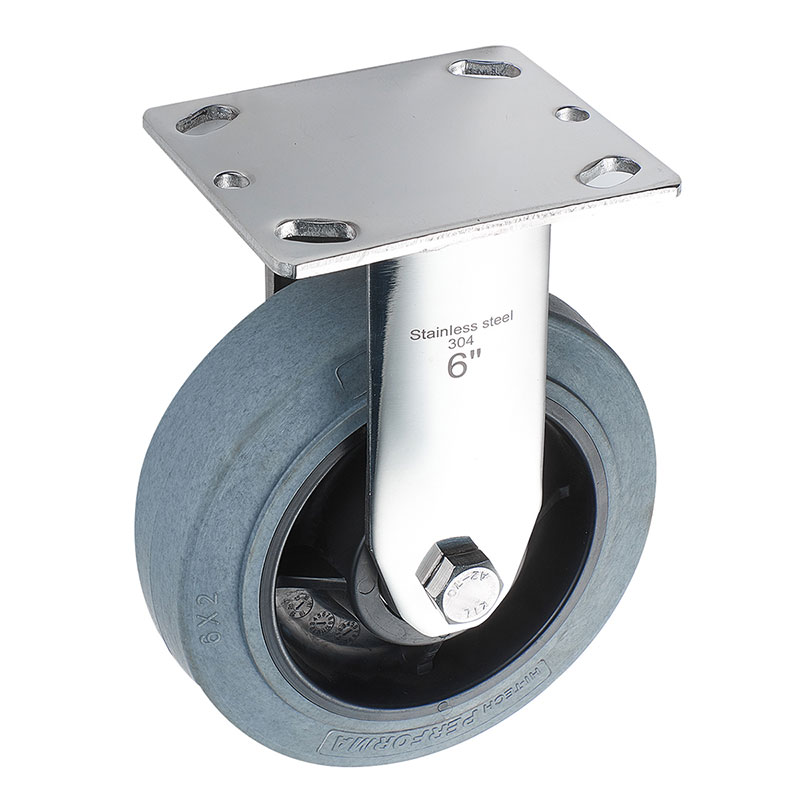

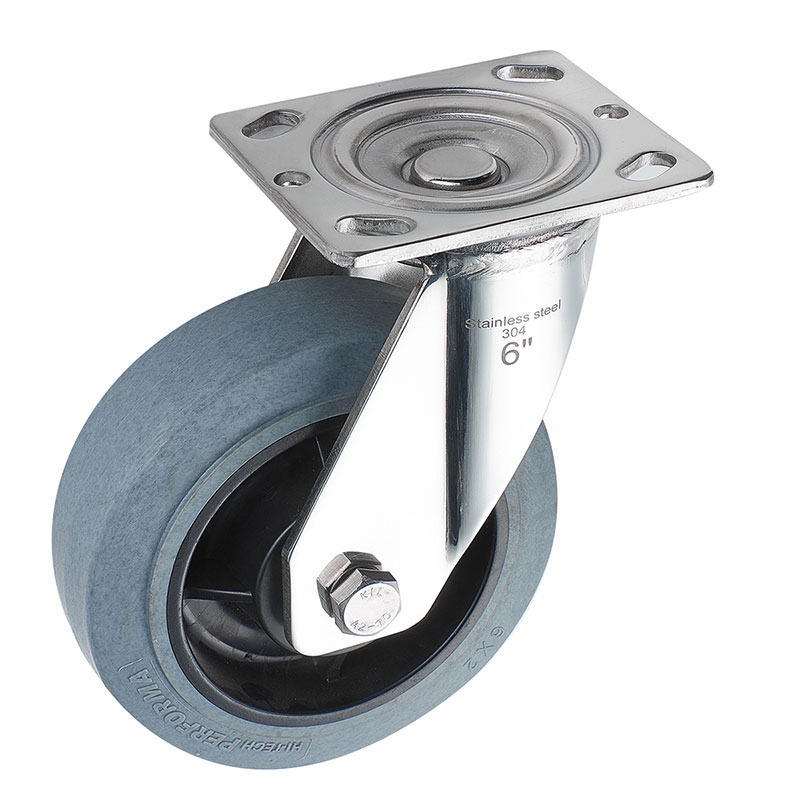

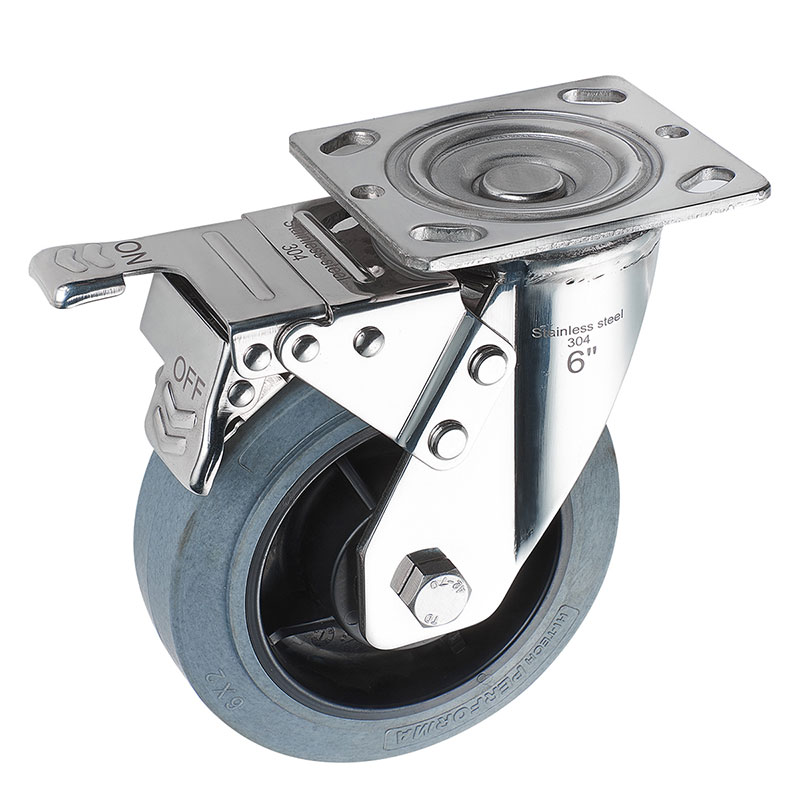

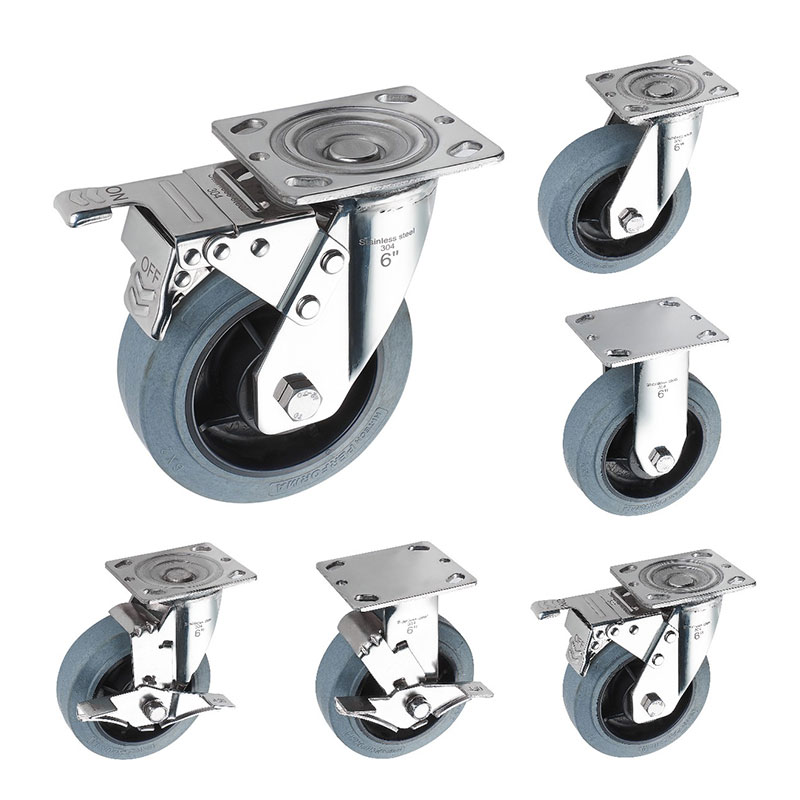

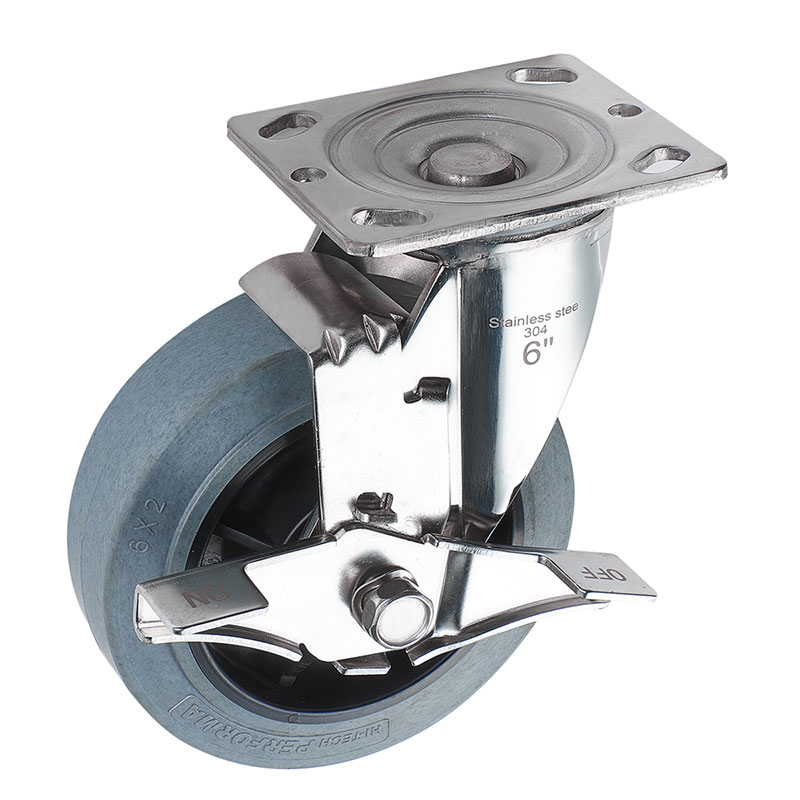

SUS304 Heavy Duty Casters TPR Conductive

Style: Swivel / Rigid / Swivel with Brake
Size Options: 4 inch 5 inch 6 inch and 8 inch
Load Capicity: 200kg / 250kg / 280kg and 300kg

Product Origin: Guangdong, China;
MOQ: 100 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

Manufactured from Type 304 stainless steel, this series provides critical defense to applications exposed to washdowns, cleaning agents, steam, caustic solutions, and other environmental conditions that eventually cause oxidation and failure in standard casters. Many computer manufacturers and electronics companies require conductive wheels on assembly carts to eliminate static build-up and discharge. These models combine a soft cushion ride with a nonmarking tread design.

Technical Specifications for SUS304 Heavy Duty Casters TPR Conductive

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300
