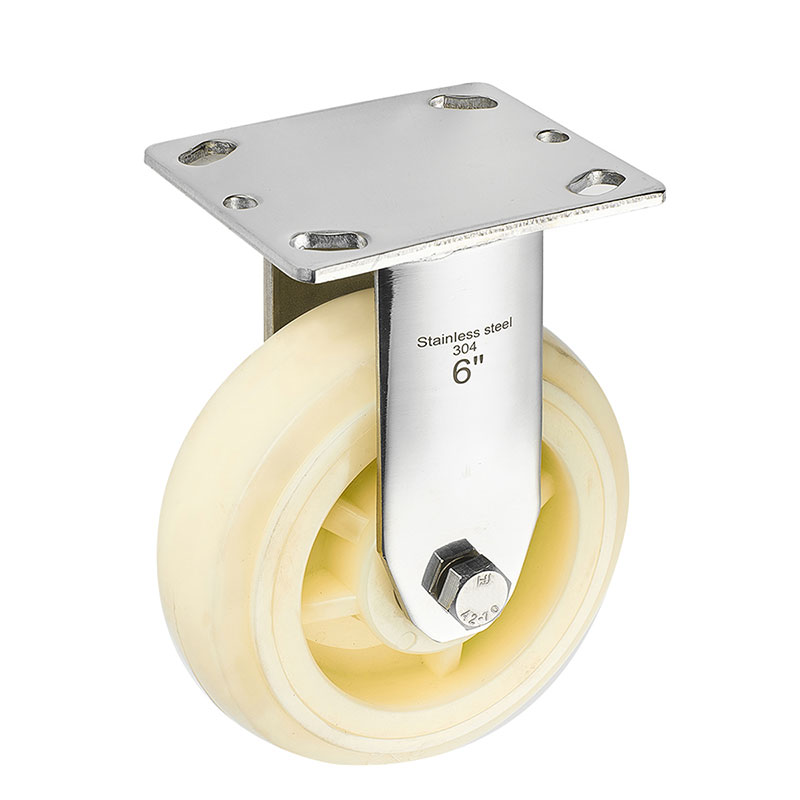

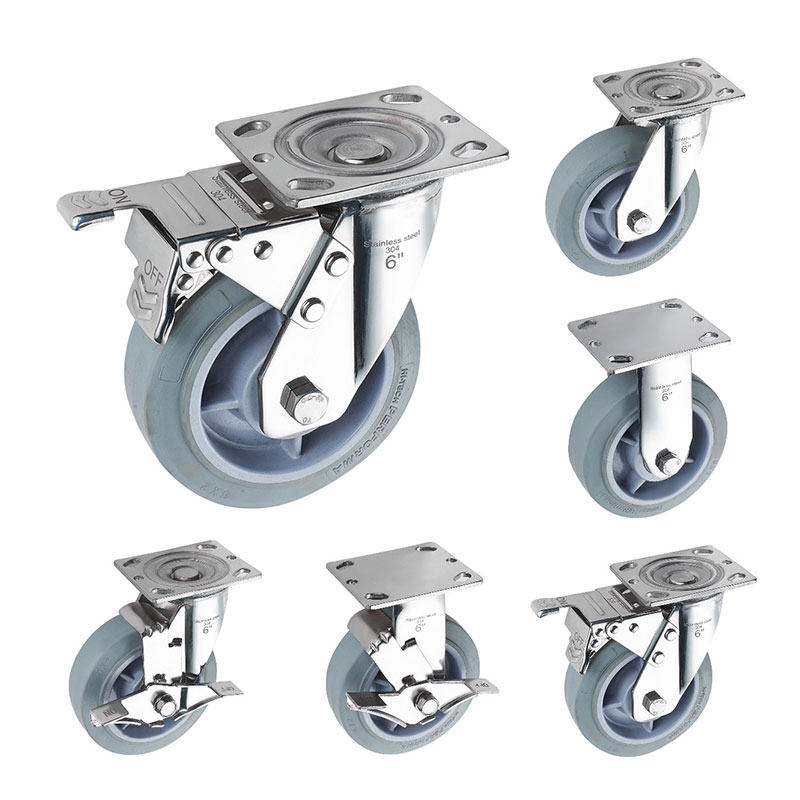

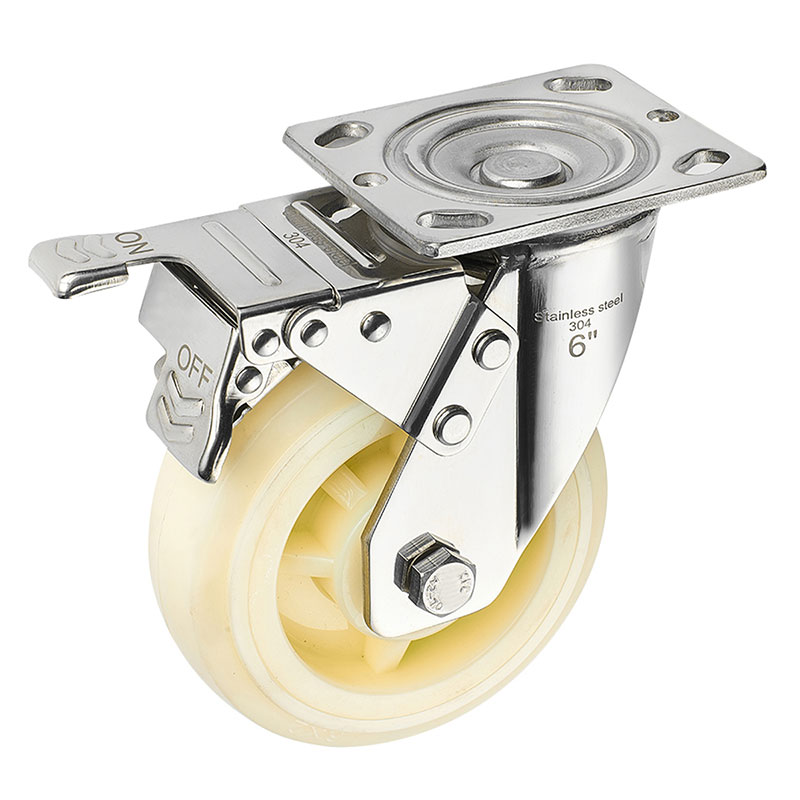

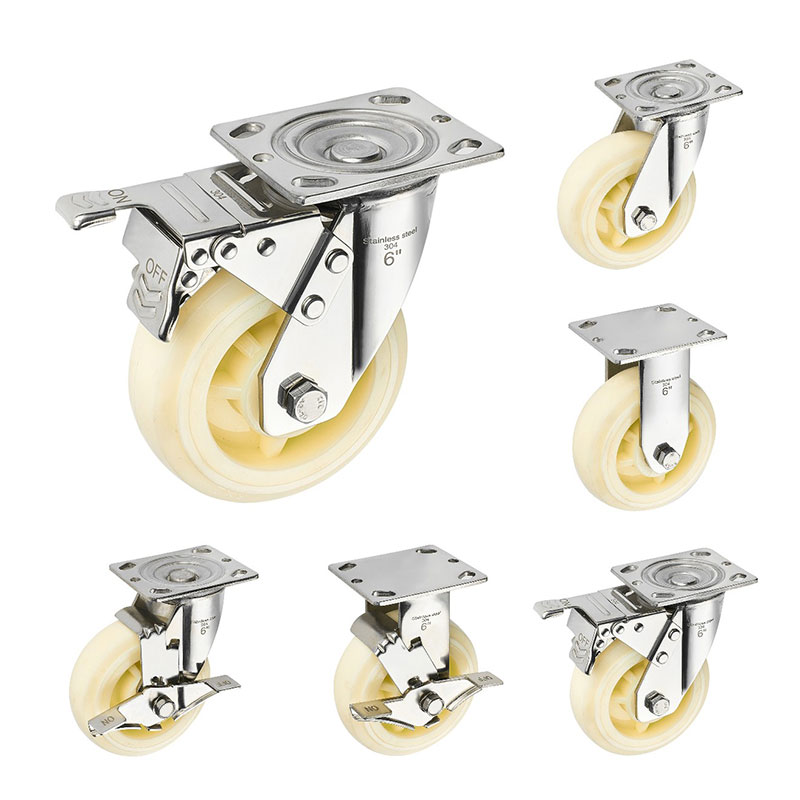

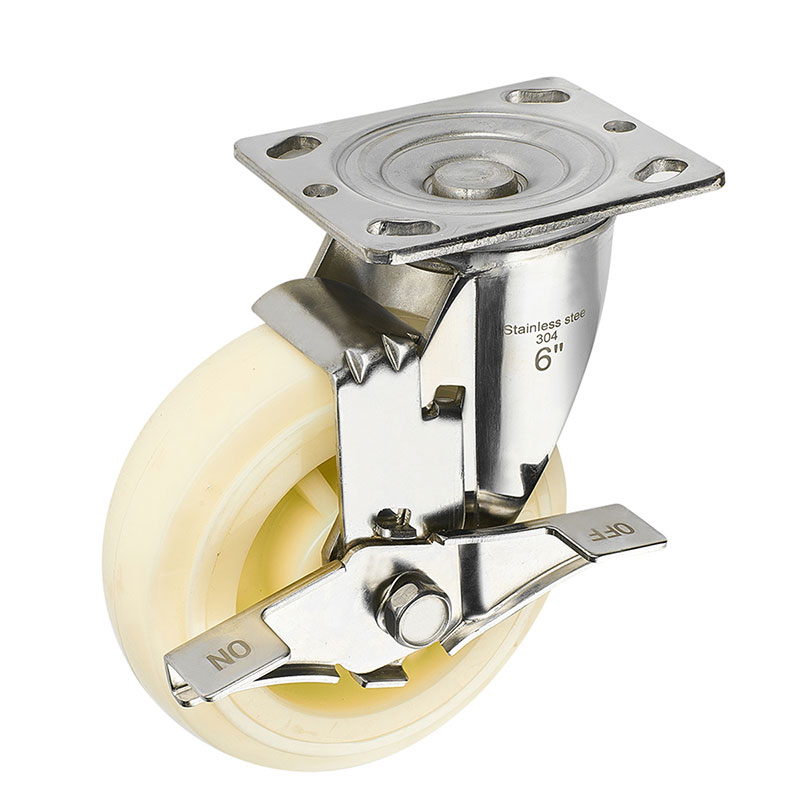

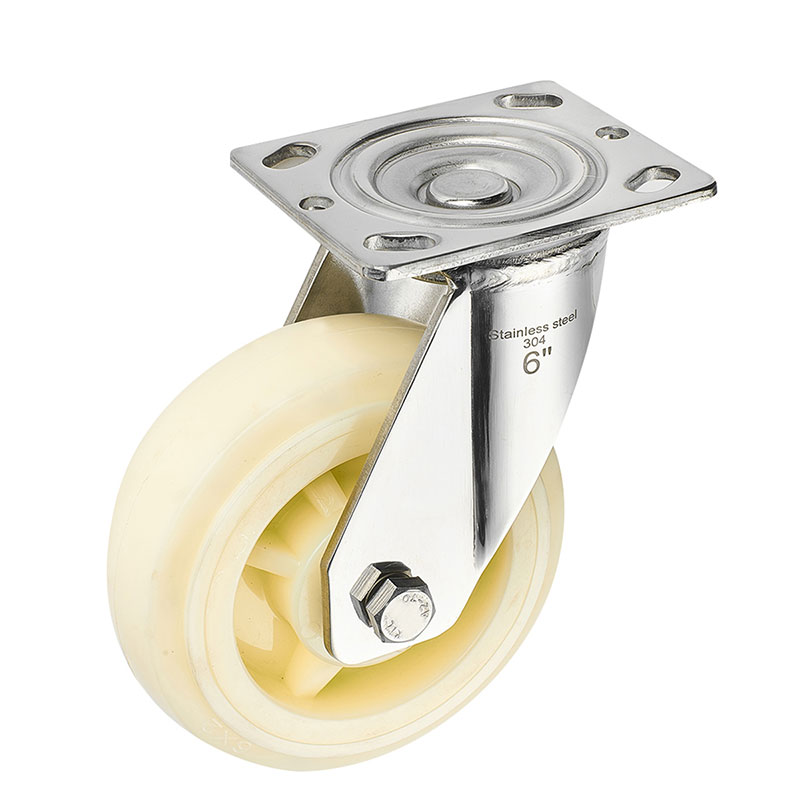

SUS304 Heavy Duty Casters Nylon Wheels

Style: Swivel / Rigid / Swivel with Brake

Size Options: 4 inch 5 inch 6 inch and 8 inch

Single Wheel Material：Nylon

Surface Treatment of Bracket：SUS304

Load Capicity: 200kg / 250kg / 280kg and 300kg

Product Origin: Guangdong, China;
MOQ: 100 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

The implementation of a full range of quality management strategy to ensure product quality, the whole process of quality testing and tracking, do not let go of any small details, so that your choice of reassurance more at ease.

Technical Specifications for SUS304 Heavy Duty Casters Nylon Wheels

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	4"	100x45	145	113x100	84x71	200
	5"	125x45	165	113x100	84x71	250
	6"	150x45	192	113x100	84x71	280
	8"	200x45	242	113x100	84x71	300
