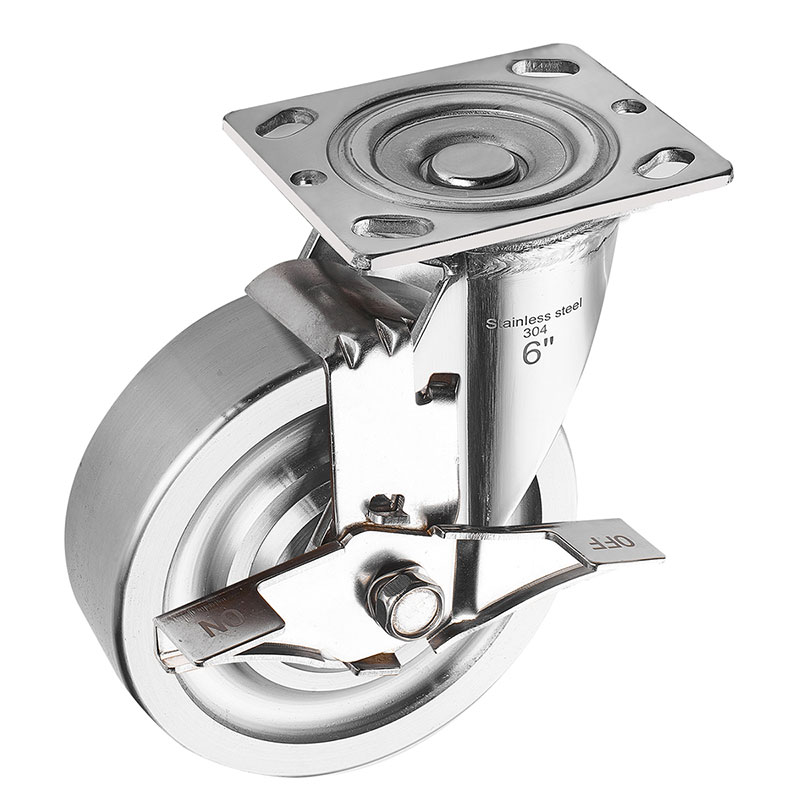

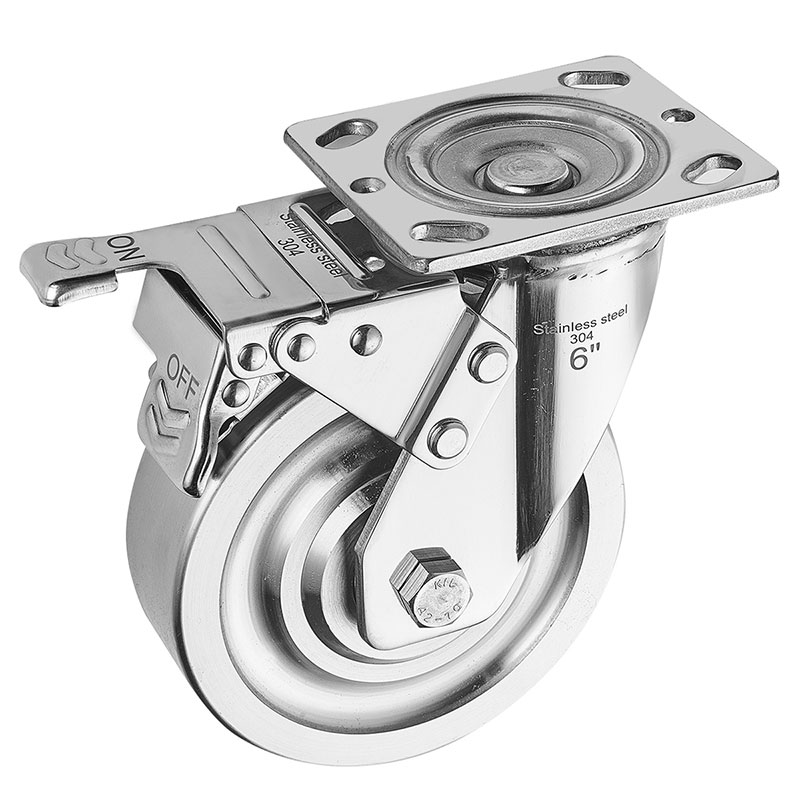

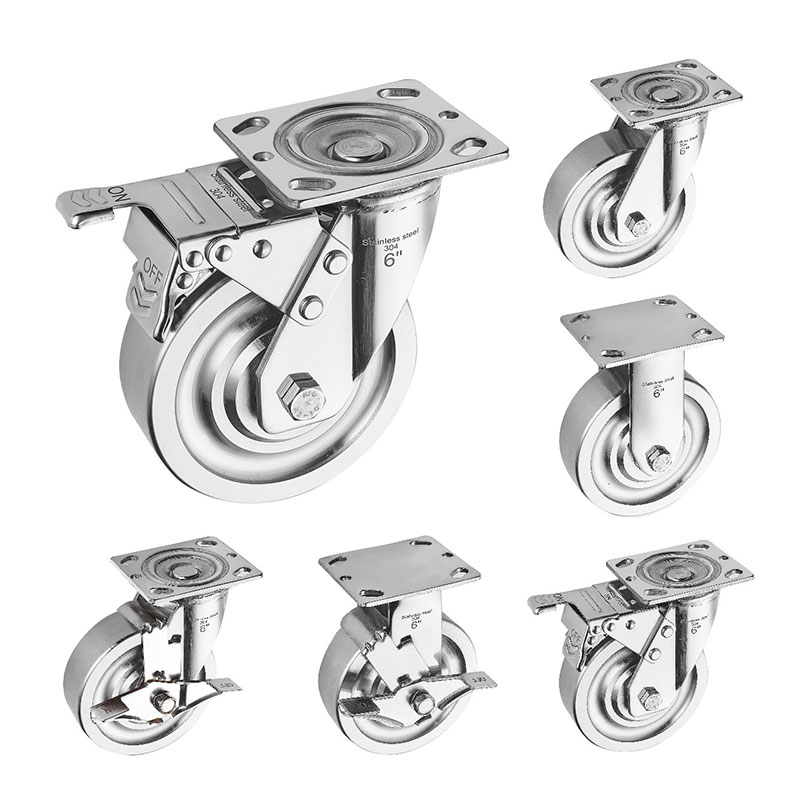

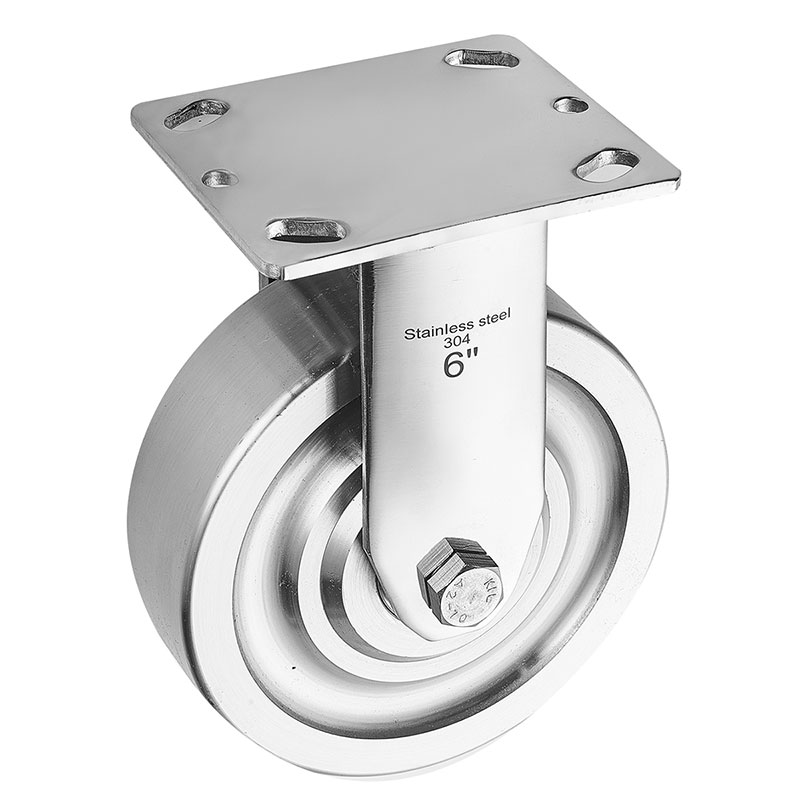

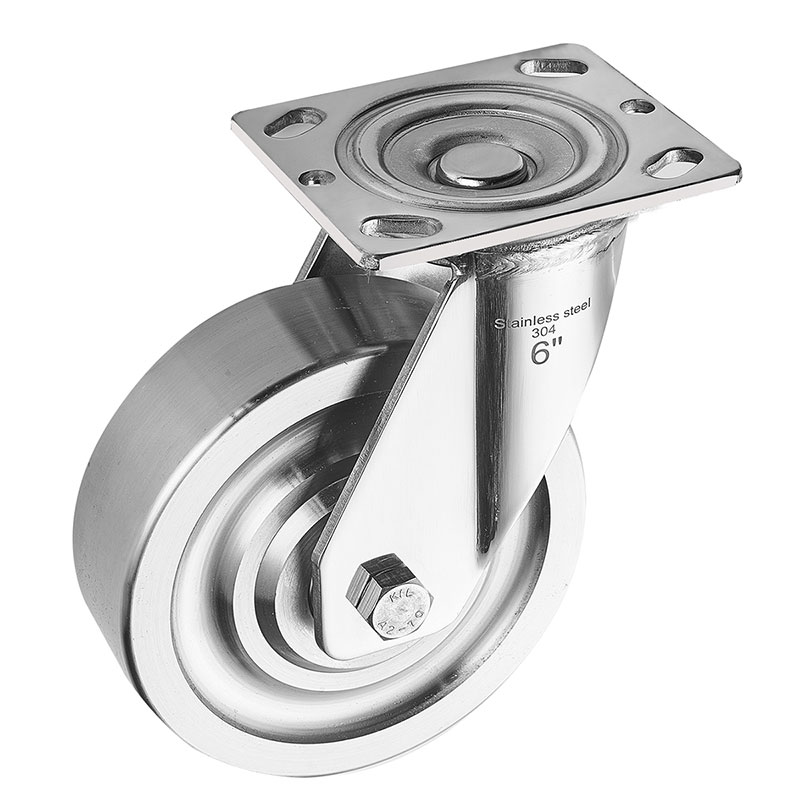

Style: Swivel / Rigid / Swivel with Brake
Size Options: 4 inch 5 inch 6 inch and 8 inch
Load Capicity: 300kg / 350kg / 400kg and 450kg
Product Origin: Guangdong, China;
MOQ: 100 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days
Manufactured from Type 304 stainless steel, this series provides critical defense to applications exposed to washdowns, cleaning agents, steam, caustic solutions, and other environmental conditions that eventually cause oxidation and failure in standard casters. 304 stainless steel wheels feature a standard operating temperature range from -196℃/-320°F (continuous service) to +800℃/1472°F (intermittent service, +900℃/1652°F continuous service).
|
Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 4" | 100x45 | 145 | 113x100 | 84x71 | 300 | |
| 5" | 125x45 | 165 | 113x100 | 84x71 | 350 | |
| 6" | 150x45 | 192 | 113x100 | 84x71 | 400 | |
| 8" | 200x45 | 242 | 113x100 | 84x71 | 450 |
|
Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 4" | 100x45 | 145 | 113x100 | 84x71 | 300 | |
| 5" | 125x45 | 165 | 113x100 | 84x71 | 350 | |
| 6" | 150x45 | 192 | 113x100 | 84x71 | 400 | |
| 8" | 200x45 | 242 | 113x100 | 84x71 | 450 |
|
Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 4" | 100x45 | 145 | 113x100 | 84x71 | 300 | |
| 5" | 125x45 | 165 | 113x100 | 84x71 | 350 | |
| 6" | 150x45 | 192 | 113x100 | 84x71 | 400 | |
| 8" | 200x45 | 242 | 113x100 | 84x71 | 450 |
|
Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 4" | 100x45 | 145 | 113x100 | 84x71 | 300 | |
| 5" | 125x45 | 165 | 113x100 | 84x71 | 350 | |
| 6" | 150x45 | 192 | 113x100 | 84x71 | 400 | |
| 8" | 200x45 | 242 | 113x100 | 84x71 | 450 |
