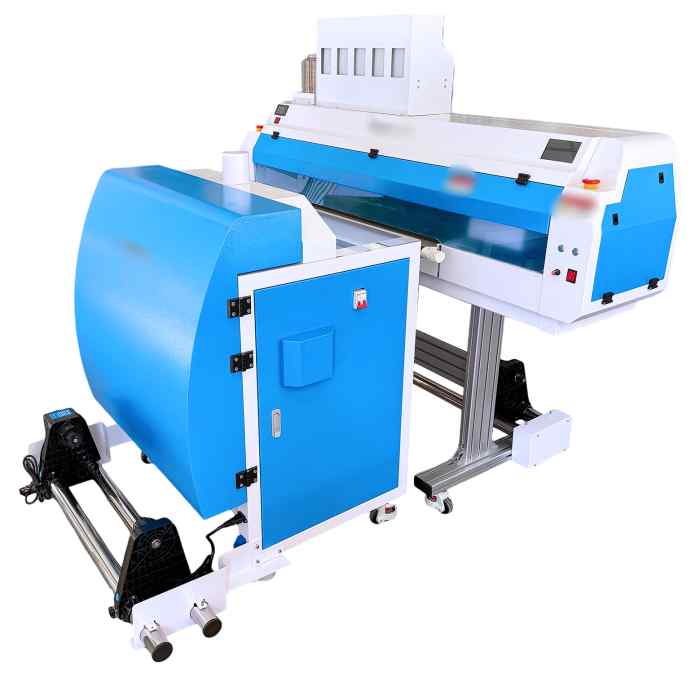

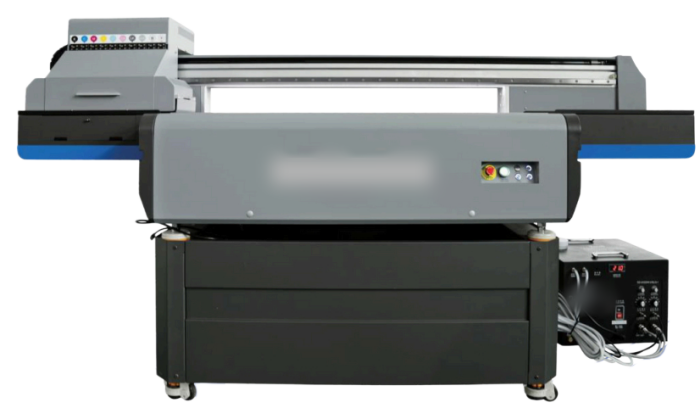

Printing accuracy depends on more than advanced printheads and control systems. For inkjet printers, multifunction copiers and industrial printing machines, equipment stability plays an equally important role. Even slight movement or vibration during operation can affect print alignment, image quality and production efficiency.
To solve these challenges, many equipment manufacturers are replacing conventional casters with a adjustable Leveling Caster Wheels. Unlike standard caster wheels, leveling casters allow equipment to be moved easily during installation and then securely fixed in place once positioned. This combination of mobility and stability makes them an ideal solution for modern printing equipment used in offices, commercial print shops and industrial production lines.
As a professional CMCL® leveling casters manufacturer in Guangdong, China, CMCL provides a complete range of swivel leveling casters with load capacities from 50 kg to 1,500 kg per caster, helping printer manufacturers, OEMs and equipment integrators select the right mobility solution for virtually every type of printing machine.
Many printing systems operate at high speeds and require precise positioning throughout long production cycles. While standard swivel casters make equipment easy to move, they cannot prevent slight rolling or vibration once the machine is in use.
A swivel leveling caster combines a caster wheel with an adjustable leveling foot. After the equipment is moved into position, the leveling foot is lowered to lift the wheel slightly off the floor, transferring the machine's weight to a stable support pad. This design offers several important advantages:
For printing equipment installed on epoxy, concrete or tiled floors, leveling casters also help distribute loads more evenly, reducing stress on the machine frame and supporting long-term operating accuracy.

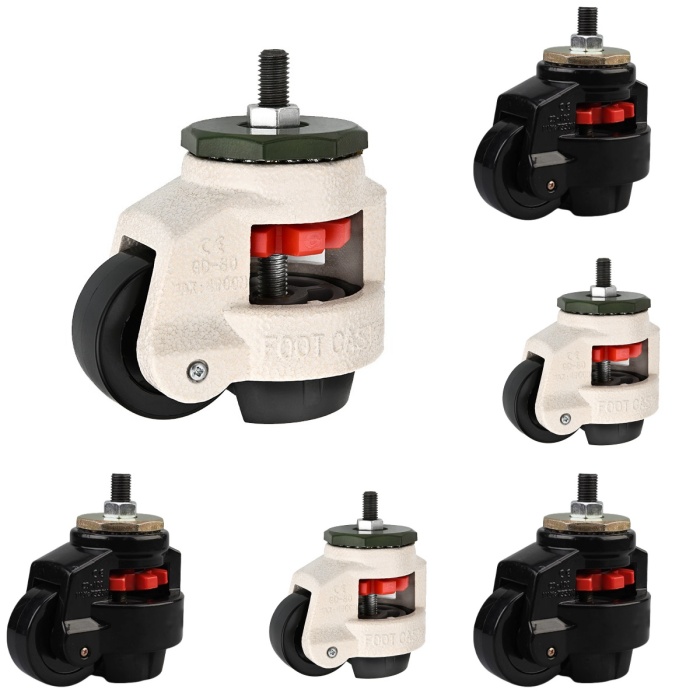

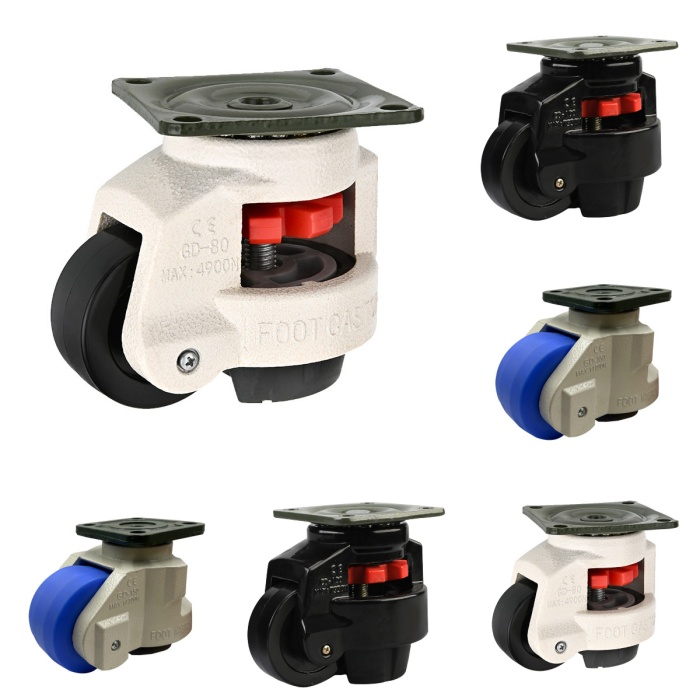

CMCL swivel leveling casters feature a carbon steel housing combined with high-strength Nylon 6 wheels, providing excellent wear resistance, smooth rolling performance and reliable load-bearing capacity. The wheels are suitable for office floors, epoxy-coated workshops and other common industrial flooring without leaving marks under normal operating conditions.
To accommodate different types of printing equipment, CMCL offers six load grades.
| Size | Dia x Width (mm) | Load Height (mm) | Plate Size (mm) | Hole Spacing (mm) | Load capacity (kg) |
|---|---|---|---|---|---|
| 40F | 38x19 | 70 | 55x55 | 42x42 | 50 |
| 60F | 50x25 | 82 | 73x73 | 58x58 | 250 |
| 80F | 60x26 | 102 | 90x90 | 70x70 | 500 |
| 100F | 75x29 | 120 | 95x95 | 70x70 | 750 |
| 120F | 75x29 | 120 | 95x95 | 70x70 | 1000 |
| 150F | 94x54 | 135 | 100x100 | 70x70 | 1500 |
Across the entire series, the swivel design allows equipment to be positioned with minimal effort, while the retractable leveling foot securely locks the machine in place once installation is complete.
For machines with uneven weight distribution or concentrated loads, CMCL's engineering team recommends selecting the next higher load rating to improve safety and service life.
As an experienced CMCL® industrial caster manufacturer, we supply swivel leveling casters for office equipment manufacturers, commercial printing machine builders and industrial automation companies worldwide.
In addition to standard models, CMCL supports OEM and customized solutions, including:
Choosing the right leveling caster is an important step toward improving printing accuracy, equipment stability and long-term operating reliability. By selecting the appropriate load capacity and wheel size, manufacturers can reduce vibration, prevent unwanted machine movement and simplify future maintenance.
With load capacities ranging from 50 kg to 1,500 kg, CMCL® swivel leveling casters provide reliable mobility and secure positioning for applications ranging from compact office copiers to large industrial printing systems. Backed by manufacturing expertise and OEM customization capabilities, CMCL® caster solutions help equipment manufacturers build safer, more stable and more efficient printing machines.
