Manufacturer & factory: CMCL® Casters

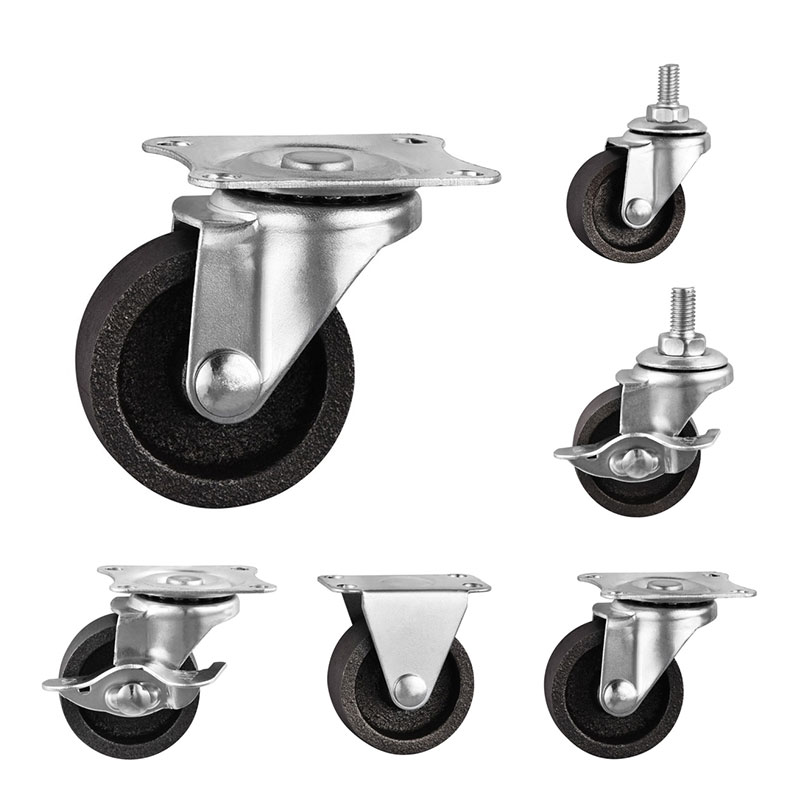

Style: Swivel / Rigid / Swivel with Brake
Size Options: 1 inch/1.25 inch/1.5 inch/2 inch/2.5 inch/3 inch
Load Capacity: 5kg/8kg/20kg/30kg/40kg/50kg
Surface Treatment of Bracket：Galvanized,Salt Spray Test ≥24 Hours
Single Wheel Material： Polypropylene（PP）
Certifications:RoHS Certified
Product Origin: Guangdong, China;
MOQ: 2,000 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days
CMCL® has excellent quality and reasonable price, has been exported to nearly 60 countries, and has been welcomed and trusted by customers at home and abroad Welcome to contact us. If you are interested in our xx products, you can ask us now and we will get back to you promptly.
|

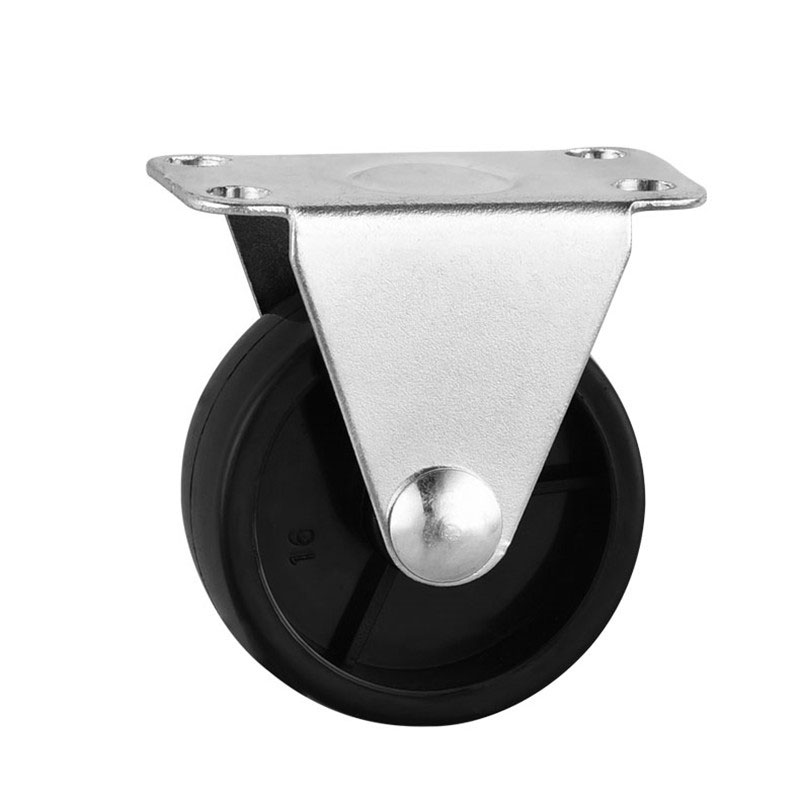

Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 1" | 25x13 | 34 | 37x20 | 29 | 5 | |
| 1.25" | 32x13 | 40 | 37x20 | 29 | 10 | |
| 1.5" | 40x17 | 50 | 46x28 | 36x15 | 20 | |
| 2" | 50x21 | 65 | 60x40 | 45x25 | 30 | |
| 2.5" | 65x27 | 83 | 70x47 | 55x28 | 40 | |
| 3" | 75x27 | 92 | 70x47 | 55x28 | 50 |
|

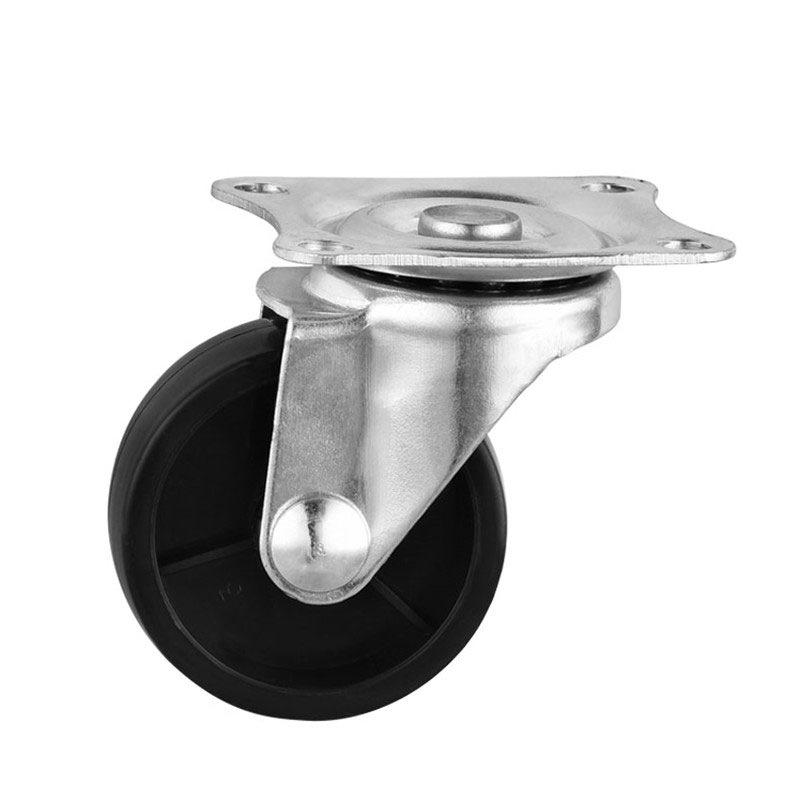

Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 1" | 25x13 | 34 | 38x32 | 30x24 | 5 | |
| 1.25" | 32x13 | 40 | 38x32 | 30x24 | 10 | |
| 1.5" | 40x17 | 50 | 46x38 | 36x28 | 20 | |
| 2" | 50x21 | 65 | 58x46 | 46x35 | 30 | |
| 2.5" | 65x27 | 83 | 70x58 | 55x42 | 40 | |
| 3" | 75x27 | 92 | 70x58 | 55x42 | 50 |
|
Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Hole Spacing (mm) |
Load capacity (kg) |
| 1" | 25x13 | 34 | 38x32 | 30x24 | 5 | |
| 1.25" | 32x13 | 40 | 38x32 | 30x24 | 10 | |
| 1.5" | 40x17 | 50 | 46x38 | 36x28 | 20 | |
| 2" | 50x21 | 65 | 58x46 | 46x35 | 30 | |
| 2.5" | 65x27 | 83 | 70x58 | 55x42 | 40 | |
| 3" | 75x27 | 92 | 70x58 | 55x42 | 50 |
|

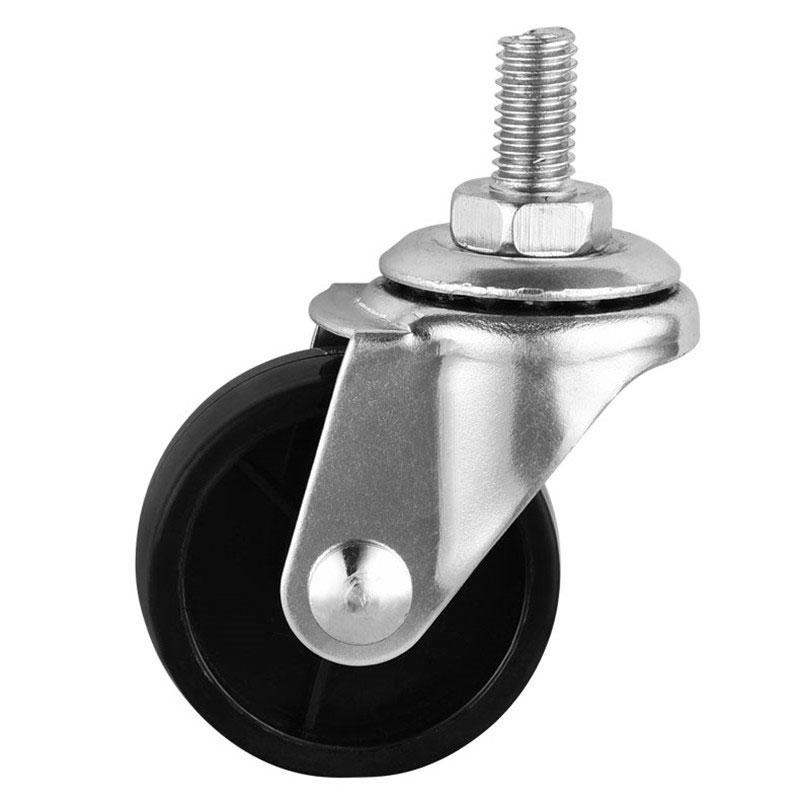

Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Load capacity (kg) |
| 1" | 25x13 | 42 | M8x15 | 5 | |
| 1.25" | 32x13 | 45 | M8x15 | 10 | |
| 1.5" | 40x17 | 55 | M8x15 | 20 | |
| 2" | 50x21 | 70 | M8/M10x15 | 30 | |
| 2.5" | 65x27 | 85 | M10/M12x25 | 40 | |
| 3" | 75x27 | 96 | M10/M12x25 | 50 |
|
Size |
Dia x Width (mm) |
Load Height (mm) |
Plate Size (mm) |
Load capacity (kg) |
| 1" | 25x13 | 42 | M8x15 | 5 | |
| 1.25" | 32x13 | 45 | M8x15 | 10 | |
| 1.5" | 40x17 | 55 | M8x15 | 20 | |
| 2" | 50x21 | 70 | M8/M10x15 | 30 | |
| 2.5" | 65x27 | 85 | M10/M12x25 | 40 | |
| 3" | 75x27 | 96 | M10/M12x25 | 50 |
