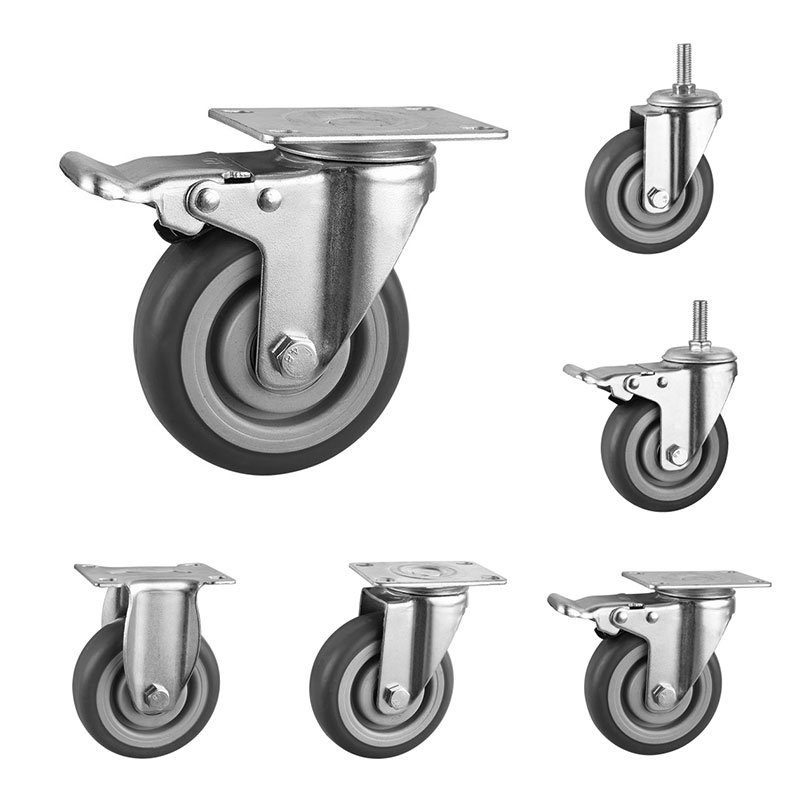

Medium Duty Casters TPR Round Tread

Manufacturer & factory: CMCL® Casters

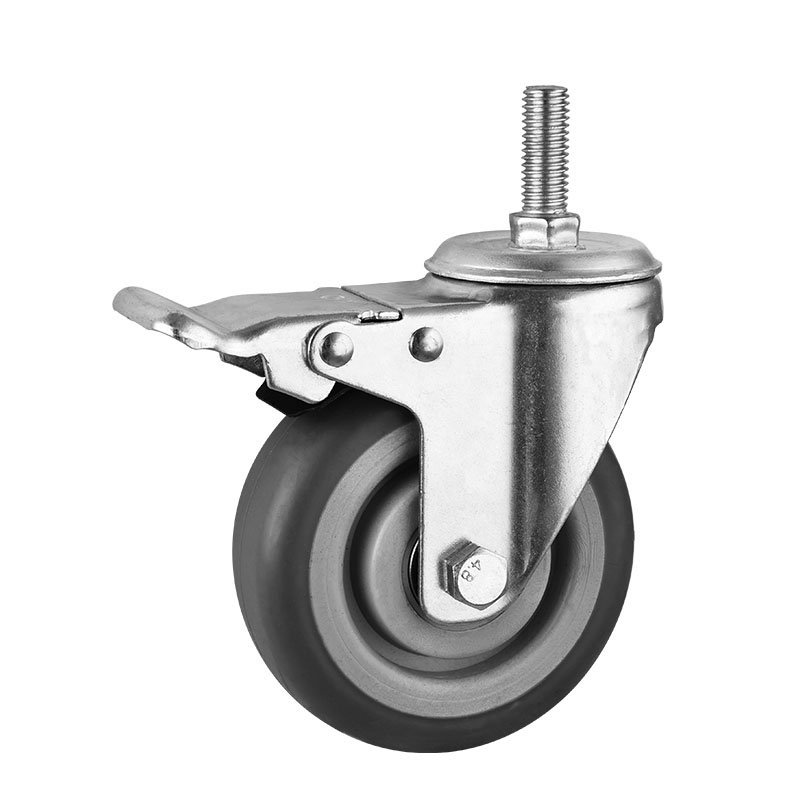

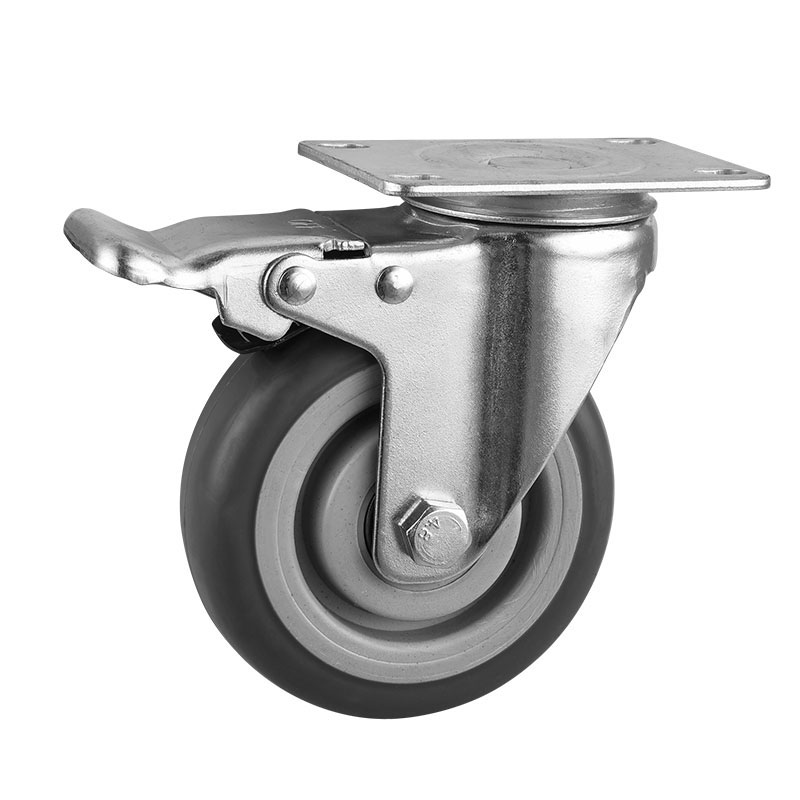

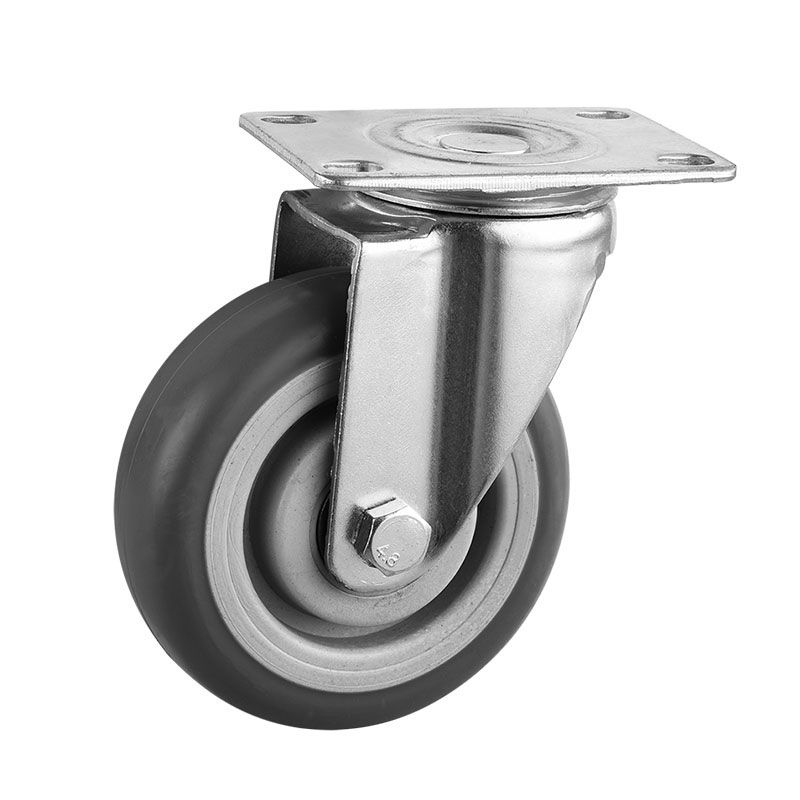

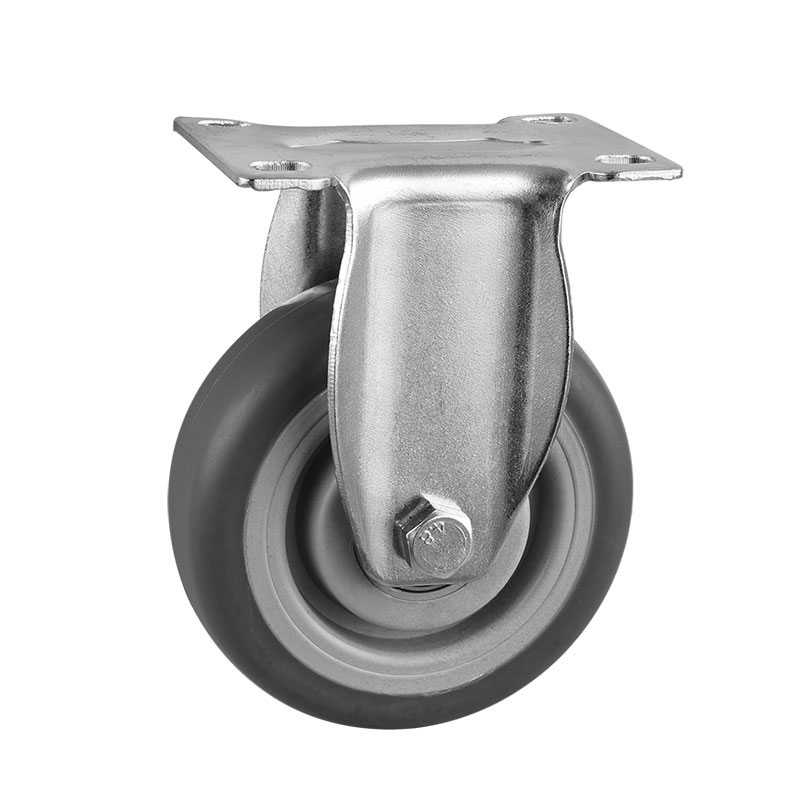

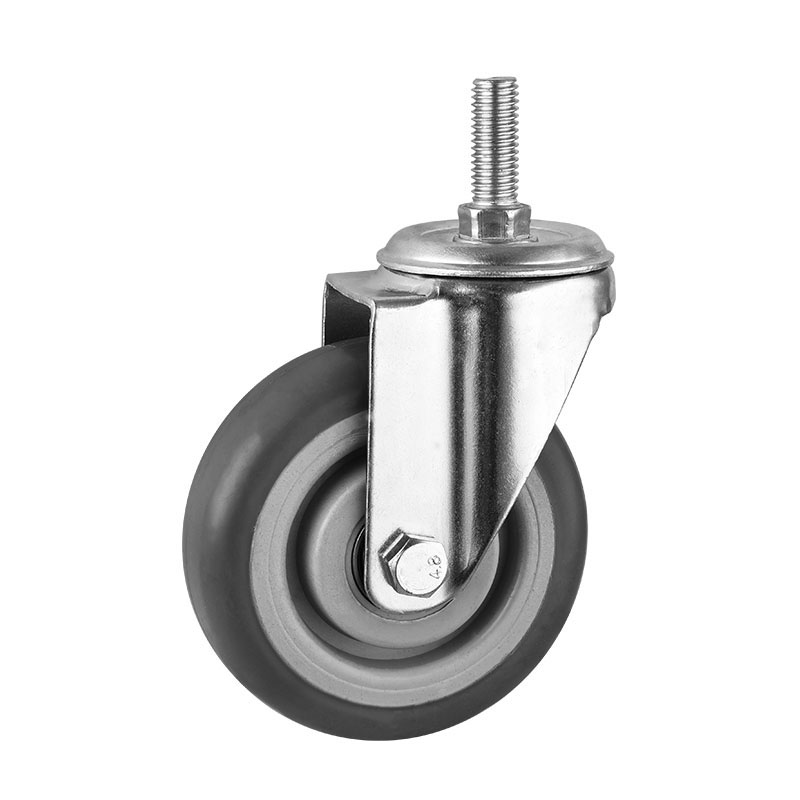

Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 2.5 inch / 3 inch / 4 inch / 5 inch
Load Capicity: 80kg / 90kg / 100kg / 110kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 4-5 working days

Over the years, thanks to the support and love of new and old customers at home and abroad, our products are exported to Europe and America, Southeast Asia and other dozens and regions, creating a good corporate image and reputation.

Technical Specifications for Medium Duty Casters TPR Round Tread

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	80
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	155	M10x30 / M12x30	110

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	80
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	158	M10x30 / M12x30	110
