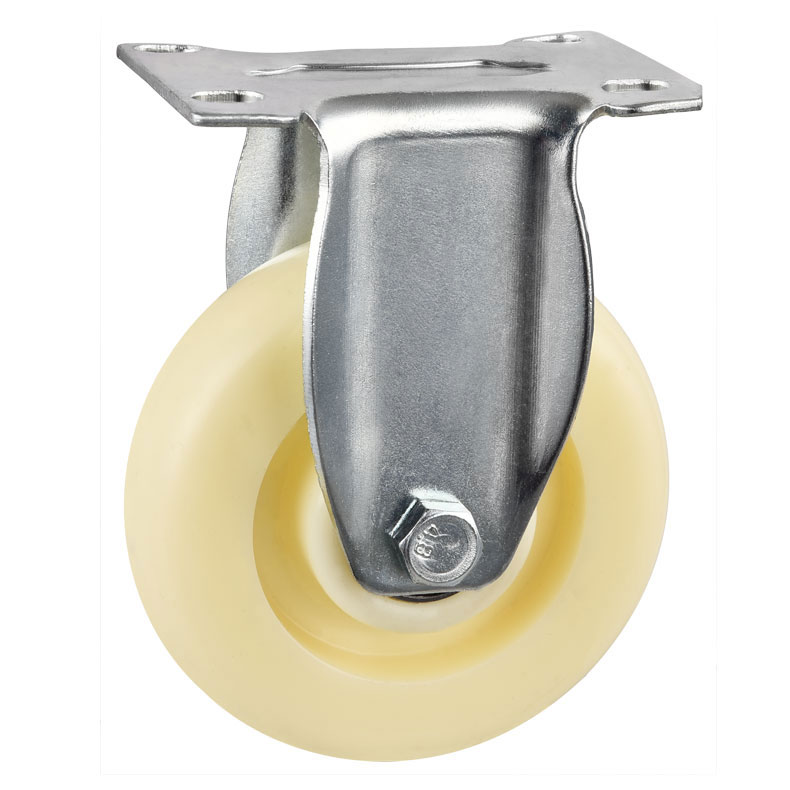

Medium Duty Casters with Nylon Wheels

Manufacturer & factory: CMCL® Casters

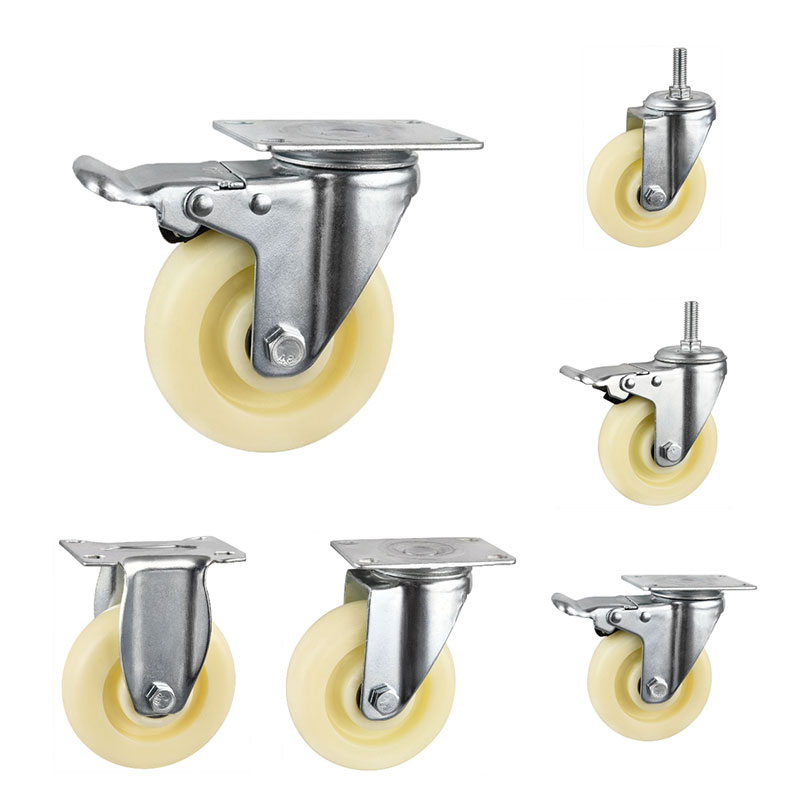

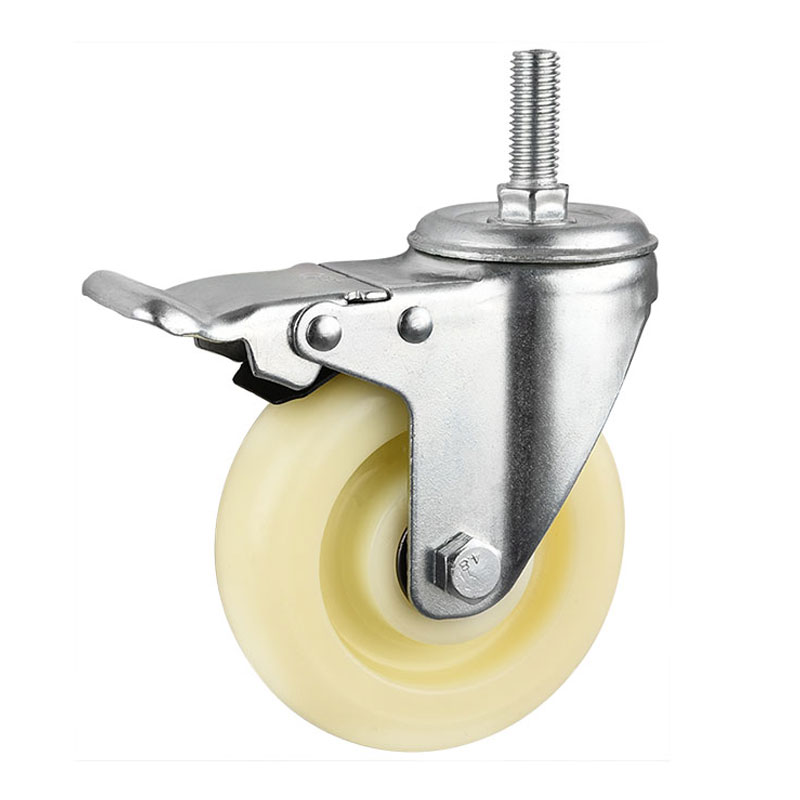

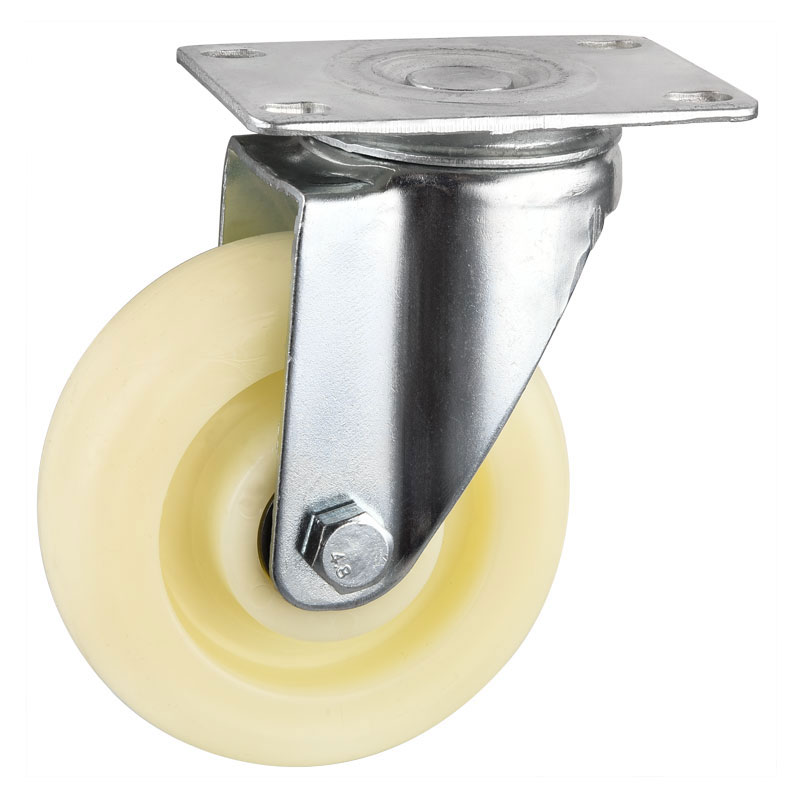

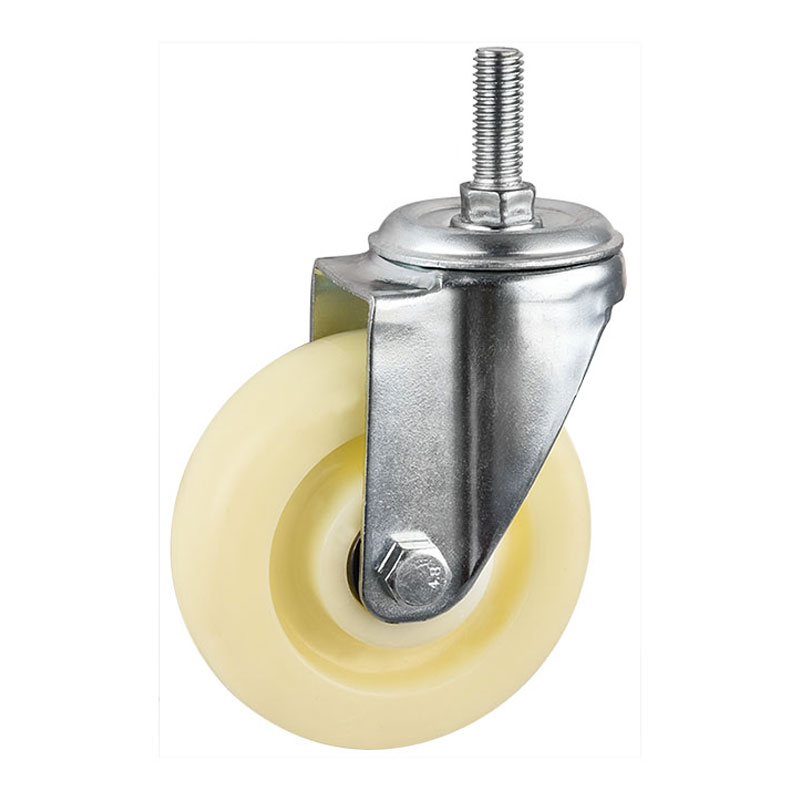

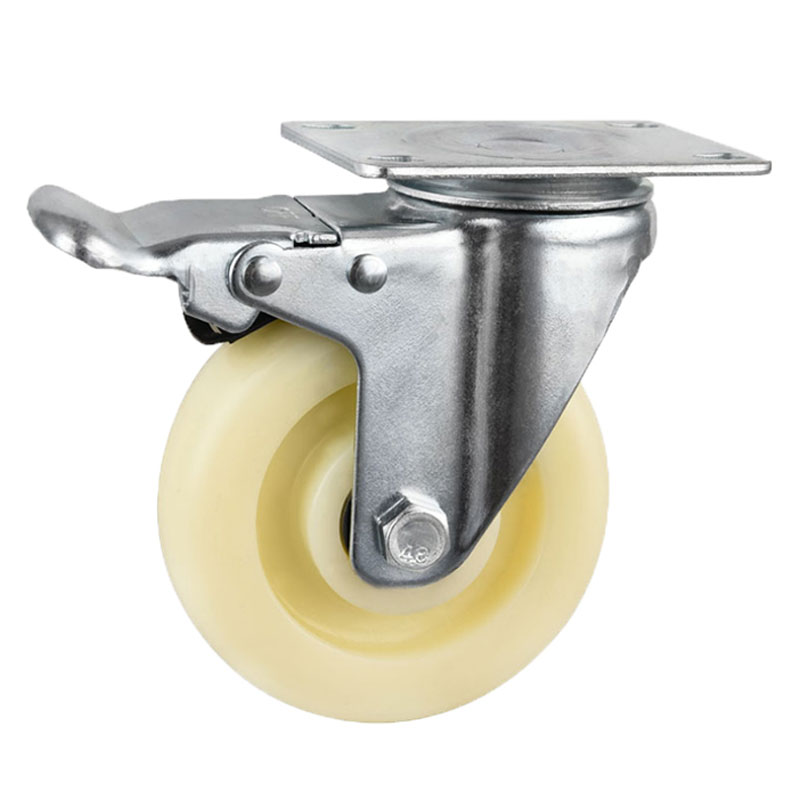

Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 2.5 inch / 3 inch / 4 inch / 5 inch
Load Capicity: 80kg / 90kg / 100kg / 110kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

Right now our export markets are all over the world, mainly in the United States, Germany, the United Kingdom, Malaysia and other countries. Welcome to visit our factory and hope for our win cooperation. We believe we should be your ideal choice.

Technical Specifications for Medium Duty Casters with Nylon Wheels

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	80
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	155	M10x30 / M12x30	110

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	80
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	158	M10x30 / M12x30	110

Raw Materials + Molds + Stamping

Assembly Workshop

Warehouse

Laboratory
