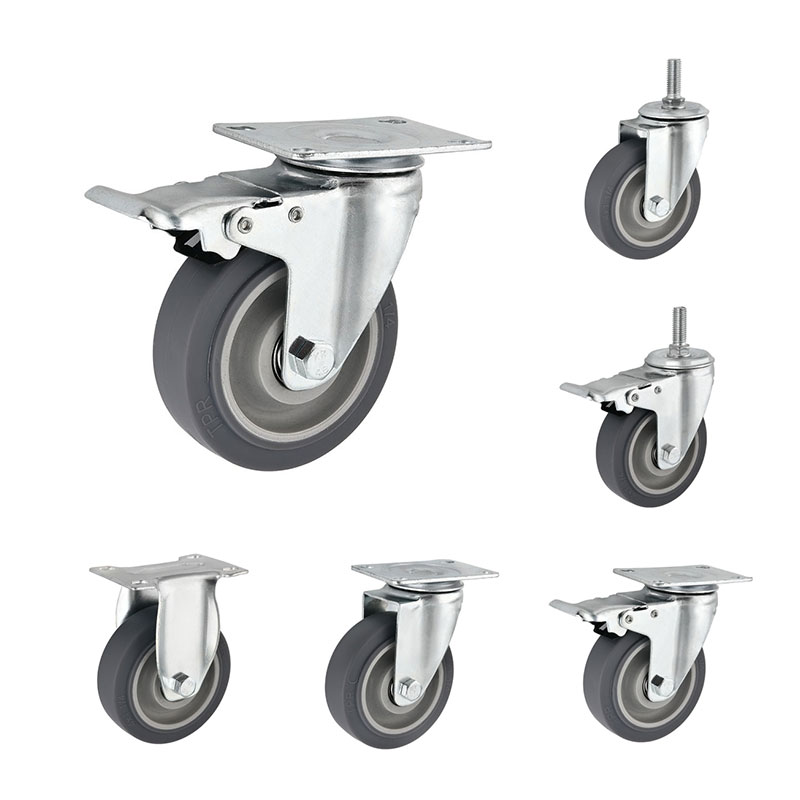

Medium Duty Casters TPR Grey

Manufacturer & factory: CMCL® Casters

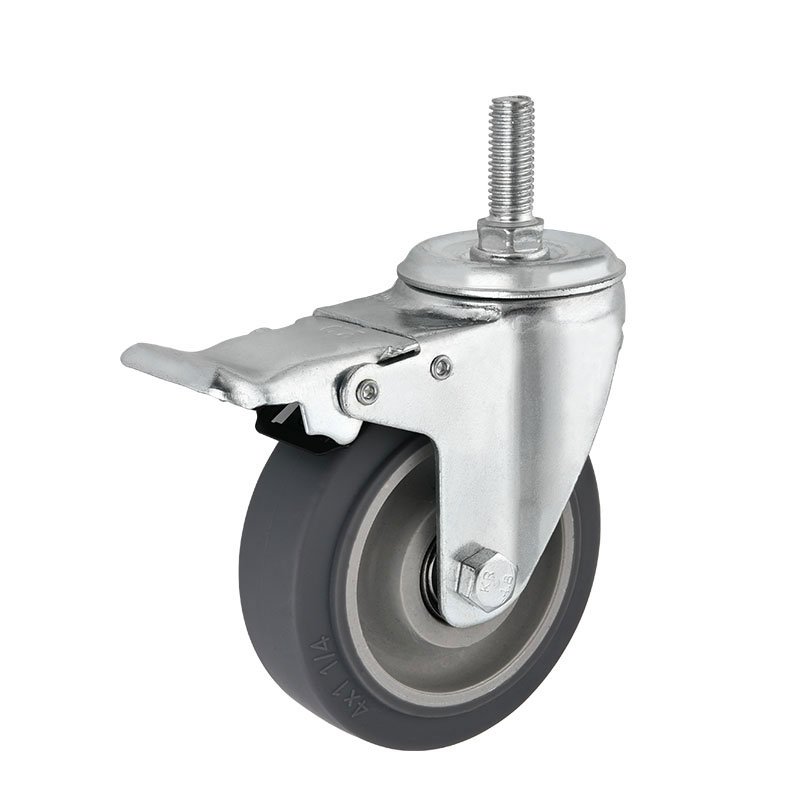

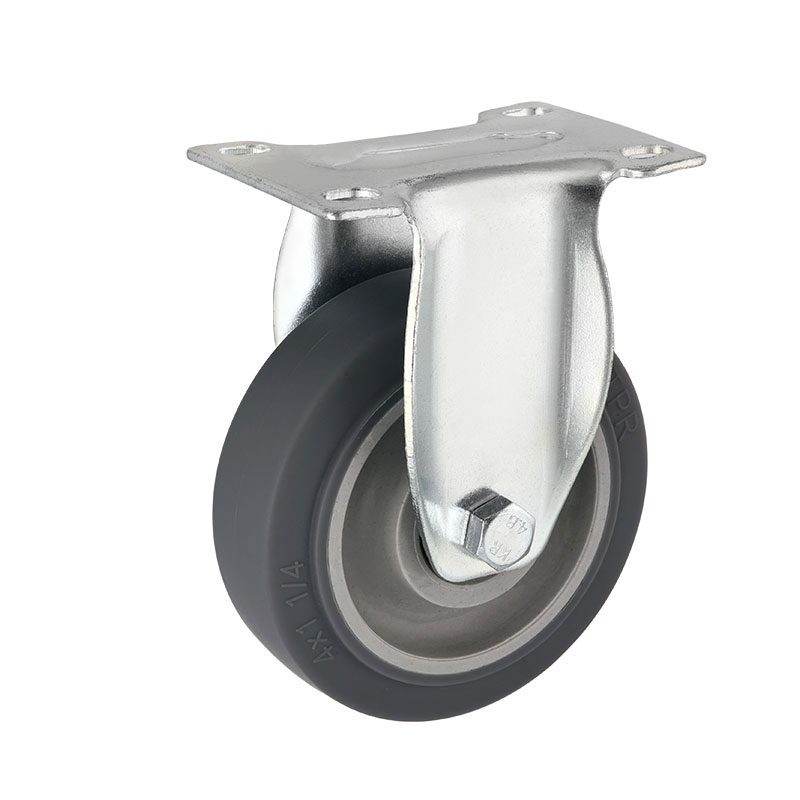

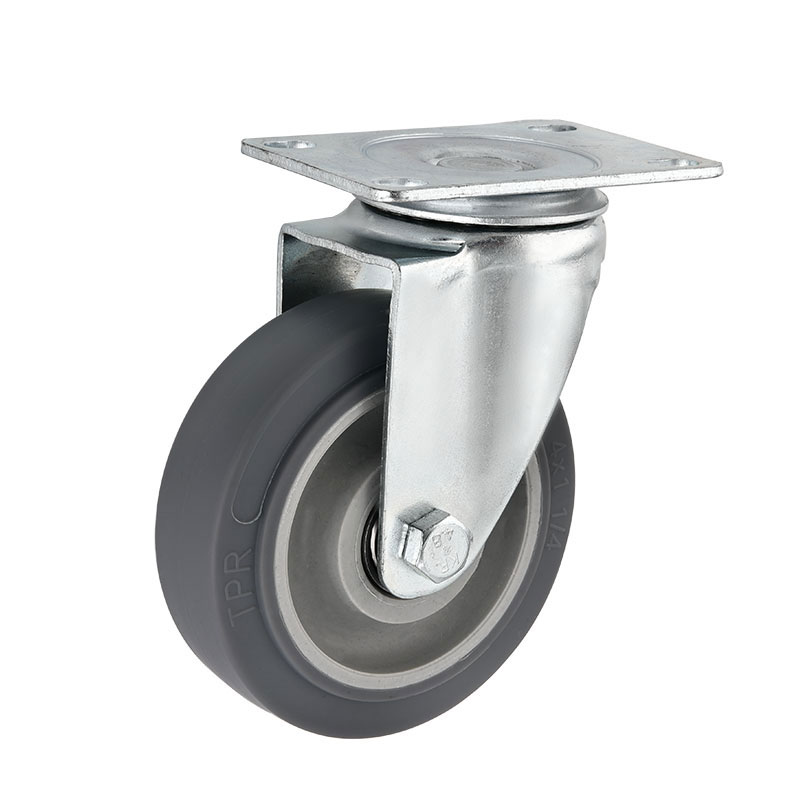

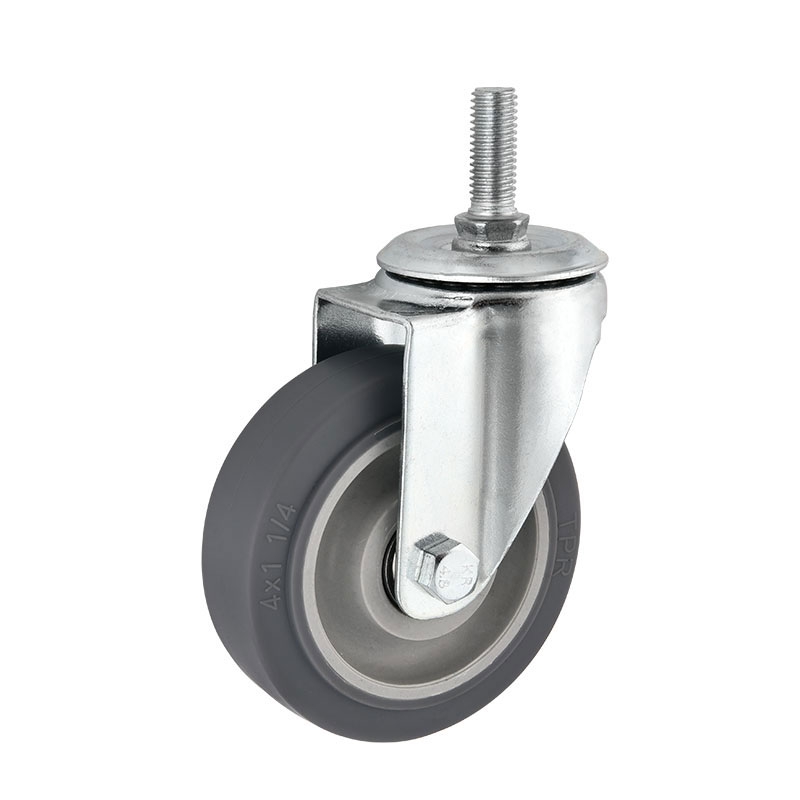

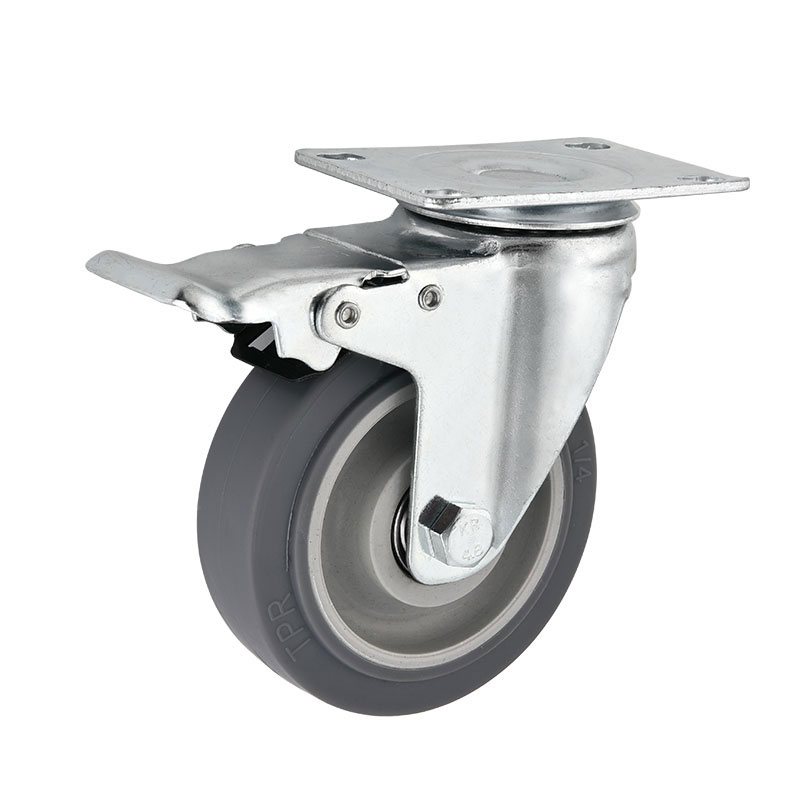

Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 3 inch / 4 inch / 5 inch
Load Capicity: 90kg / 100kg / 110kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 4-5 working days

To supply quality assured products, at competitive prices, from knowledgeable technical experts, effectively, efficiently and with the best reliability in the market. We have customers from both domestic market and oversea market.

Technical Specifications for Medium Duty Casters TPR Flat Tread

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	155	M10x30 / M12x30	110

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	155	M10x30 / M12x30	110
