SUS304 Medium Duty Medical Casters TPR

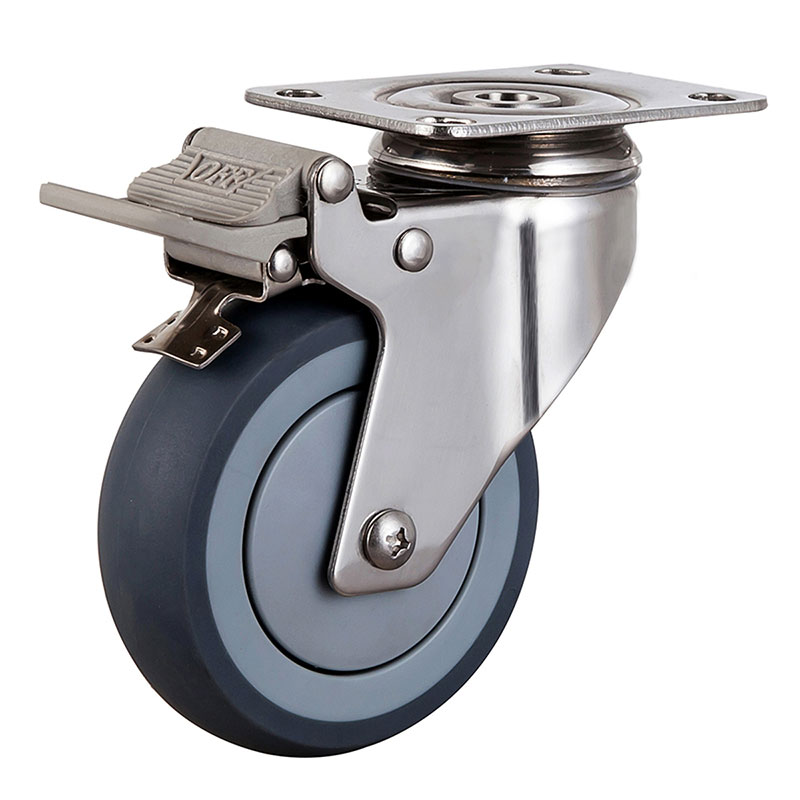

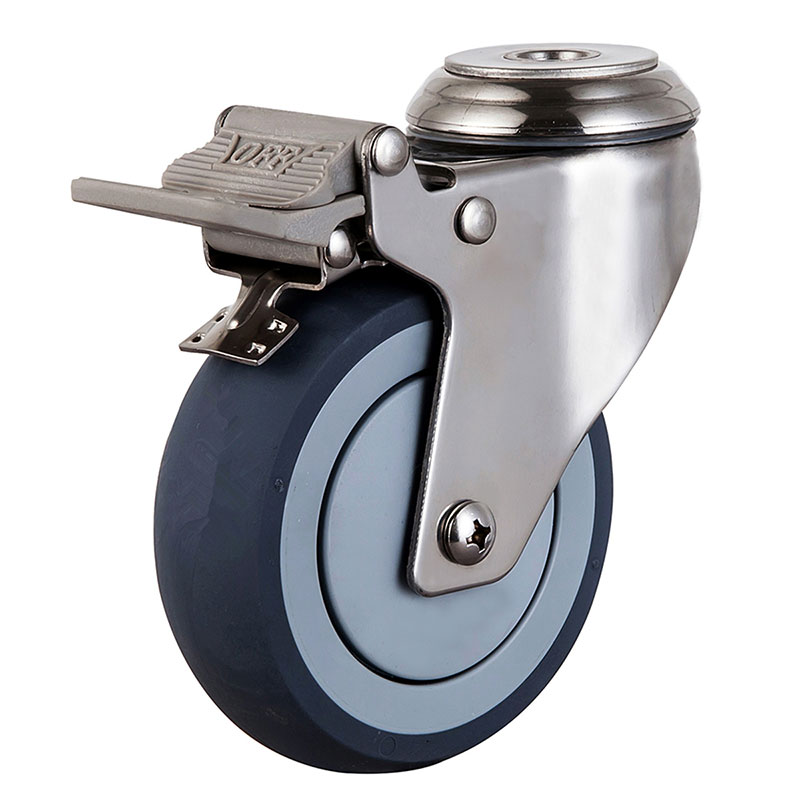

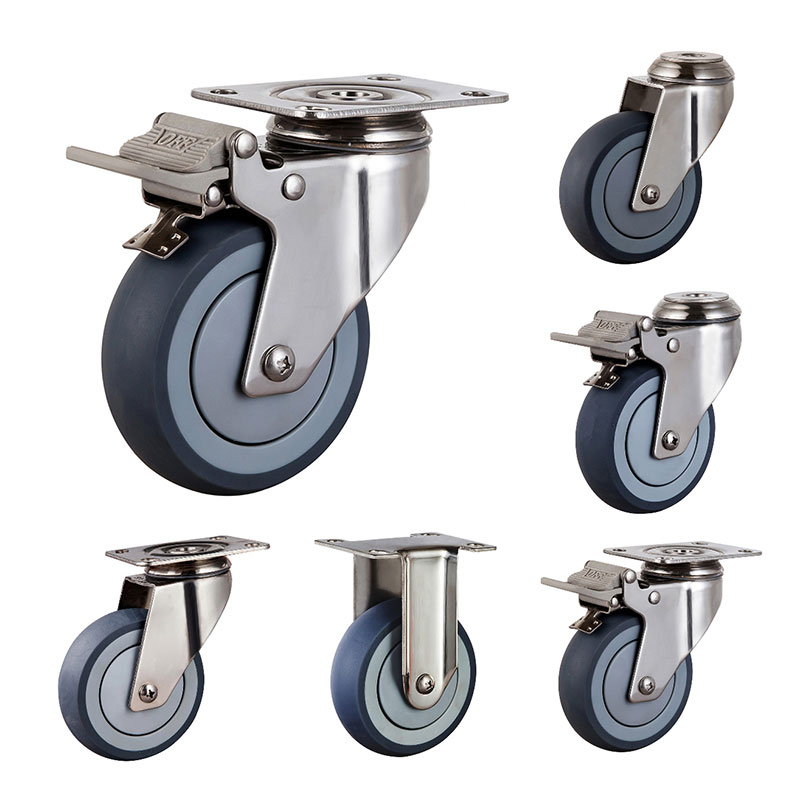

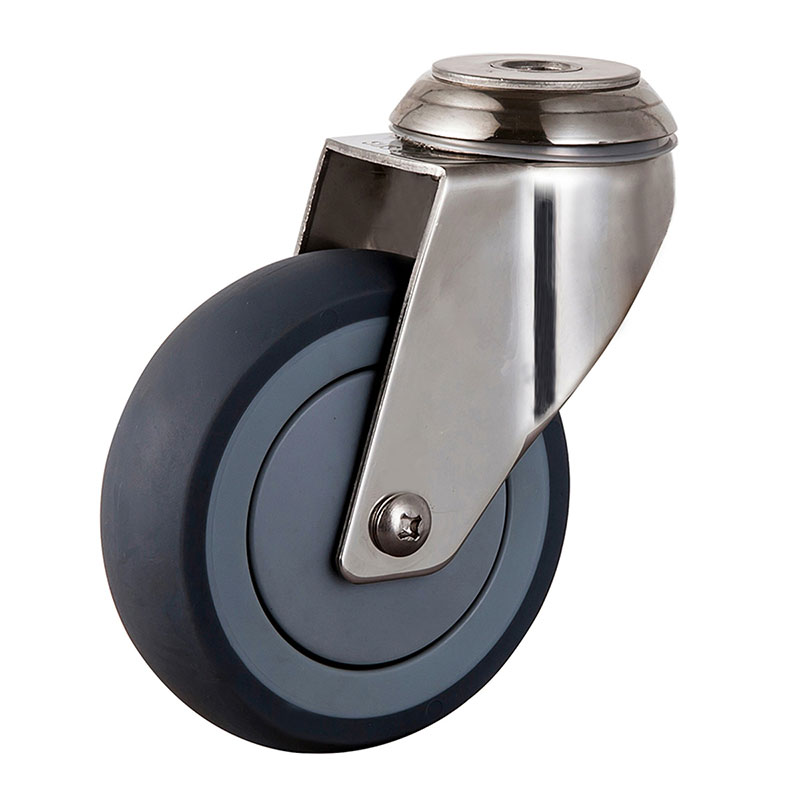

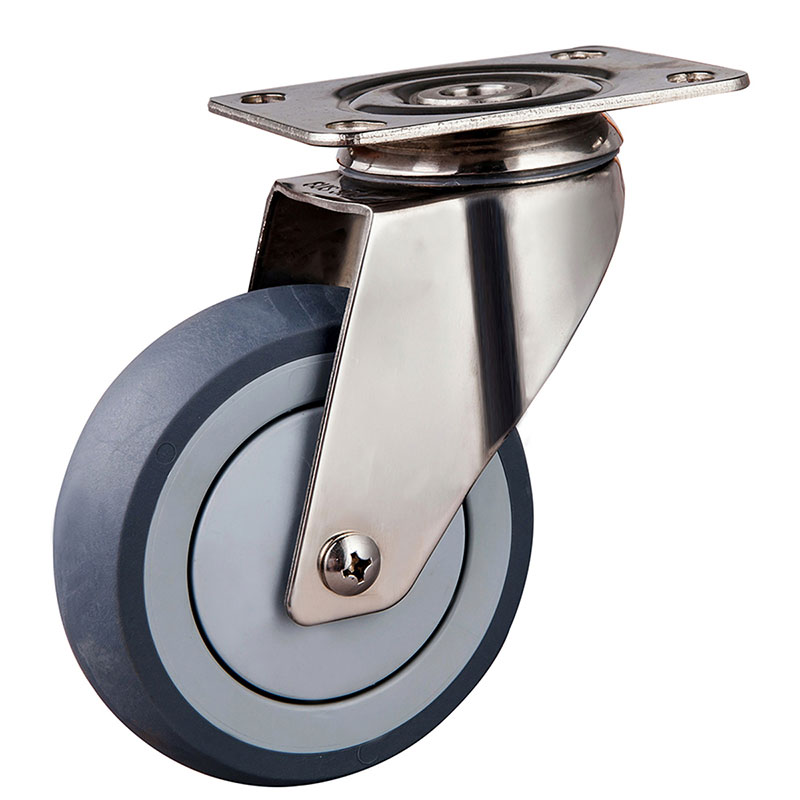

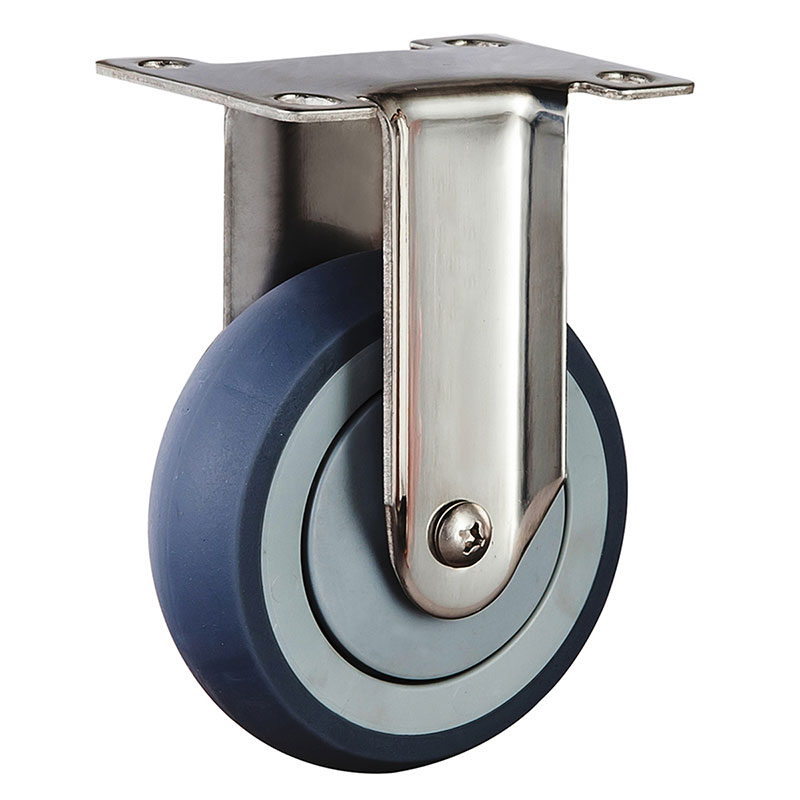

Style: Swivel / Rigid / Swivel with Brake / Threaded Stem swivel / Threaded Stem with brake
Size Options: 2.5 inch 3 inch 4 inch and 5 inch
Load Capicity: 70kg / 80kg / 110kg and 130kg

Product Origin: Guangdong, China;
MOQ: 200 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

Our company has introduced various R&D and testing equipment and instruments to make our R&D, production management and testing capability reach the advanced level of the casters industry in China. We now have a complete supporting production lines to ensure perfect quality and the fastest delivery time.

Technical Specifications for SUS304 Medium Duty Medical Casters TPR

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	95	95x70	75/72x52/45	70
	3"	75x32	113	95x70	75/72x52/45	80
	4"	100x32	137	95x70	75/72x52/45	110
	5"	125x32	163	95x70	75/72x52/45	130

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	95	95x70	75/72x52/45	70
	3"	75x32	113	95x70	75/72x52/45	80
	4"	100x32	137	95x70	75/72x52/45	110
	5"	125x32	163	95x70	75/72x52/45	130

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	95	95x70	75/72x52/45	70
	3"	75x32	113	95x70	75/72x52/45	80
	4"	100x32	137	95x70	75/72x52/45	110
	5"	125x32	163	95x70	75/72x52/45	130

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	95	M12x30	70
	3"	75x32	113	M12x30	80
	4"	100x32	137	M12x30	110
	5"	125x32	163	M12x30	130

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	95	M12x30	70
	3"	75x32	113	M12x30	80
	4"	100x32	137	M12x30	110
	5"	125x32	163	M12x30	130
