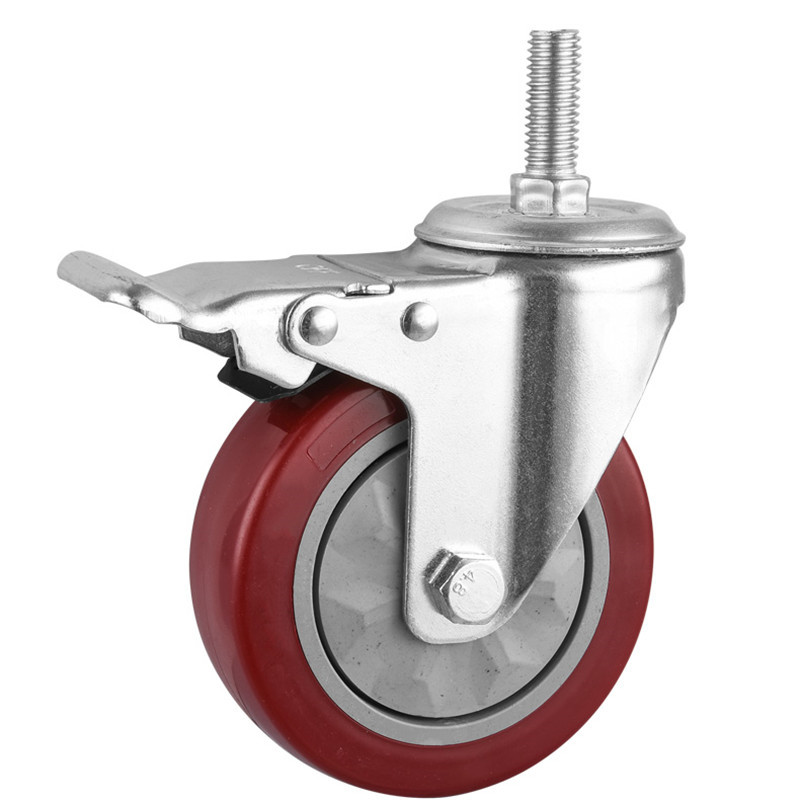

Medium Caster

Manufacturer & factory: CMCL® Casters

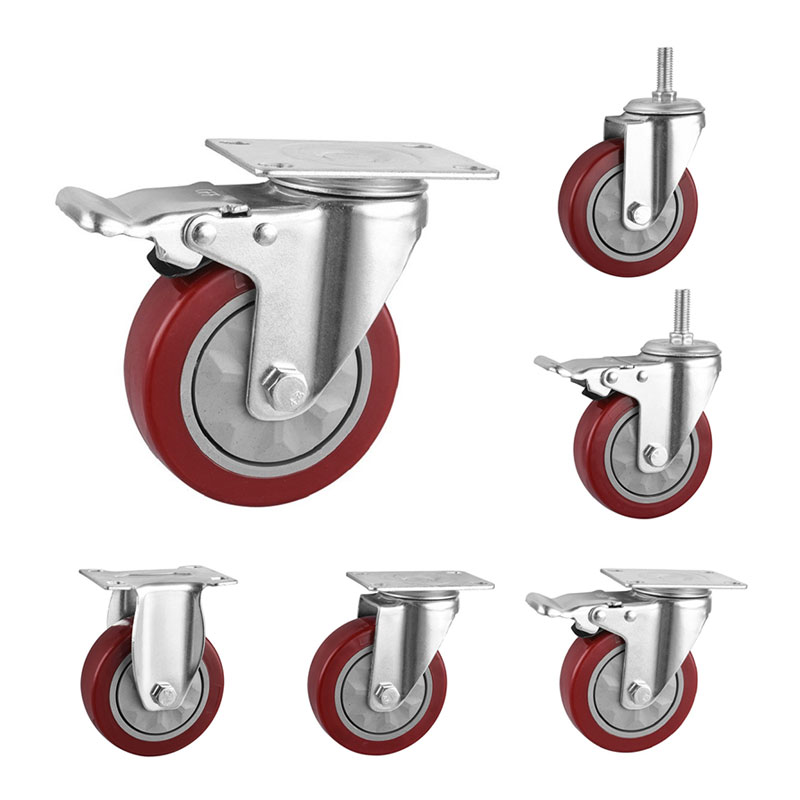

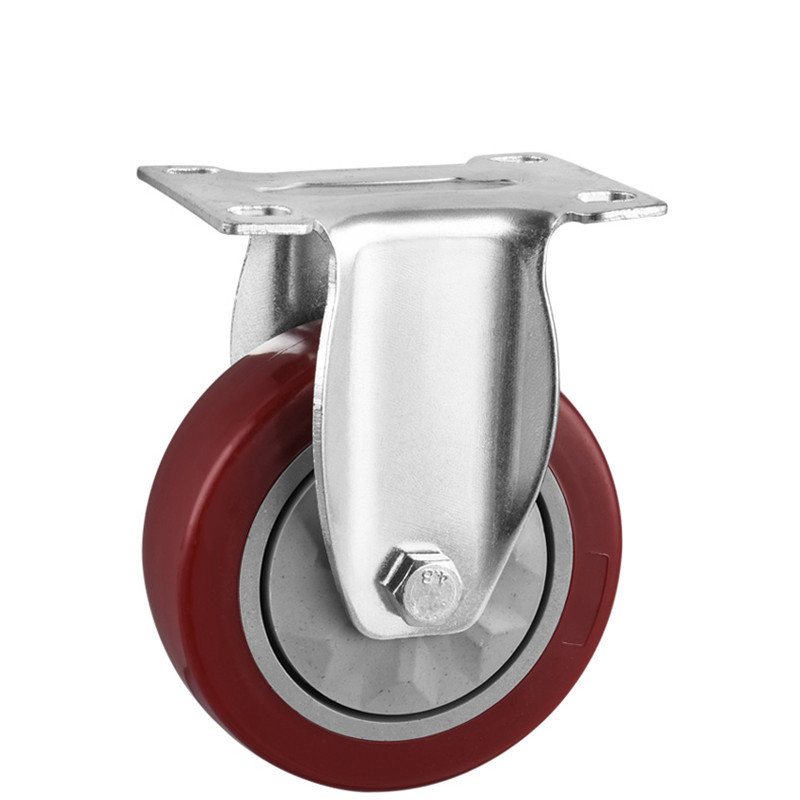

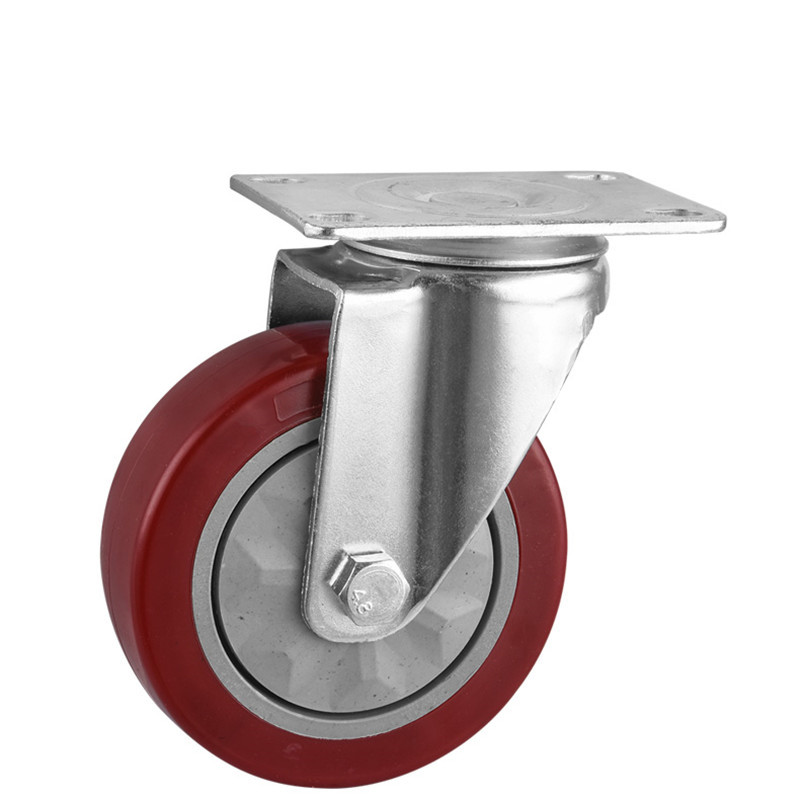

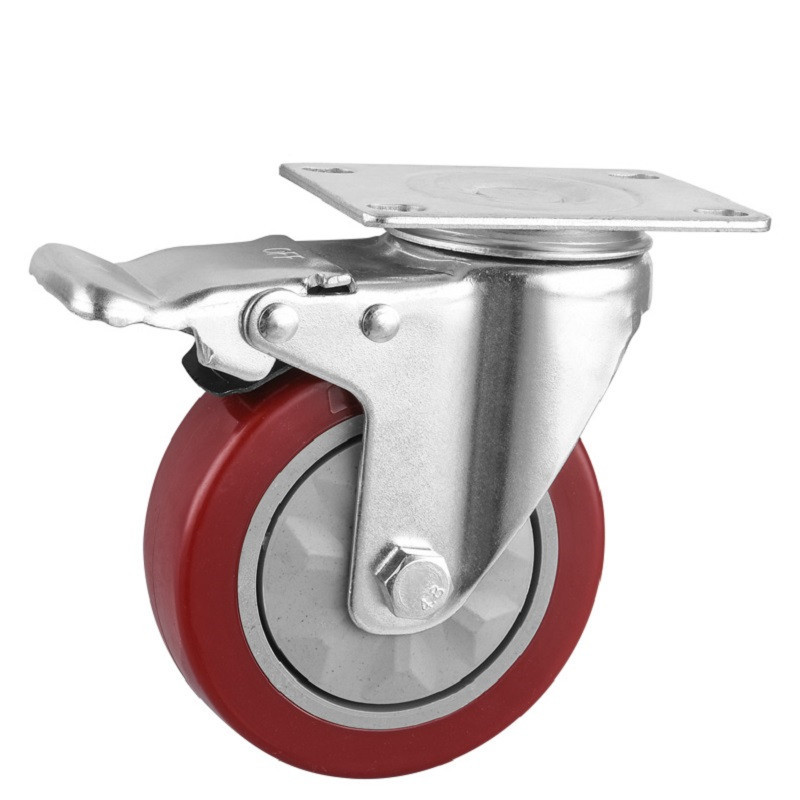

Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 2.5 inch / 3 inch / 4 inch / 5 inch
Load Capicity: 70kg / 80kg / 90kg / 100kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

At CMCL® Casters, you don’t just buy a product—you gain access to a team of expert consultants with over a combined experience. Our specialists meet with clients on-site when needed, ensuring that every recommendation is based on real-world understanding of unique operational challenges.

Technical Specifications for Medium Caster

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	70
	3"	75x32	103	92x64	74x45	80
	4"	100x32	128	92x64	74x45	90
	5"	125x32	155	92x64	74x45	100

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	70
	3"	75x32	103	92x64	74x45	80
	4"	100x32	128	92x64	74x45	90
	5"	125x32	155	92x64	74x45	100

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	70
	3"	75x32	103	92x64	74x45	80
	4"	100x32	128	92x64	74x45	90
	5"	125x32	155	92x64	74x45	100

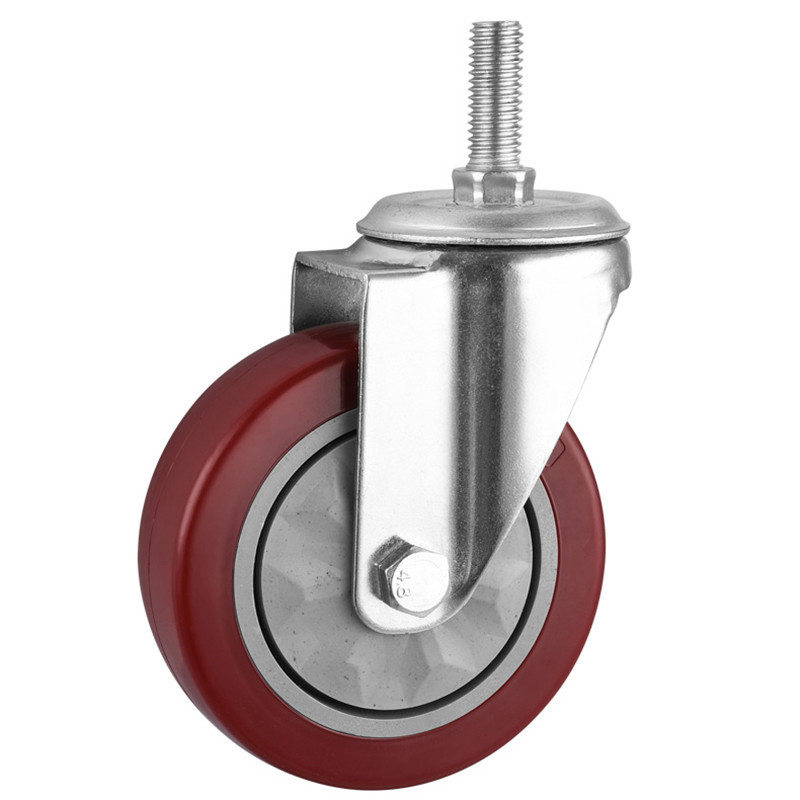

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	70
	3"	75x32	103	M10x30 / M12x30	80
	4"	100x32	128	M10x30 / M12x30	90
	5"	125x32	155	M10x30 / M12x30	100

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	70
	3"	75x32	103	M10x30 / M12x30	80
	4"	100x32	128	M10x30 / M12x30	90
	5"	125x32	155	M10x30 / M12x30	100
