Caster In Medium

Manufacturer & factory: CMCL® Casters

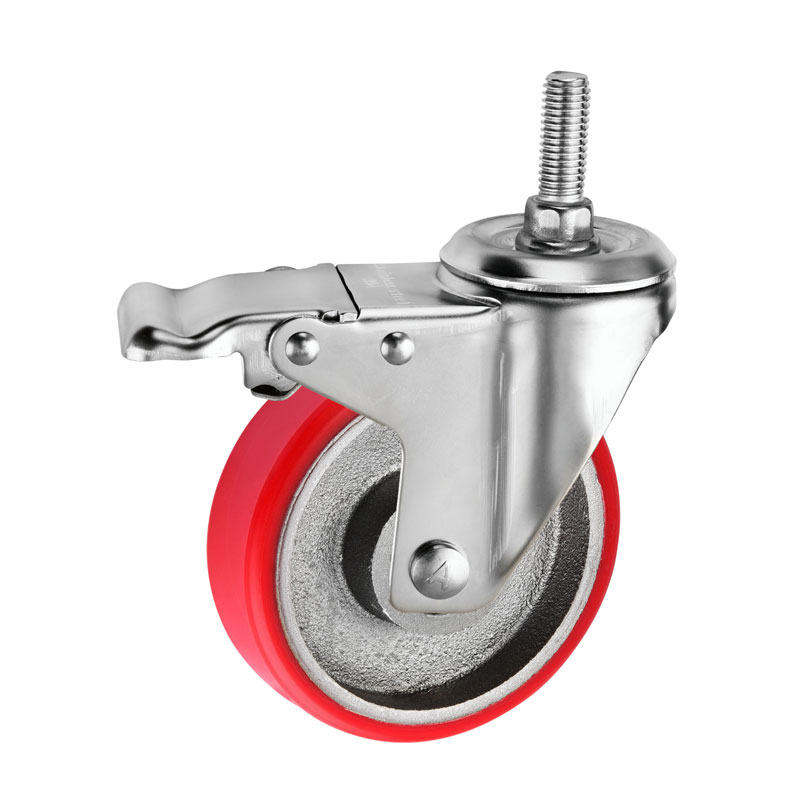

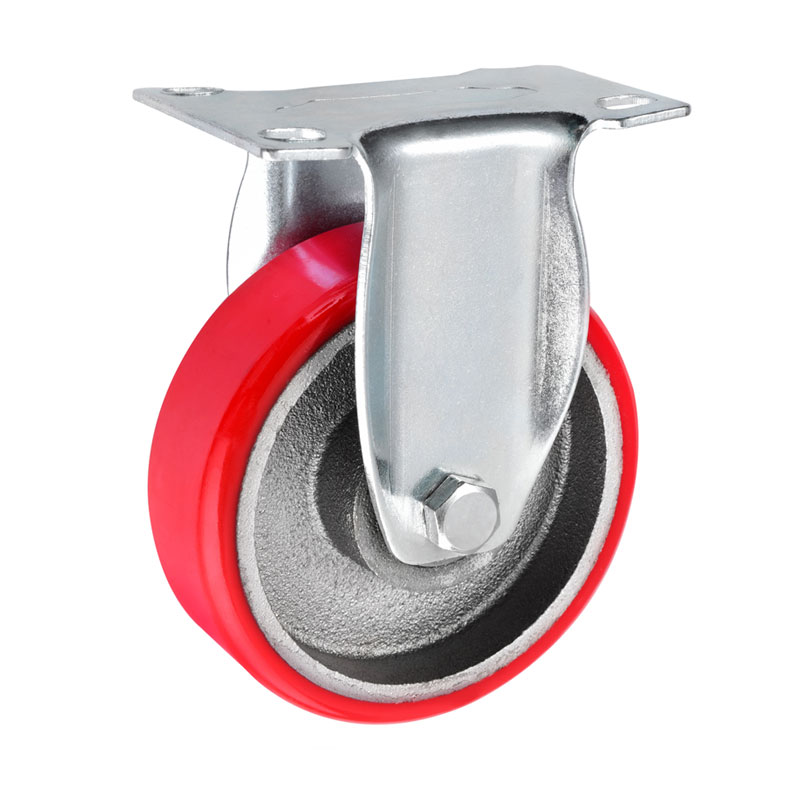

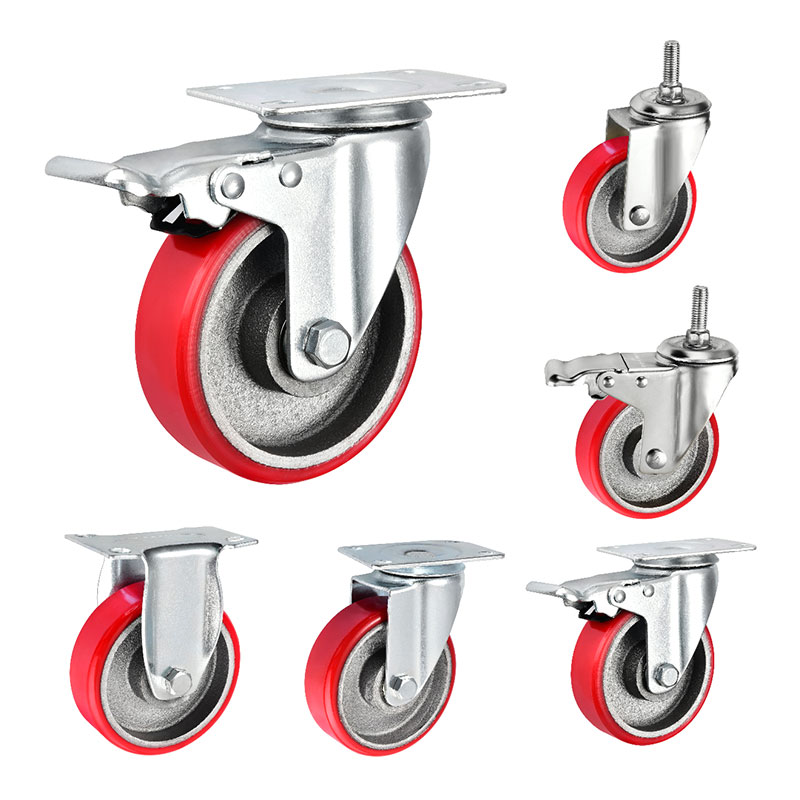

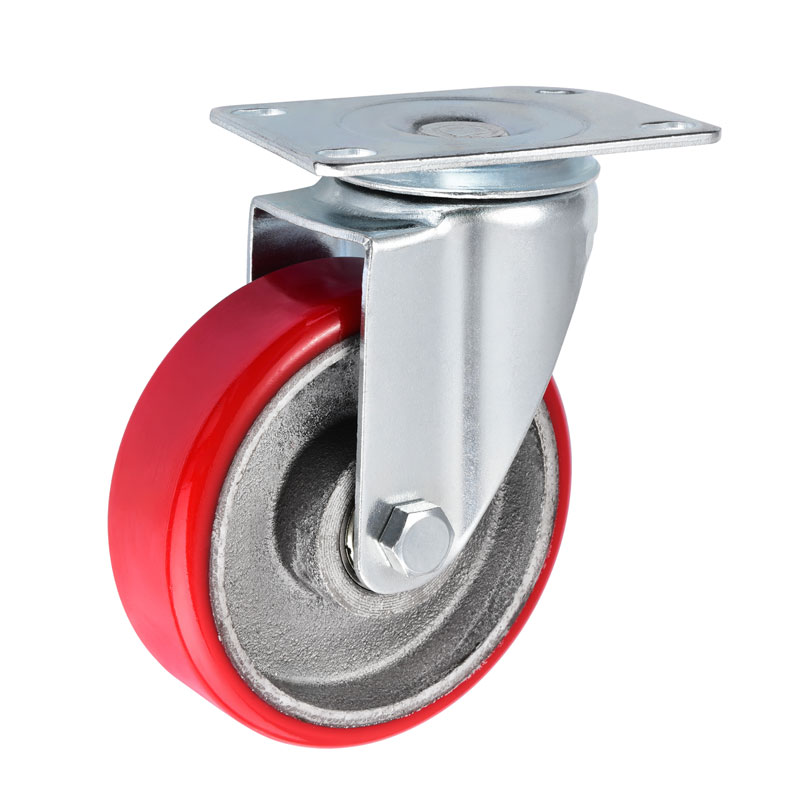

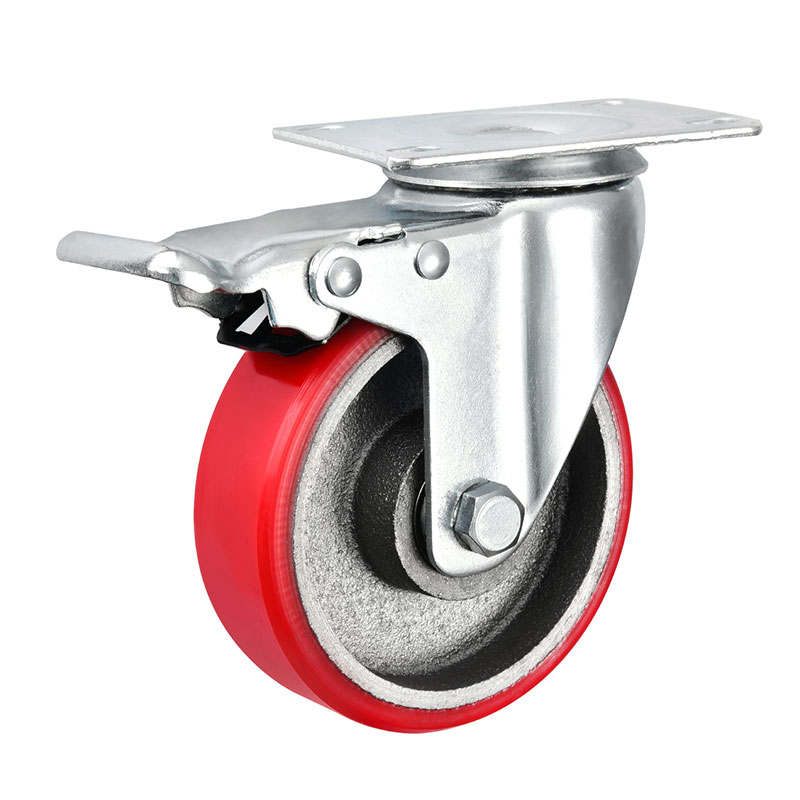

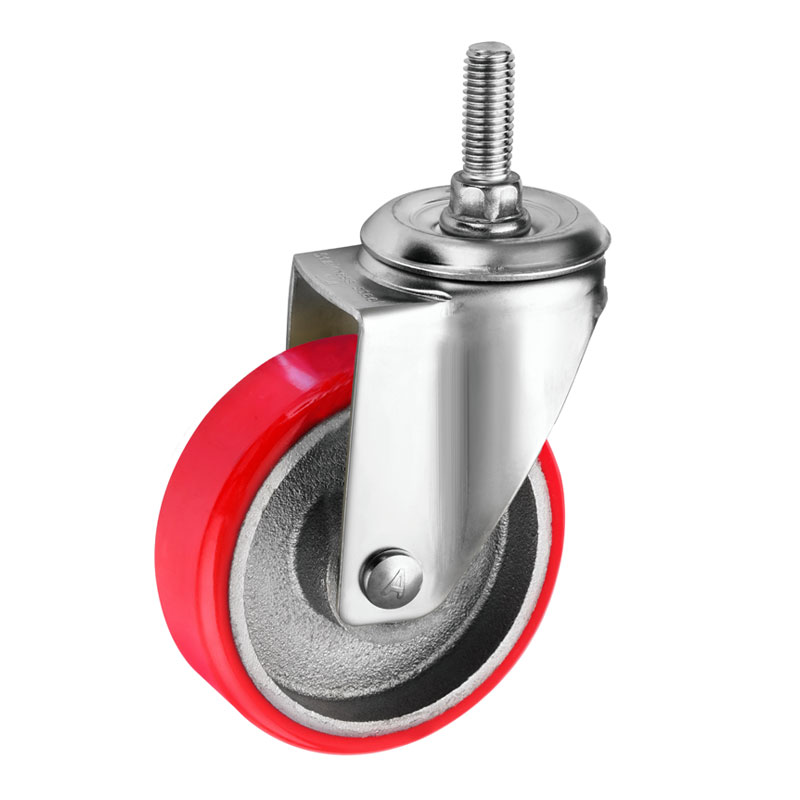

Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 2.5 inch / 3 inch / 4 inch / 5 inch
Load Capicity: 120kg / 130kg / 140kg / 150kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 4-5 working days

The only thing we dedicate to is to satisfy your needs with our high-quality products, timely service and competitive price. If you are interested in our products, please feel free to contact us for more details. As a leading CMCL® Casters manufacturer, we excel in both ODM Casters for unique designs and OEM Casters for your brand. Let us partner to create your ideal caster solution.

Technical Specifications for Caster In Medium

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	120
	3"	75x32	103	92x64	74x45	130
	4"	100x32	128	92x64	74x45	140
	5"	125x32	155	92x64	74x45	150

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	120
	3"	75x32	103	92x64	74x45	130
	4"	100x32	128	92x64	74x45	140
	5"	125x32	155	92x64	74x45	150

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	120
	3"	75x32	103	92x64	74x45	130
	4"	100x32	128	92x64	74x45	140
	5"	125x32	155	92x64	74x45	150

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	120
	3"	75x32	103	M10x30 / M12x30	130
	4"	100x32	128	M10x30 / M12x30	140
	5"	125x32	155	M10x30 / M12x30	150

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	120
	3"	75x32	103	M10x30 / M12x30	130
	4"	100x32	128	M10x30 / M12x30	140
	5"	125x32	155	M10x30 / M12x30	150
