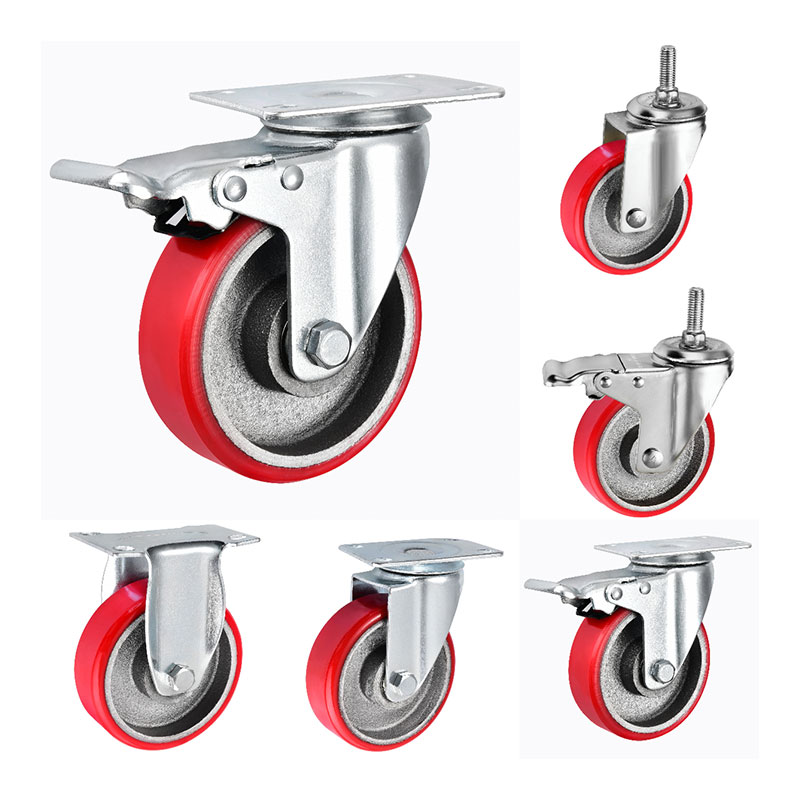

Medium Duty Casters PU on Cast Iron Core

Manufacturer & factory: CMCL® Casters
Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 2.5 inch / 3 inch / 4 inch / 5 inch
Load Capicity: 120kg / 130kg / 140kg / 150kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 4-5 working days

Our casters have been exported to Europe, North America, and Mid-East areas for a long time. As a factory, we can ensure accurate delivery time, and our product quality and service are recognized by customers.

Technical Specifications for Medium Duty Casters PU on Cast Iron Core

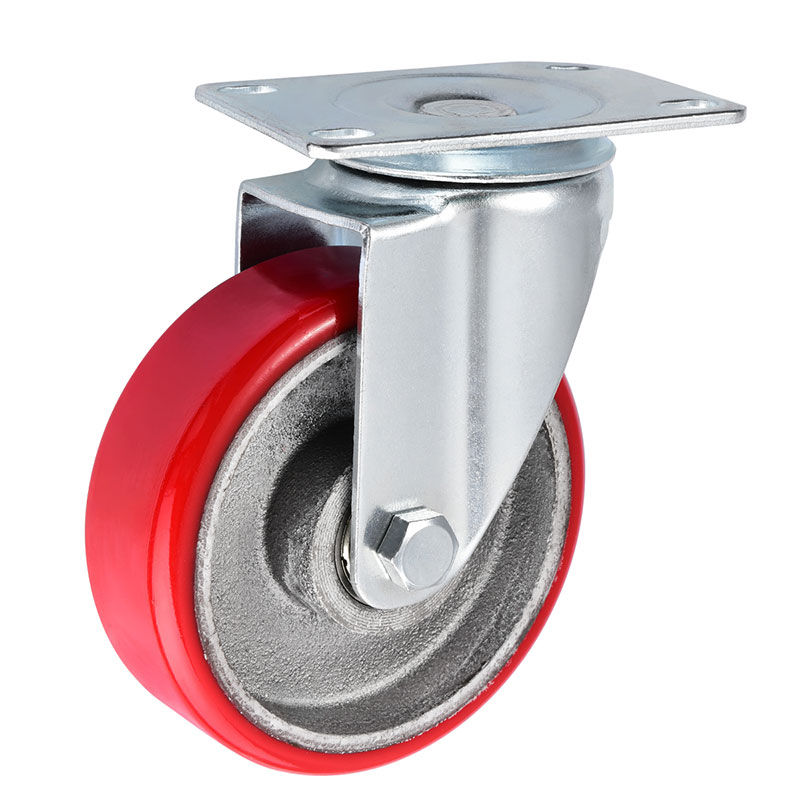

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	120
	3"	75x32	103	92x64	74x45	130
	4"	100x32	128	92x64	74x45	140
	5"	125x32	155	92x64	74x45	150

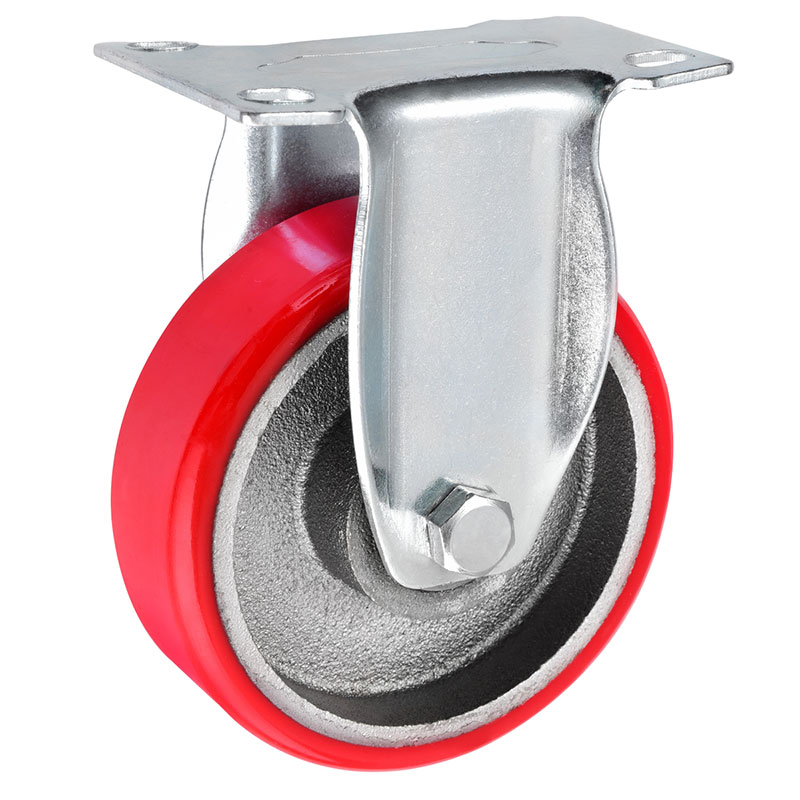

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	120
	3"	75x32	103	92x64	74x45	130
	4"	100x32	128	92x64	74x45	140
	5"	125x32	155	92x64	74x45	150

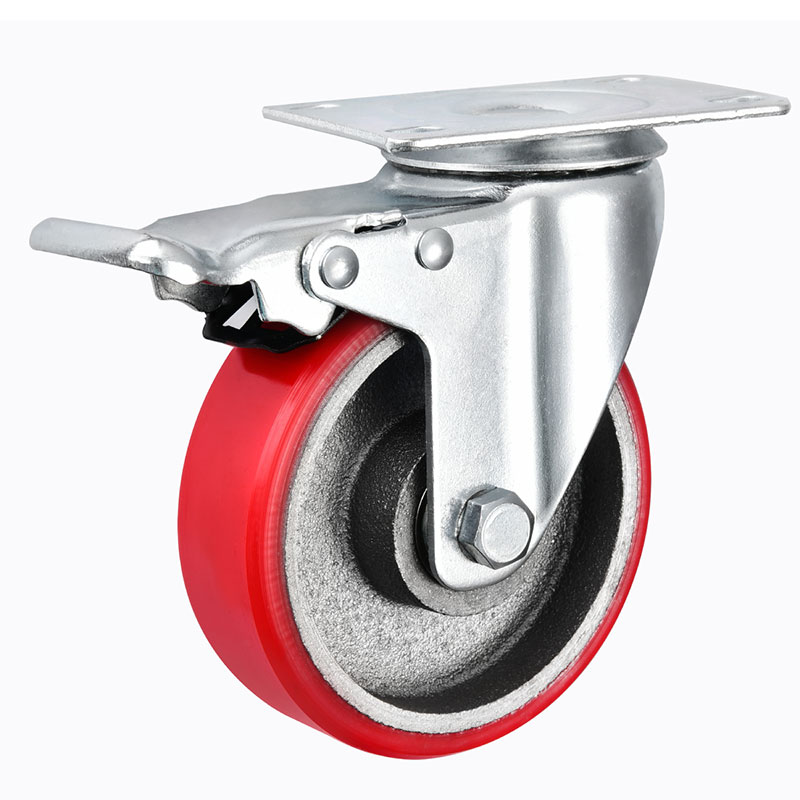

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	120
	3"	75x32	103	92x64	74x45	130
	4"	100x32	128	92x64	74x45	140
	5"	125x32	155	92x64	74x45	150

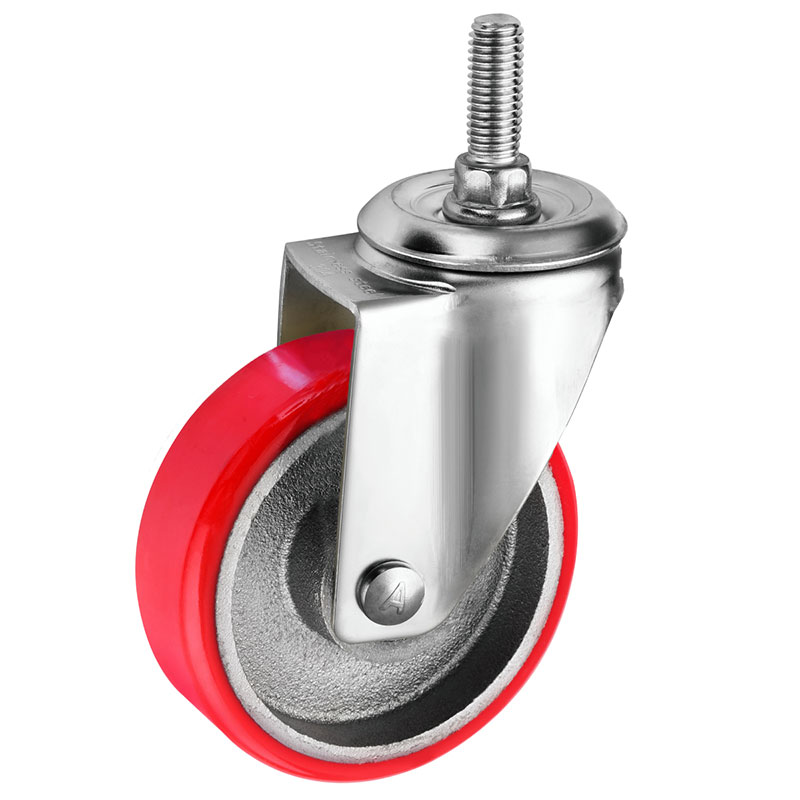

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	120
	3"	75x32	103	M10x30 / M12x30	130
	4"	100x32	128	M10x30 / M12x30	140
	5"	125x32	155	M10x30 / M12x30	150

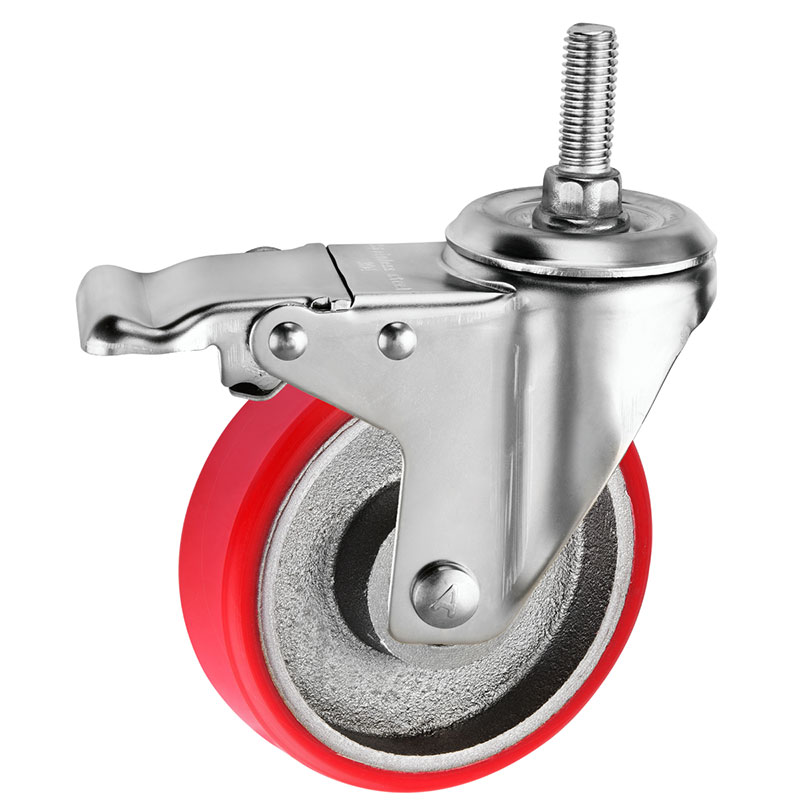

	Size	Dia x Width (mm)	Load Height (mm)	Stem Size (mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	120
	3"	75x32	103	M10x30 / M12x30	130
	4"	100x32	128	M10x30 / M12x30	140
	5"	125x32	155	M10x30 / M12x30	150
