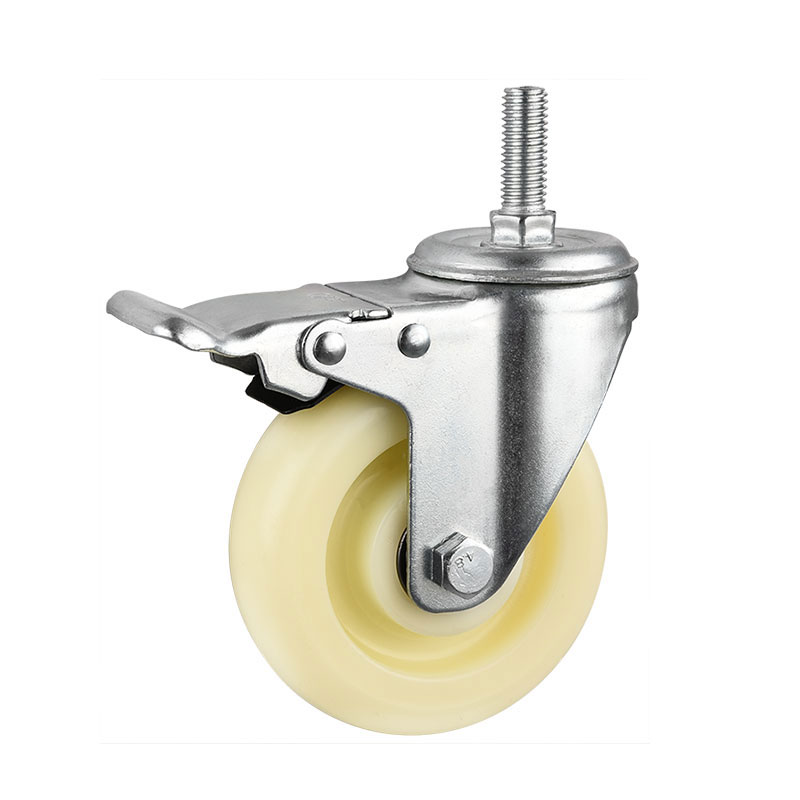

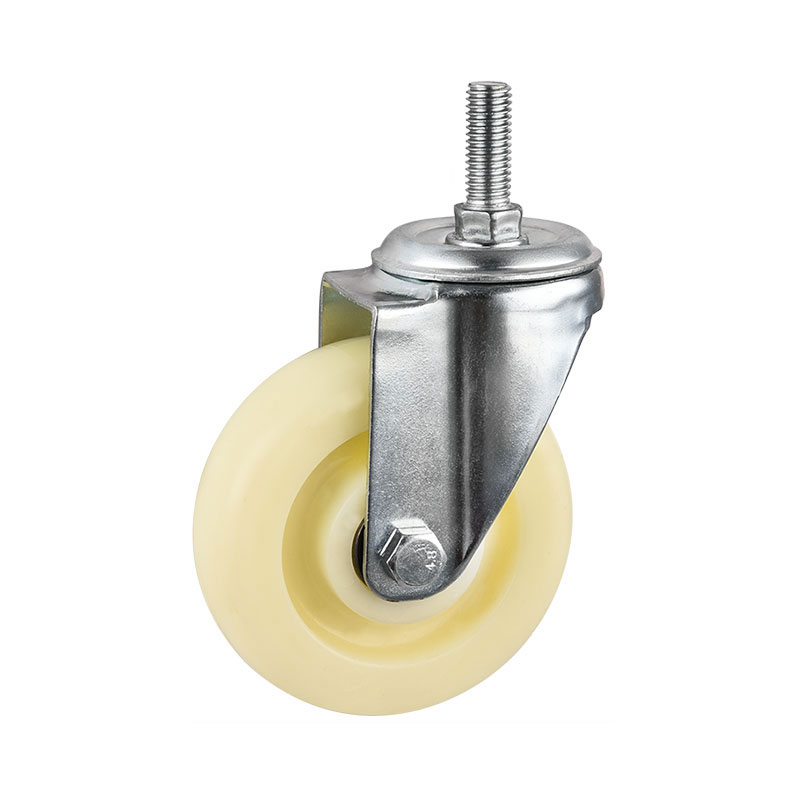

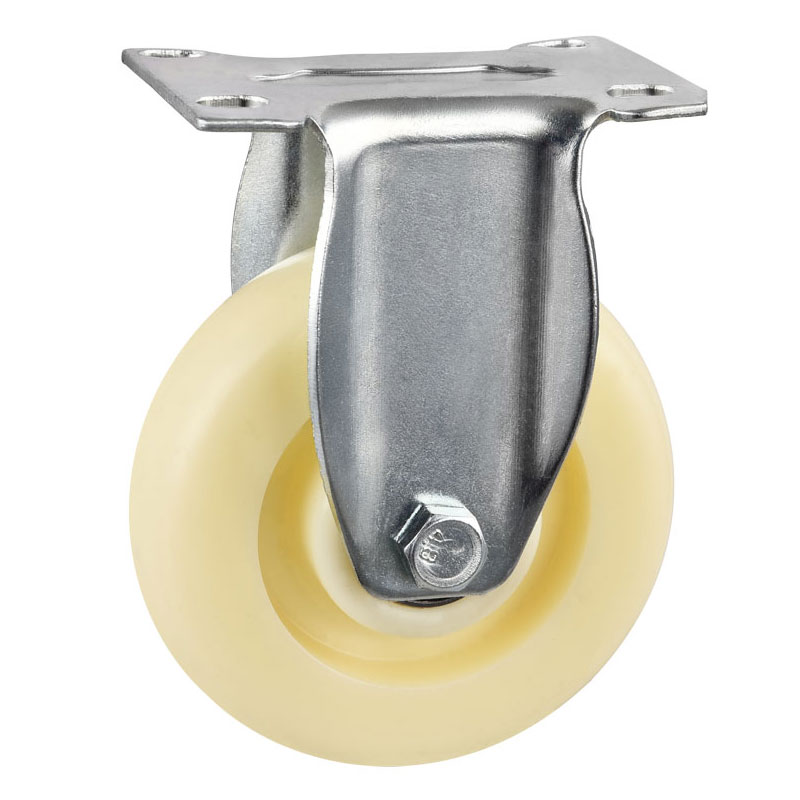

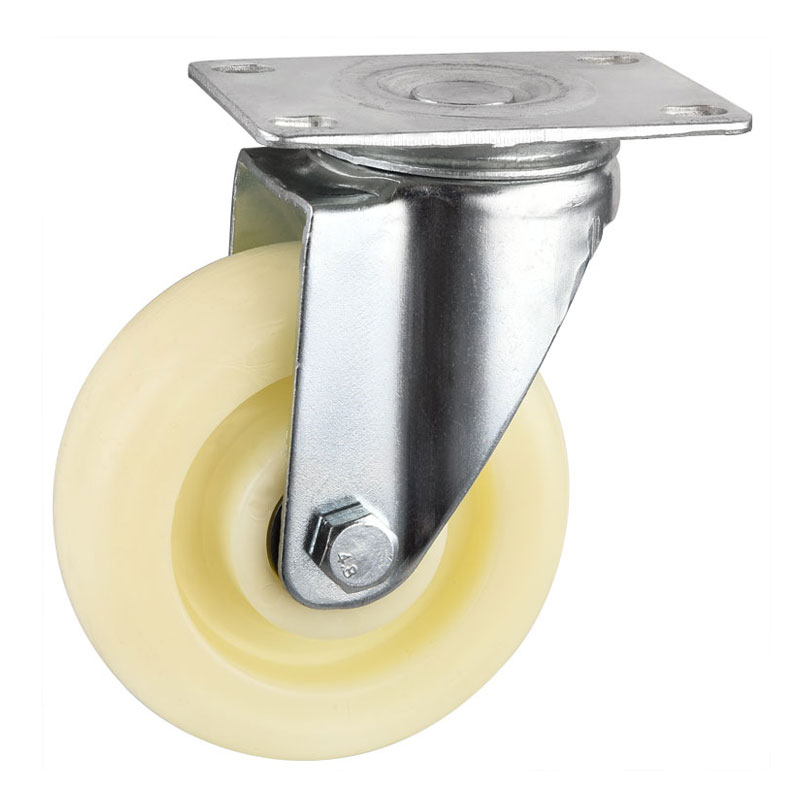

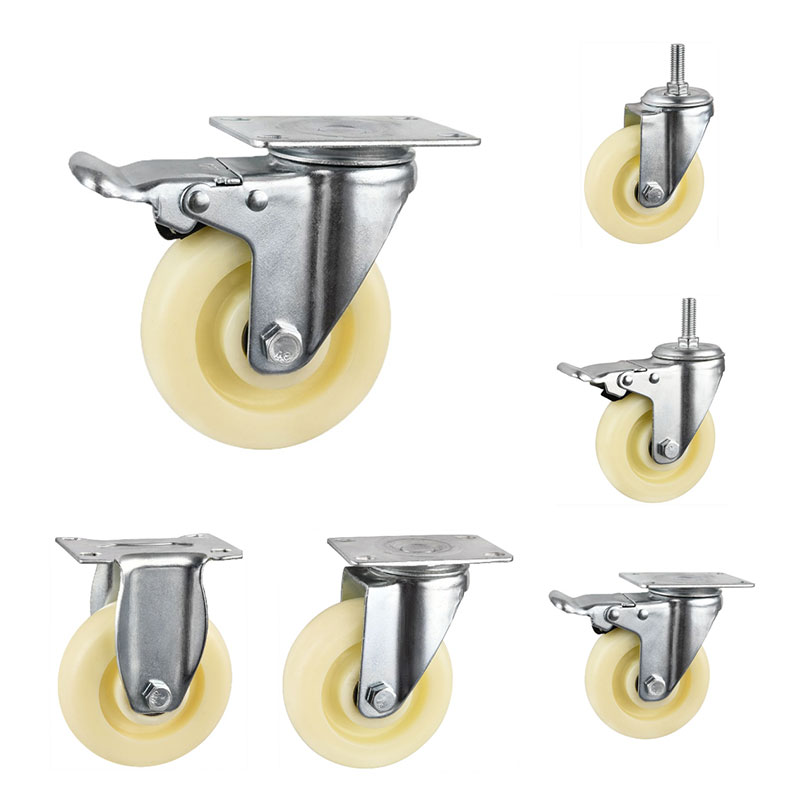

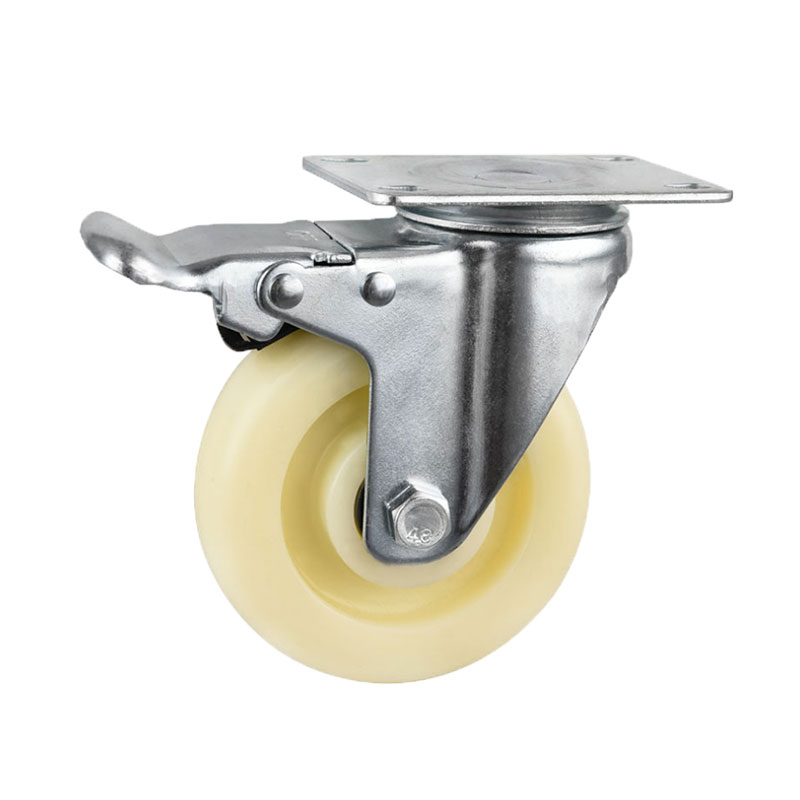

Medium Casters

Manufacturer & factory: CMCL® Casters
Style: Swivel / Rigid / Swivel with Brake / Stem
Size Options: 2.5 inch / 3 inch / 4 inch / 5 inch
Load Capicity: 80kg / 90kg / 100kg / 110kg

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

As top Casters manufacturers and reliable Casters suppliers, CMCL® Casters is the premier partner for global B2B Casters solutions. Our long-standing partnerships with major brands and our own in-house innovations equip us to serve enterprises across diverse industries— warehousing, retail, healthcare, and beyond.This integrated approach ensures we deliver the durable, high-performance mobility solutions your business demands.

Technical Specifications for Medium Casters

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2.5"	65x32	90	92x64	74x45	80
	3"	75x32	103	92x64	74x45	90
	4"	100x32	128	92x64	74x45	100
	5"	125x32	155	92x64	74x45	110

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	80
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	155	M10x30 / M12x30	110

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	2.5"	65x32	90	M10x30 / M12x30	80
	3"	75x32	103	M10x30 / M12x30	90
	4"	100x32	128	M10x30 / M12x30	100
	5"	125x32	155	M10x30 / M12x30	110
