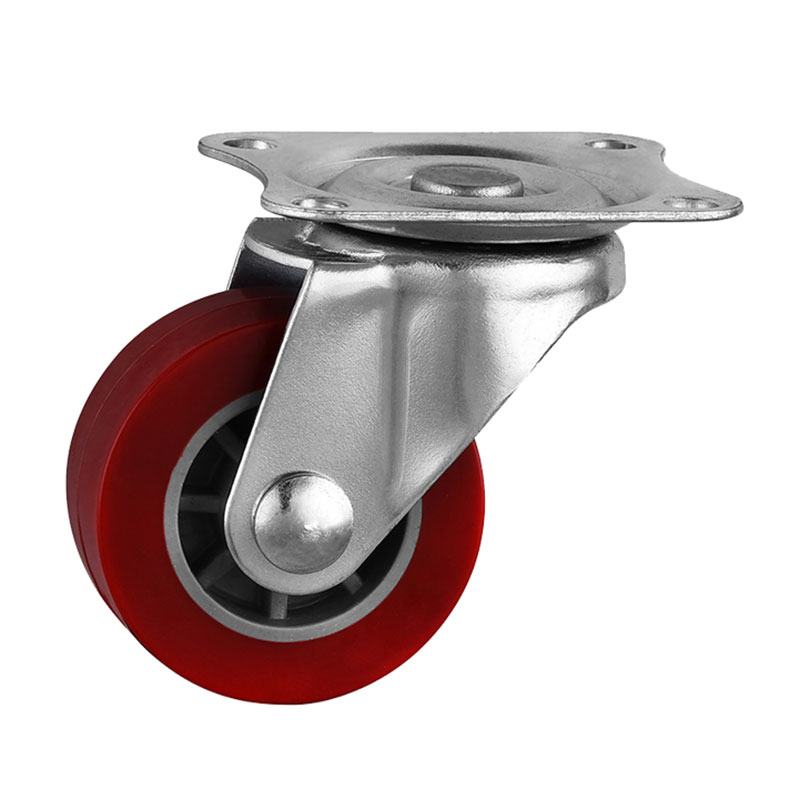

Light Duty Casters Maroon PU Wheels

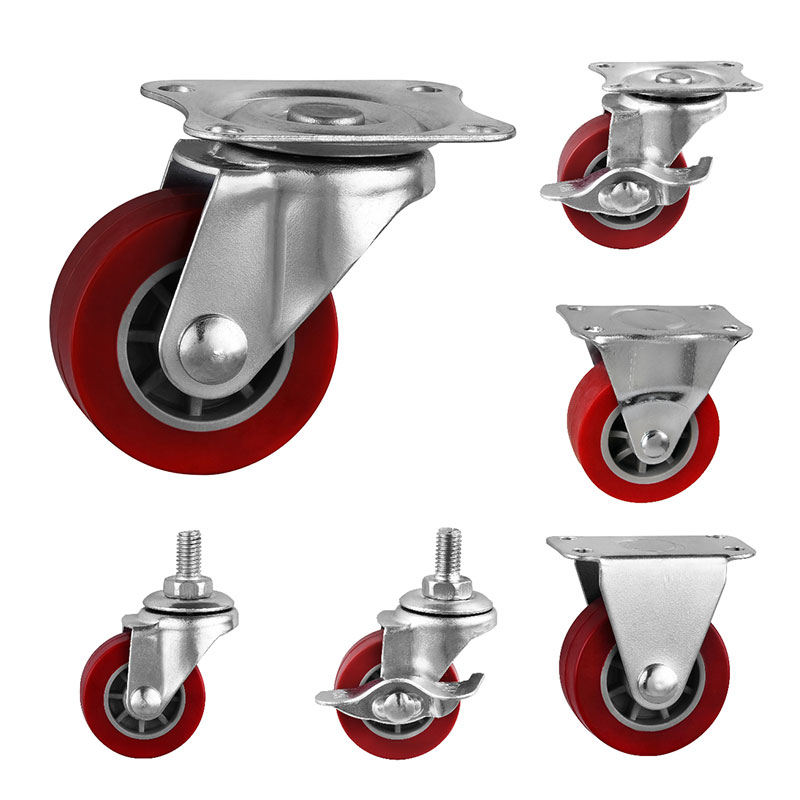

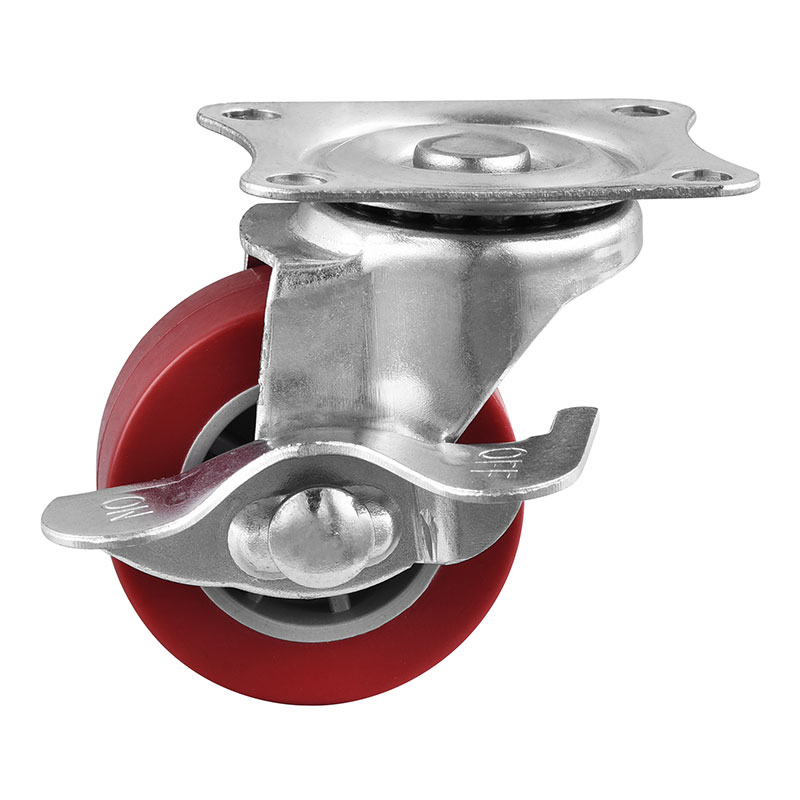

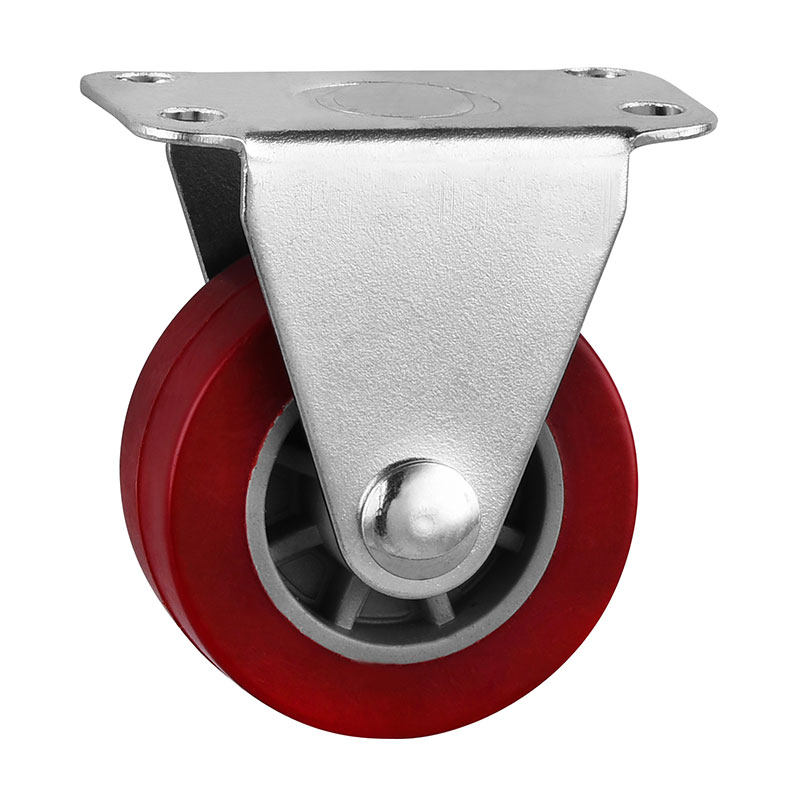

Style: Swivel / Rigid / Swivel with Brake
Size Options: 1 inch/1.25 inch/1.5 inch/2 inch/2.5 inch/3 inch
Load Capicity: 5kg/8kg/20kg/30kg/40kg/50kg

Product Origin: Guangdong, China;
MOQ: 2,000 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

We have specialized in Casters Wheels for more than 10 years and have won the trust of our customers with strong technical support, good quality and service timely and accurate delivery, and have developed into a business pattern of both foreign trade and domestic sales.

Technical Specifications for Light Duty Casters Maroon PU Wheels

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	1"	25x13	34	37x20	29	5
	1.25"	32x13	40	37x20	29	10
	1.5"	40x17	50	46x28	36x15	20
	2"	50x21	65	60x40	45x25	30
	2.5"	65x27	83	70x47	55x28	40
	3"	75x27	92	70x47	55x28	50

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	1"	25x13	34	38x32	30x24	5
	1.25"	32x13	40	38x32	30x24	10
	1.5"	40x17	50	46x38	36x28	20
	2"	50x21	65	58x46	46x35	30
	2.5"	65x27	83	70x58	55x42	40
	3"	75x27	92	70x58	55x42	50

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	1.5"	40x17	50	46x38	36x28	20
	2"	50x21	65	58x46	46x35	30
	2.5"	65x27	83	70x58	55x42	40
	3"	75x27	92	70x58	55x42	50

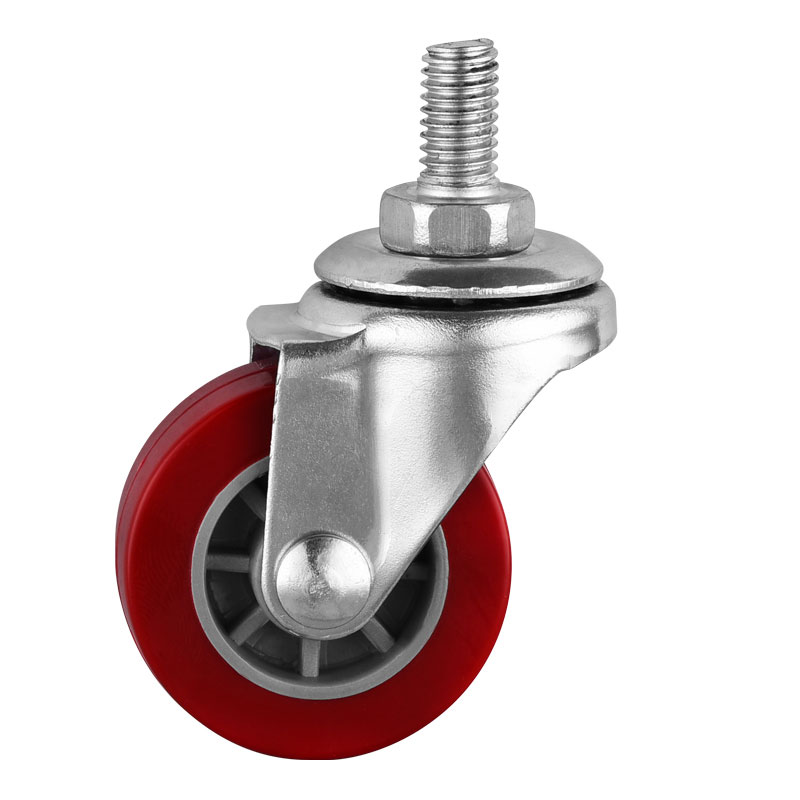

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Load capacity (kg)
	1"	25x13	42	M8x15	5
	1.25"	32x13	45	M8x15	10
	1.5"	40x17	55	M8x15	20
	2"	50x21	70	M8/M10x15	30
	2.5"	65x27	85	M10/M12x25	40
	3"	75x27	96	M10/M12x25	50

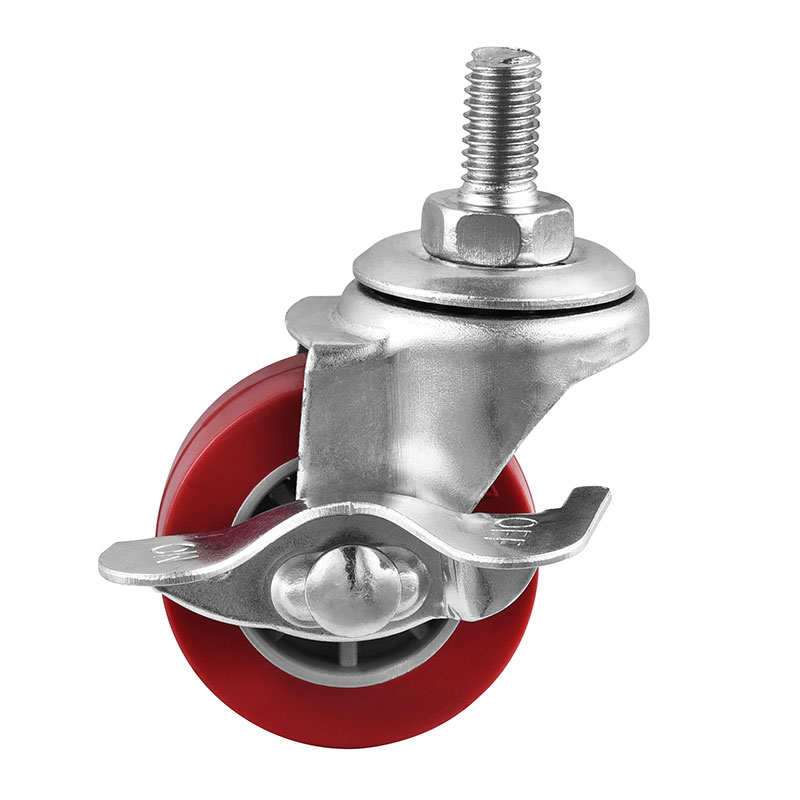

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Load capacity (kg)
	1.5"	40x17	55	M8x15	20
	2"	50x21	70	M8/M10x15	30
	2.5"	65x27	85	M10/M12x25	40
	3"	75x27	96	M10/M12x25	50
