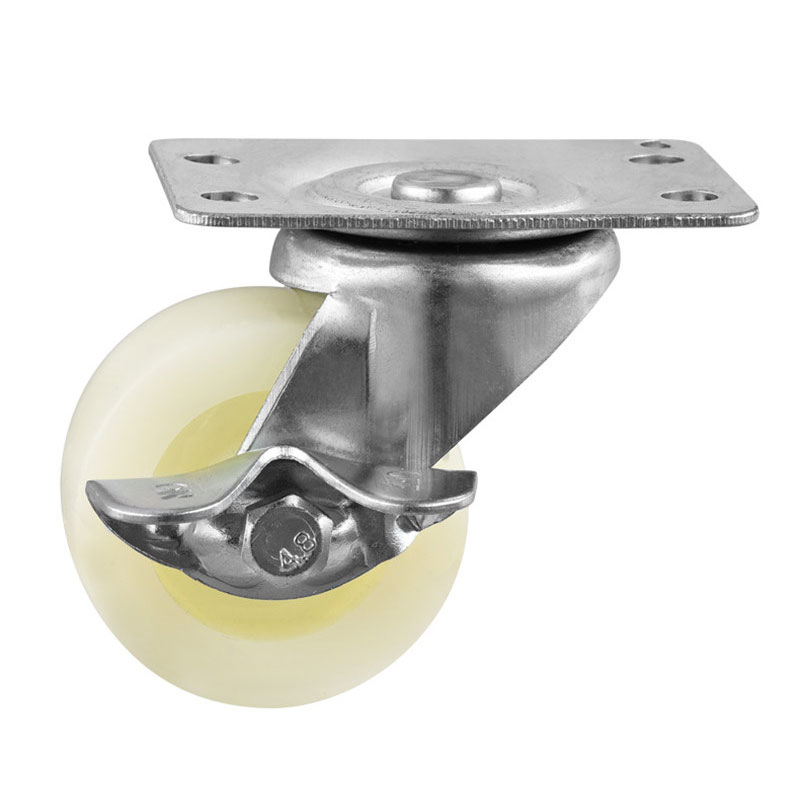

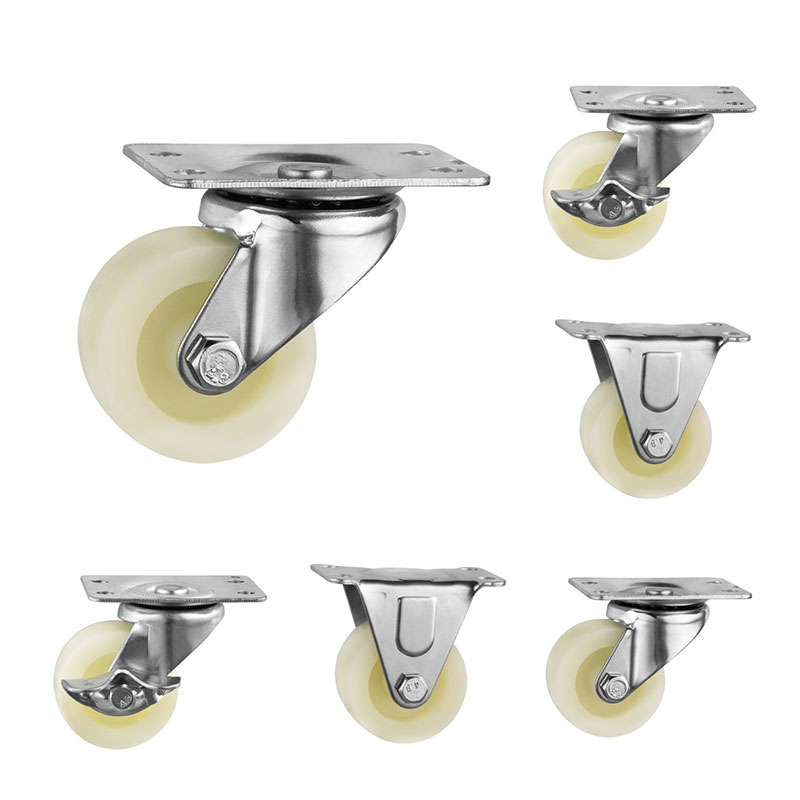

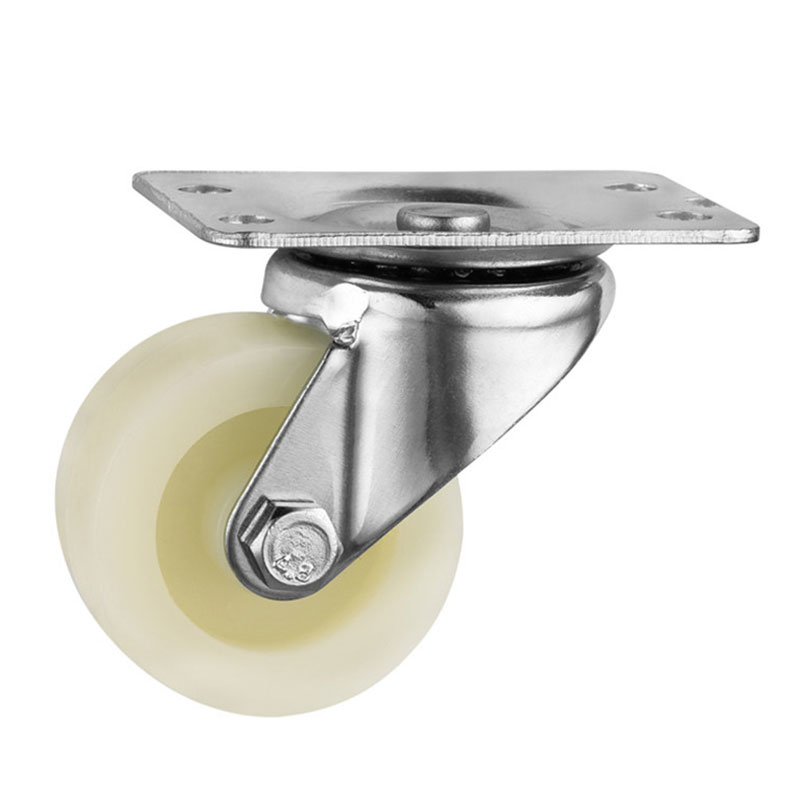

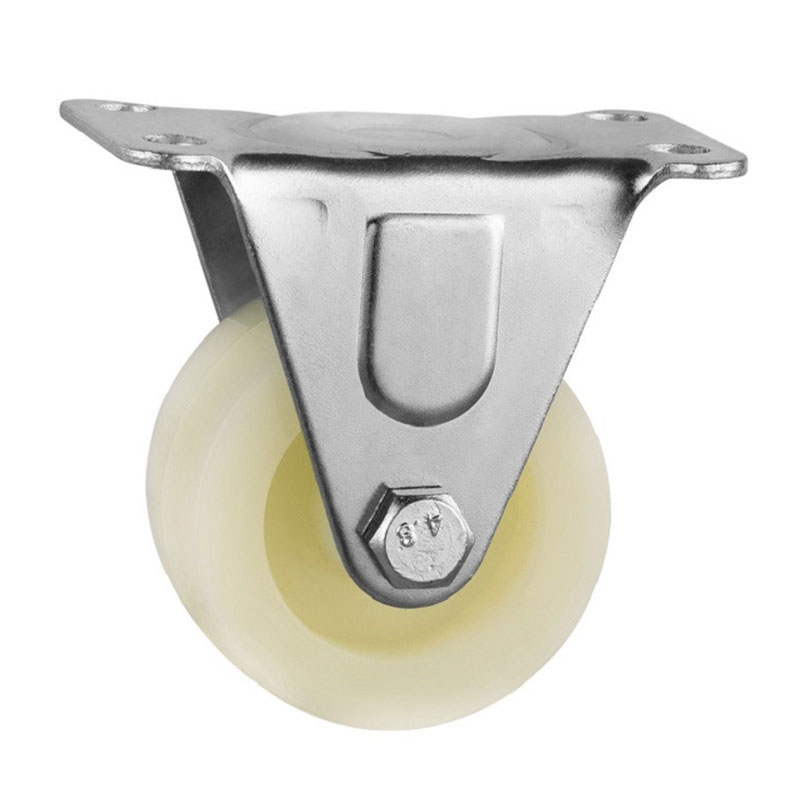

General Duty Casters Polypropylene Wheels

Style: Swivel / Rigid / Swivel with Brake
Size Options: 1.5 inch 2 inch 2.5 inch and 3 inch
Load Capicity: 30kg / 40kg / 50kg and 60kg

Product Origin: Guangdong, China;
MOQ: 2,000 pieces
Loading Port: Guangzhou
Lead Time: 3-4 working days

In recent years, our factory has continuously expanded its production force and further tightened its technical strength, and has formed a benign enterprise operation mechanism. Welcome customers at home and abroad to cooperate sincerely and create brilliance together.

Technical Specifications for General Duty Casters Polypropylene Wheels

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	1.5"	37×24	50	62x44	48×24	30
	2"	46×24	62	65x48	53×24	40
	2.5"	63×28	80	96x67	75×40	50
	3"	75×31	93	105x77	84×58	60

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	1.5"	37×24	50	62x44	48×24	30
	2"	46×24	62	65x48	53×24	40
	2.5"	63×28	80	96x67	75×40	50
	3"	75×31	93	105x77	84×58	60

	Size	Dia x Width (mm)	Load Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load capacity (kg)
	1.5"	37×24	50	61x37	48×23	30
	2"	46×24	62	66x39	53×24	40
	2.5"	63×28	80	99x52	80×25	50
	3"	75×31	93	103x59	83×36	60

Raw Materials + Molds + Stamping

Assembly Workshop

Warehouse

Laboratory
