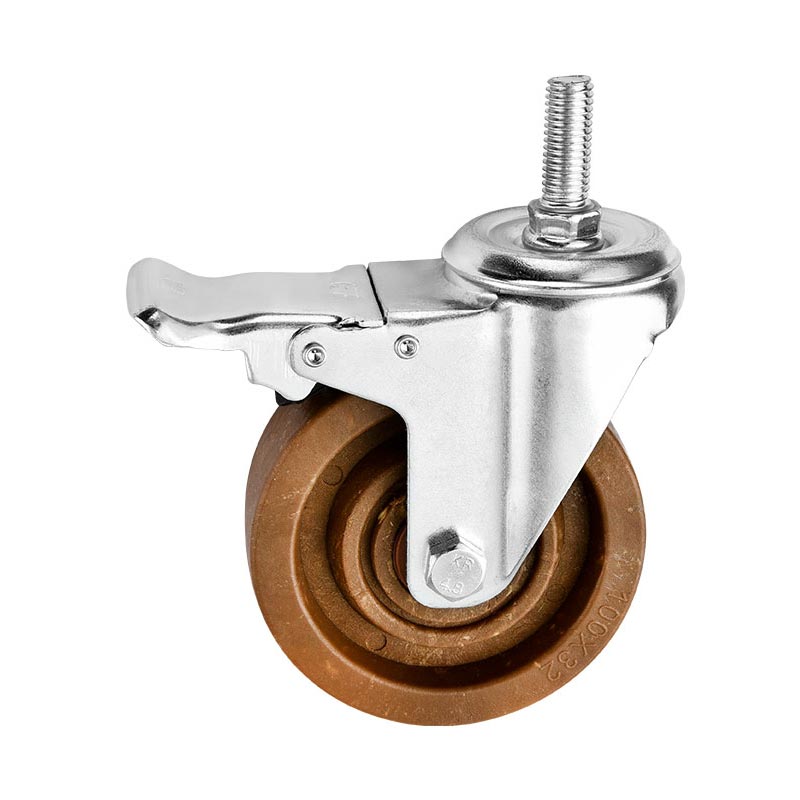

Medium Duty High Temperature Casters 280℃

Manufacturer & factory: CMCL® Casters

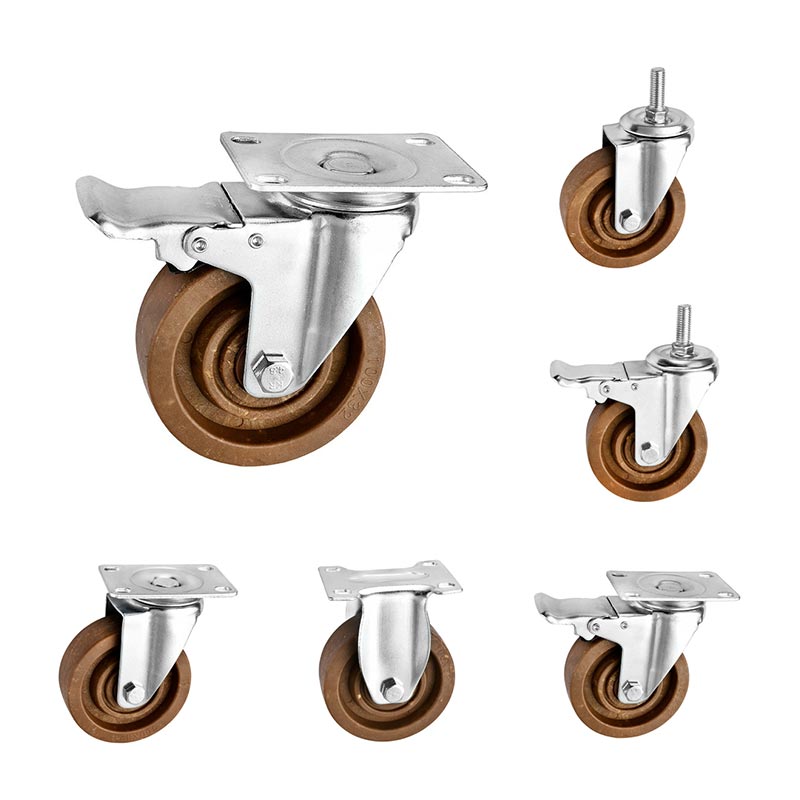

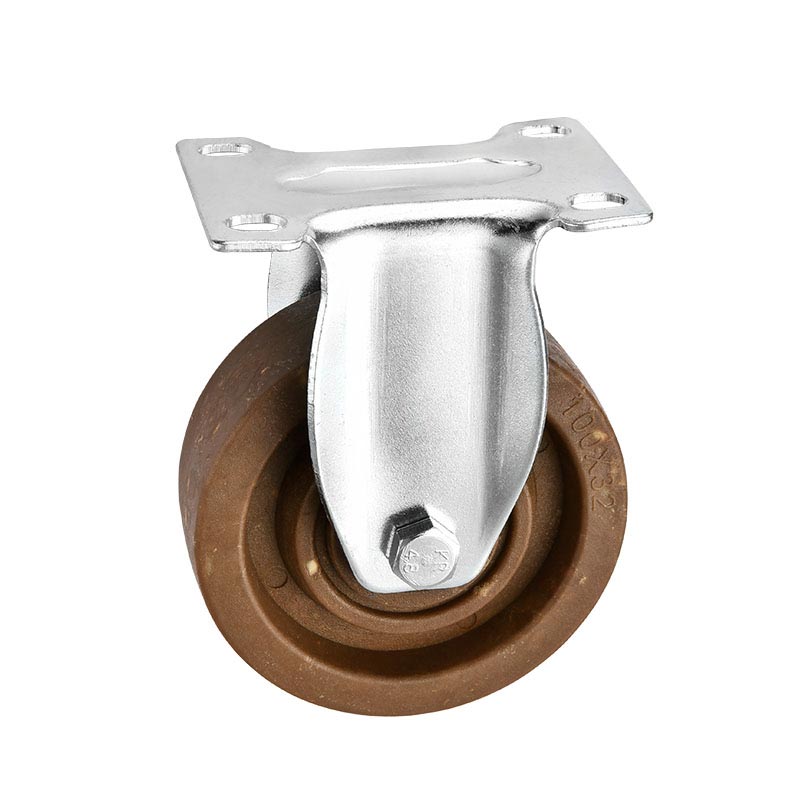

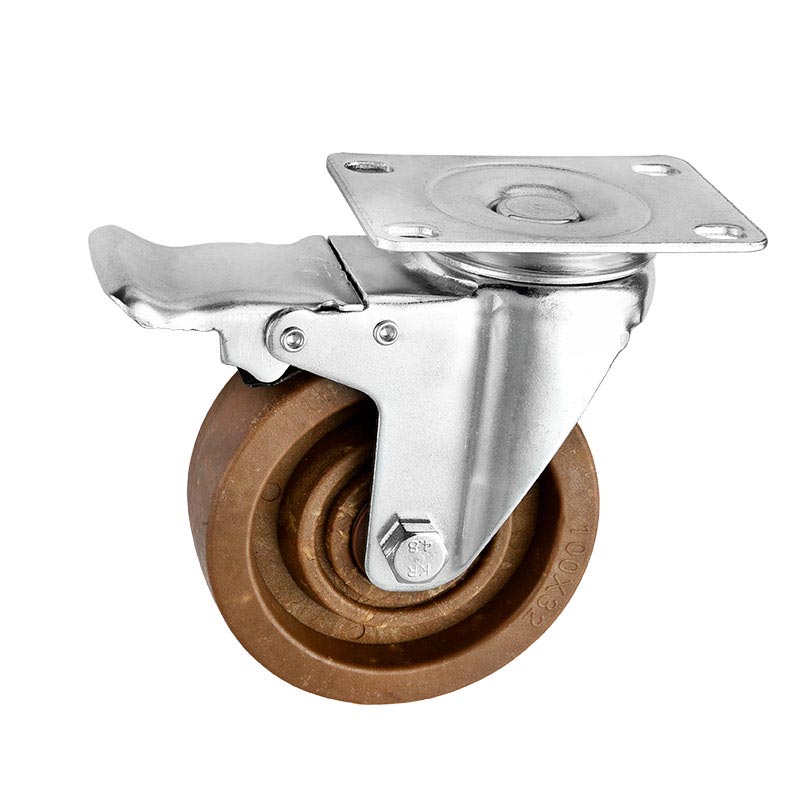

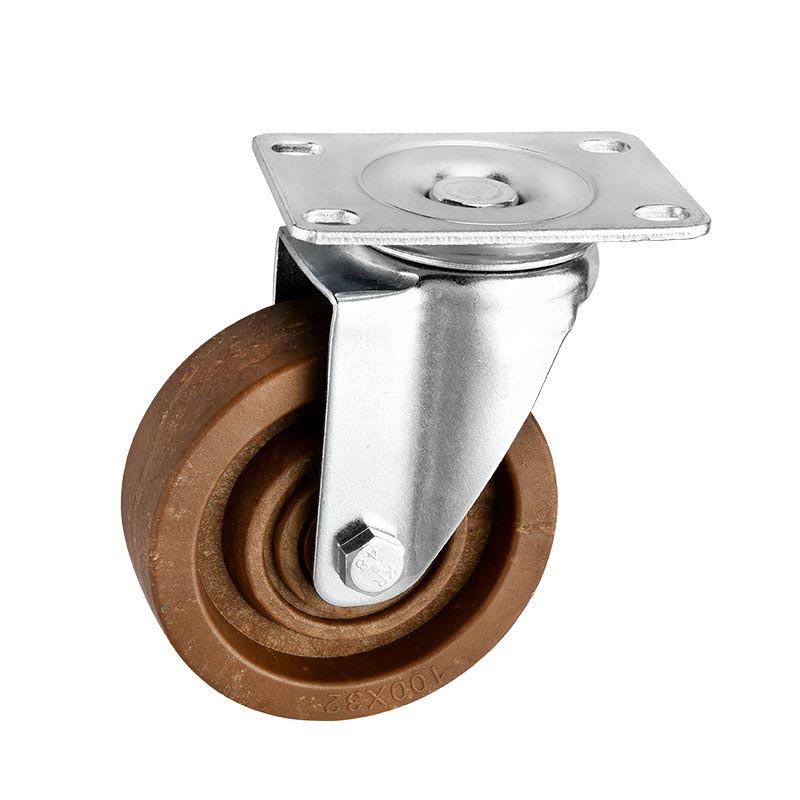

Style: Swivel / Rigid / Swivel with Brake

Size Options: 3 inch / 4 inch / 5 inch

Load Capacity: 100kg / 120kg / 130kg

Single Wheel Material：Glass Filled Nylon

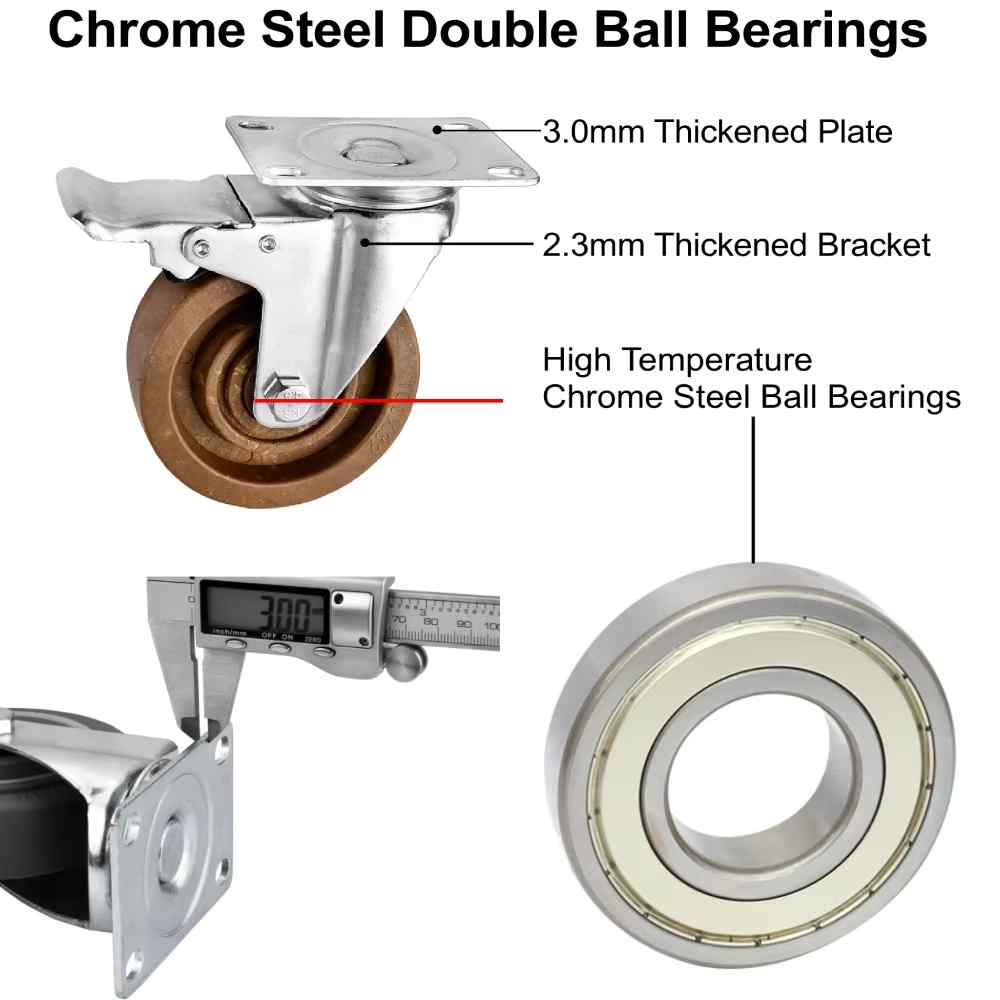

Surface Treatment of Bracket：Galvanized

Primary Application：Commercial Rotary Rack Oven，electric rotisserie oven，Bakery Equipment, Sterilizers, Toasters

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 5-7 working days

CMCL® Casters is Caster Wheels Manufacturer In China.Since 2016, we has been focused on the manufacture and production of  all kind of castor wheels. The advantage of  our location is beneficial for developing our business as we can get the raw material locally at competitive price.

Technical Specifications for Medium Duty High Temperature Casters 280℃

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	3"	75x32	103	92x64	74x45	100
	4"	100x32	128	92x64	74x45	120
	5"	125x32	155	92x64	74x45	130

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	3"	75x32	103	92x64	74x45	100
	4"	100x32	128	92x64	74x45	120
	5"	125x32	155	92x64	74x45	130

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	3"	75x32	103	92x64	74x45	100
	4"	100x32	128	92x64	74x45	120
	5"	125x32	155	92x64	74x45	130

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	3"	75x32	103	M10x30/M12x30	100
	4"	100x32	128	M10x30/M12x30	120
	5"	125x32	155	M10x30/M12x30	130

	Size	Dia x Width(mm)	Load Height(mm)	Stem Size(mm)	Load capacity (kg)
	3"	75x32	103	M10x30/M12x30	100
	4"	100x32	128	M10x30/M12x30	120
	5"	125x32	155	M10x30/M12x30	130
