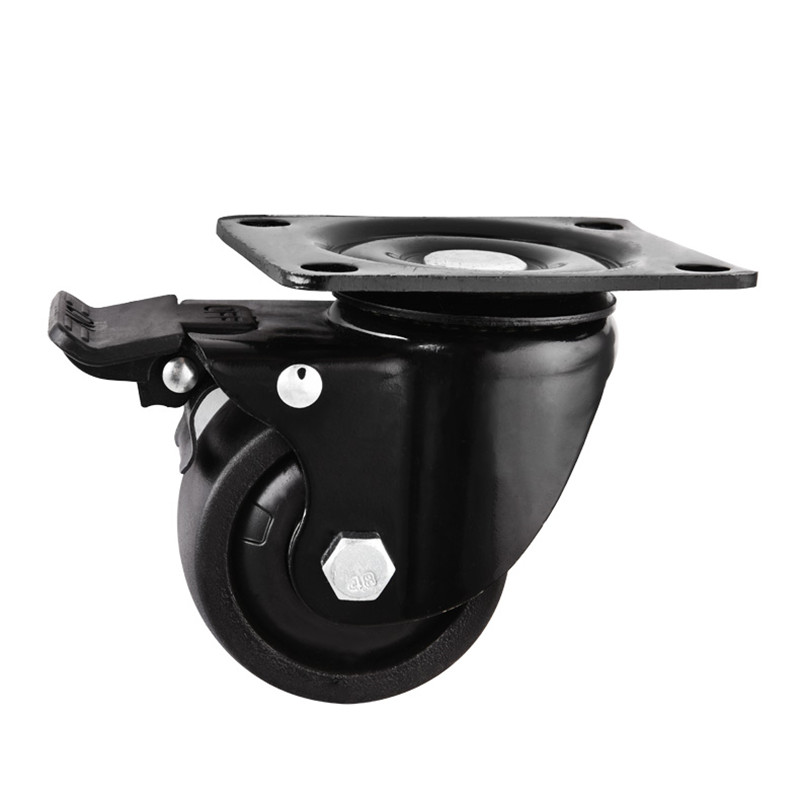

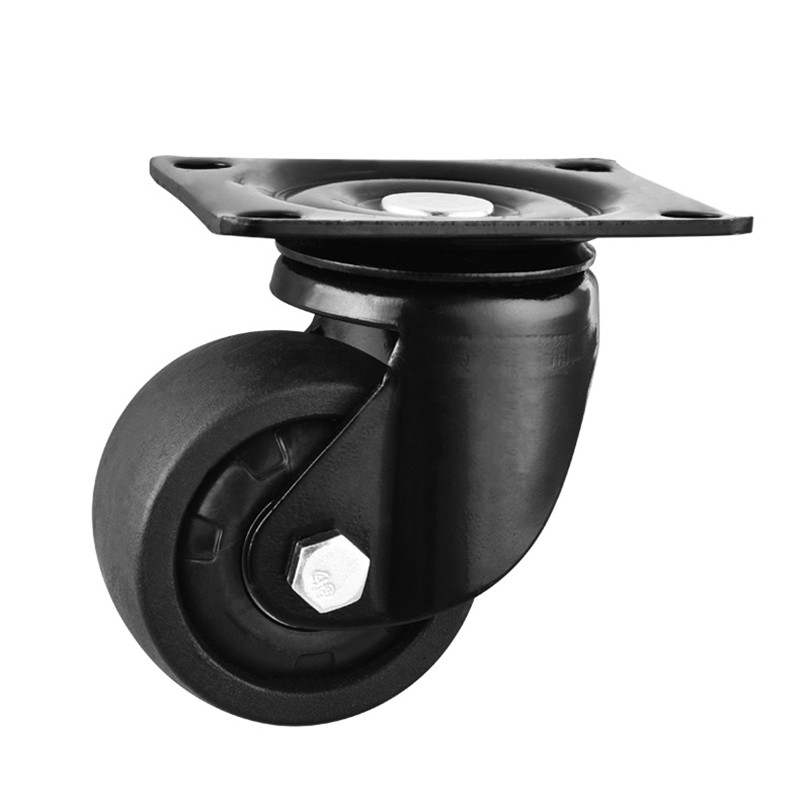

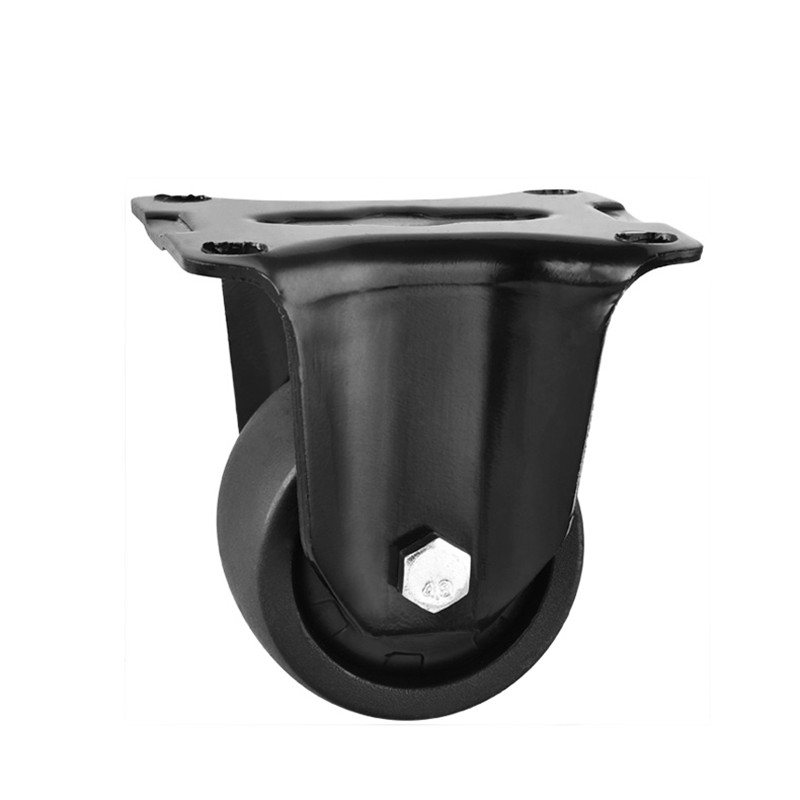

Low Profile Heavy Caster Wheels

Manufacturer & factory: CMCL® Casters
Style: Swivel / Rigid / Swivel with Brake
Size Options: 2 inch / 2.5 inch / 3 inch
Load Capicity: 100kg / 200kg / 250kg
Single Wheel Material：Polyamide (PA)

Product Origin: Guangdong, China ;
MOQ: 1,000 pieces
Loading Port: Guangzhou
Lead Time: 5-7 working days

As China caster suppliers, we build on deep collaboration with our customers, gaining precise insight into the specific requirements of each application scenario, and have earned market trust through customized mobility solutions. Our product range includes the CMCL® certified series, innovative design models, upgraded versions, and Low Profile Heavy Caster Wheels. The CMCL casters are certified to ISO 9001:2015, ensuring reliable quality, while the low profile casters focus on minimizing installation height, making them ideal for stable movement in confined spaces such as heavy energy storage equipment and RV conversions. We adhere to the principle of "matching the right product to each need," selecting the most suitable wheel configuration for every unique operating condition to guarantee both load safety and mobility flexibility.

Technical Specifications for Low Profile Heavy Caster Wheels

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2"	50x32	70	72x55	53x36	100
	2.5"	65x40	93	95x68	74x45	200
	3"	75x45	105	1105x80	83x60	250

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2"	50x32	70	72x55	53x36	100
	2.5"	65x40	93	95x68	74x45	200
	3"	75x45	105	105x80	83x60	250

	Size	Dia x Width(mm)	Load Height(mm)	Plate Size(mm)	Hole Spacing(mm)	Load capacity (kg)
	2"	50x32	70	72x55	53x36	100
	2.5"	65x40	93	95x68	74x45	200
	3"	75x45	105	105x80	83x60	250
